Every small shop hits the same wall eventually. You clamp a board, line up a bit, and the moment the bit bites, it walks off the mark. Then you stack four identical shelf-pin holes and find that three of them landed in slightly different places. A handheld drill cannot fix either problem. A benchtop drill press can, and it fits on a bench instead of eating the floor space a small shop does not have.
That is the whole argument for the best benchtop drill presses for small shops: square, repeatable holes in a footprint you can bolt to a workbench and push aside when the project is done. What you give up is capacity. A bench press handles dowel joints, hinge mortises, shelf-pin lines, pen blanks and light sheet metal beautifully, and it will not handle a 4-foot oak table leg.
We compared eight machines against the published specifications and thousands of owner reports, then sorted them by the one spec that decides whether a press is any good: motor amperage. That is deliberate, because the loudest complaint in every woodworking forum is that most small bench presses are underpowered, and because spec sheets across brands look nearly identical until you check the amps. If you want the short version, the drill bit sets we tested pair well with any of the presses below.
Table of Contents
What Is a Benchtop Drill Press?
A benchtop drill press is a bench-mounted drilling machine with a vertically driven spindle and a chuck that grips drill bits. You clamp the workpiece in a vise on the worktable, set the speed, and pull the quill handle to bring the spinning bit straight down into the material.
It exists because it produces three things a handheld drill cannot: a hole square to the face of the workpiece, a hole at an exact repeated depth, and a hole in the same place every single time. That geometry is what dowel joints, cabinet hinge mortises, flat-bottomed Forstner holes, and batches of identical parts all depend on. It is also why a press earns its bench space even in a one-car garage.
Typical work: drilling small production parts, jig and fixture work, pen turning, small craft and jewelry work, and light metal brackets. If you regularly drill the centre of workpieces wider than 13 inches, or cut thick steel, you want a floor press or a magnetic drill instead.
Top 3 Benchtop Drill Presses for Small Shops in 2026
The three machines below cover the three sensible answers to “which benchtop drill press should I buy,” spanning the 8-inch compact, 10-inch workhorse and 12-inch heavy-build classes.
WEN 4206T 8-Inch 5-Speed
- Cast iron build
- 2.3A induction motor
- 750-3200 RPM
- 45 degree tilting table
SKIL DP9505-00 10-Inch 5-Speed
- 6.2A motor
- 610-2800 RPM
- laser alignment
- LED light
- 3 year warranty
JET JWDP-12 12-Inch Variable Speed
- 0.5 HP
- 530-3100 RPM on the fly
- XACTA laser
- 85 lb cast iron and steel
WEN 4206T is the default answer. It is the best benchtop drill press for a small shop because the cast iron table and base stay rigid, the 23-inch height fits a cramped bench, and 797 owners have rated it 4.6 out of 5. It is a wood-first machine and it tells you so honestly.
SKIL DP9505-00 is the one to buy if you split your time between wood and metal. Its 6.2 amp induction motor is more than double the current in most 10-inch competitors, and it ships with a laser, an LED light and a three-year warranty.
JET JWDP-12 is the durability play. Cast iron and steel construction, sixteen speed settings from 530 to 3100 RPM without touching a belt, and the build rigidity that owners with decades of tool experience rate as genuinely professional. It weighs 85 lb and costs the most of the three.
Best Benchtop Drill Presses for Small Shops (October 2026)
This table lists every press in the roundup with the specs that actually change the outcome. Read the amperage column first: anything under 3 amps is a woodworking machine, anything at 6.2 amps can take a bite out of metal.
| Product | Specifications | Action |
|---|---|---|
| WEN 4206T 8-Inch 5-Speed |
|
Check Latest Price |
| SKIL DP9505-00 10-Inch 5-Speed |
|
Check Latest Price |
| JET JWDP-12 12-Inch Variable Speed |
|
Check Latest Price |
 BUCKTOOL 12-Inch Variable Speed |
|
Check Latest Price |
 BUCKTOOL 10-Inch 5-Speed |
|
Check Latest Price |
 WEN DP1263V 12-Inch Variable Speed |
|
Check Latest Price |
 VEVOR 8-Inch 5-Speed |
|
Check Latest Price |
 WOODSKIL 8-Inch 5-Speed Laser |
|
Check Latest Price |
Two things stand out. Only three machines here run 6.2 amps or more, and those are the three that can drill metal without stalling. Only two carry a manufacturer warranty of three years or better, and warranty length is usually a decent proxy for how a company expects its parts department to hold up.

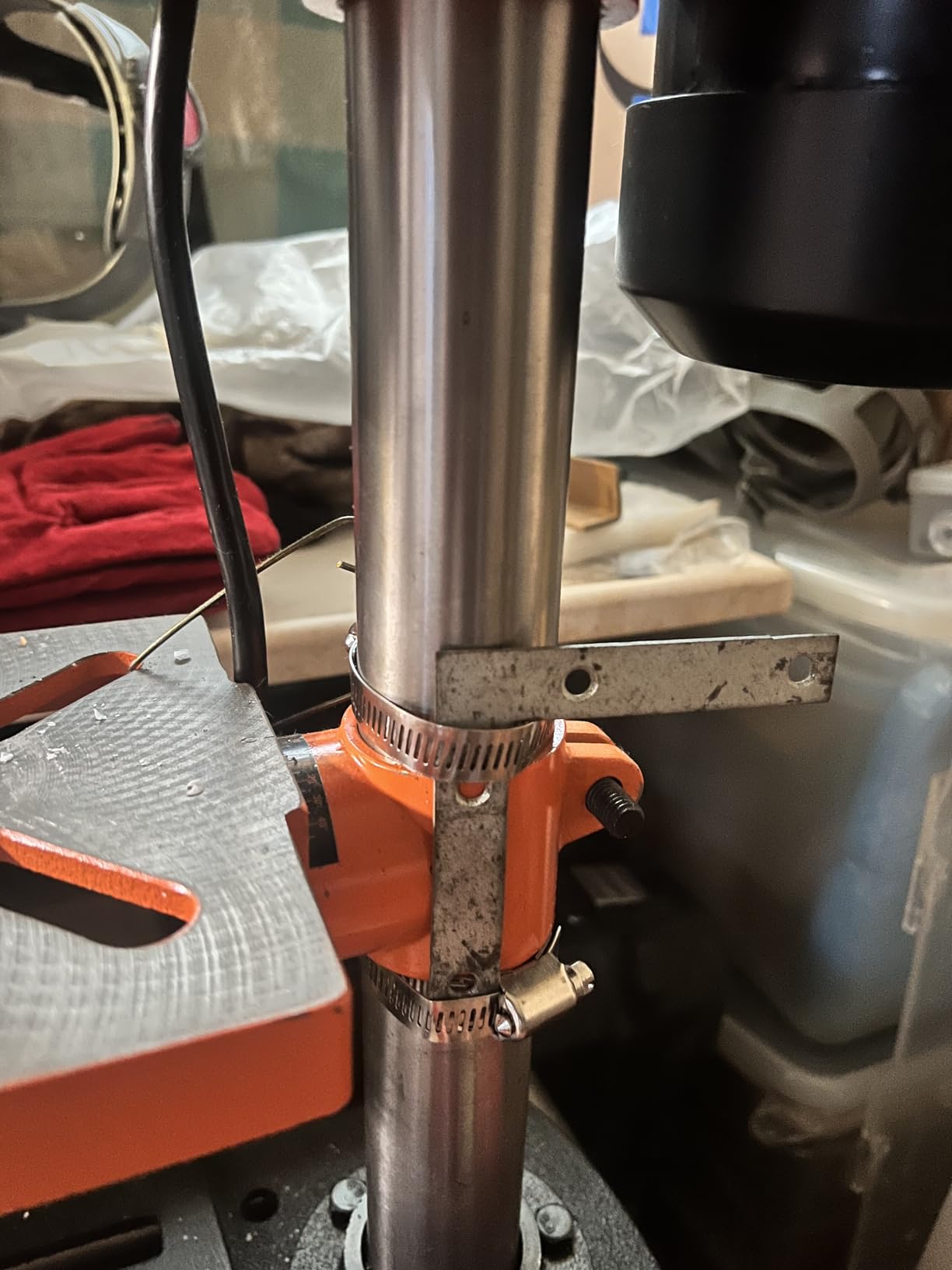

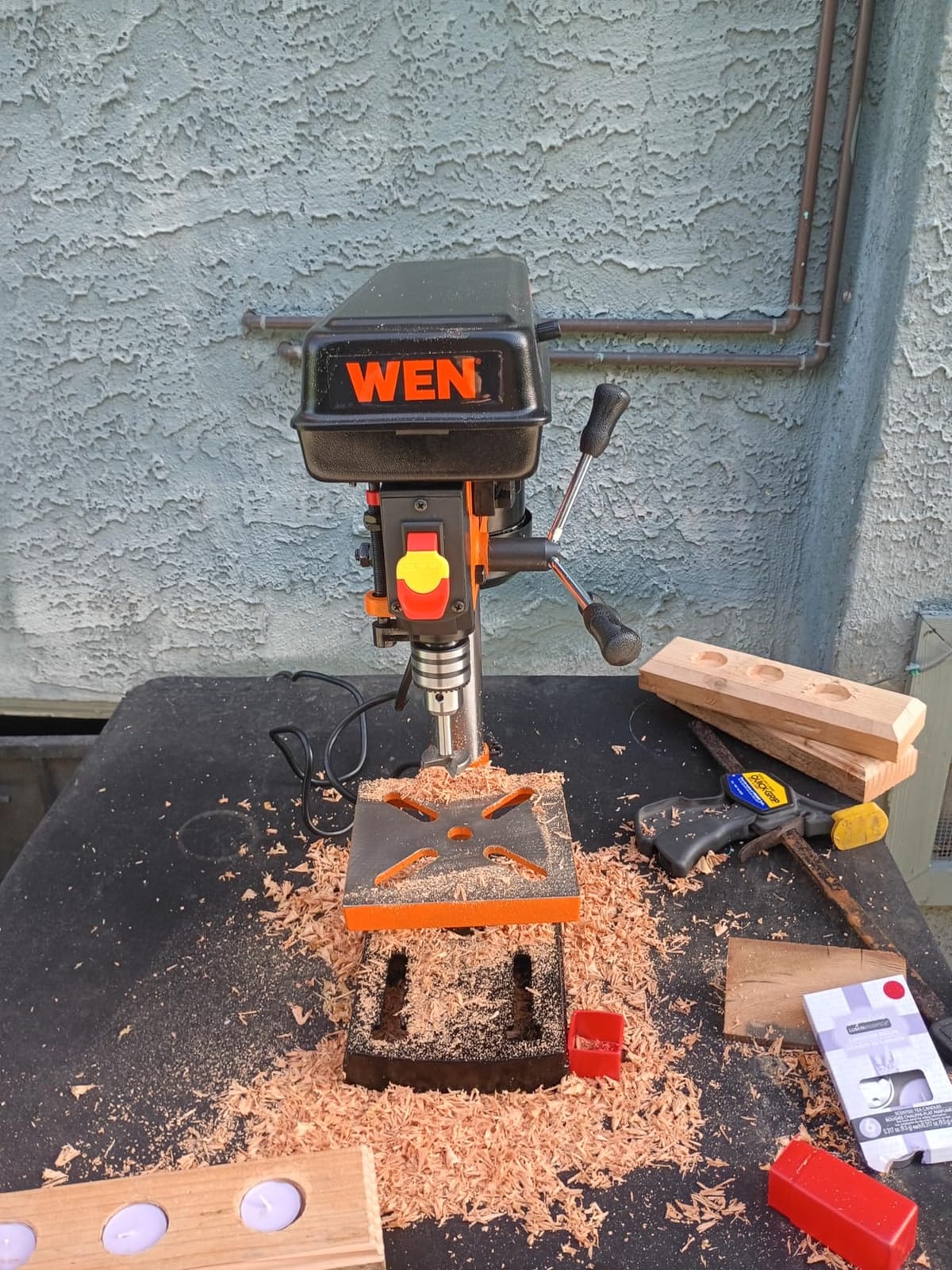

1. WEN 4206T 8-Inch 5-Speed Cast Iron Press – The Best All-Rounder
WEN 2.3-Amp 8-Inch 5-Speed Cast Iron Benchtop Drill Press (4206T)
2.3A induction motor
8 in swing
2 in spindle travel
5 speeds 750-3200 RPM
32 lb
Pros
- Cast iron table and base stay rigid
- Quiet induction motor
- Compact 23 inch height suits a small bench
- Keyed chuck with onboard key storage
- Table bevels 45 degrees each way
Cons
- Light 32 lb build can shift under side load
- 2.3A motor struggles with large bits in hardwood
- No T-slots on the table
- 8 inch swing limits large stock
We kept coming back to this press because it does the boring things right. The cast iron table and base do not flex when you lever the quill handle down, which is the single biggest accuracy killer on lighter machines. Height adjustment is smooth and the bevel locks hold at 45 degrees in either direction.
The five speeds are 750, 1100, 1500, 2100 and 3200 RPM, and the induction motor runs cool and quiet enough to use in a garage attached to living space. It is a wood machine, and at 2.3 amps it is honest about that.
The 2-inch spindle travel is the practical minimum for woodworking, and the 8-inch swing covers dowel joints, hinge mortises, small shelf-pin lines and pen work without any drama. The table is 6.5 by 6.5 inches, so anything larger needs a board clamped down alongside it.
Owners report a light machine that can creep across a bench under side load, particularly with a large bit leaning on the work. Bolt it down and that disappears. Two other things worth knowing: the chuck is a 1/2-inch keyed model with the key stored on the machine, and the table has no T-slots, so a standard drill press vise needs an adapter.
Who the WEN 4206T suits
A small shop that mostly works in wood, has a bench it can bolt a machine to, and needs more accuracy than a handheld drill offers. It is also the machine I would put in a spare room or a one-car garage, because 23 inches tall and 32 lb means it can live on a shelf between projects.
Who should skip the WEN 4206T
Anyone cutting steel or aluminium on a regular basis. At 2.3 amps and 0.5 inch listed drilling capacity, the motor will bog down and overheat before a Forstner bit finishes cutting hardwood, let alone mild steel. Owners who bought it expecting metal work are the source of most of the complaints in its reviews.

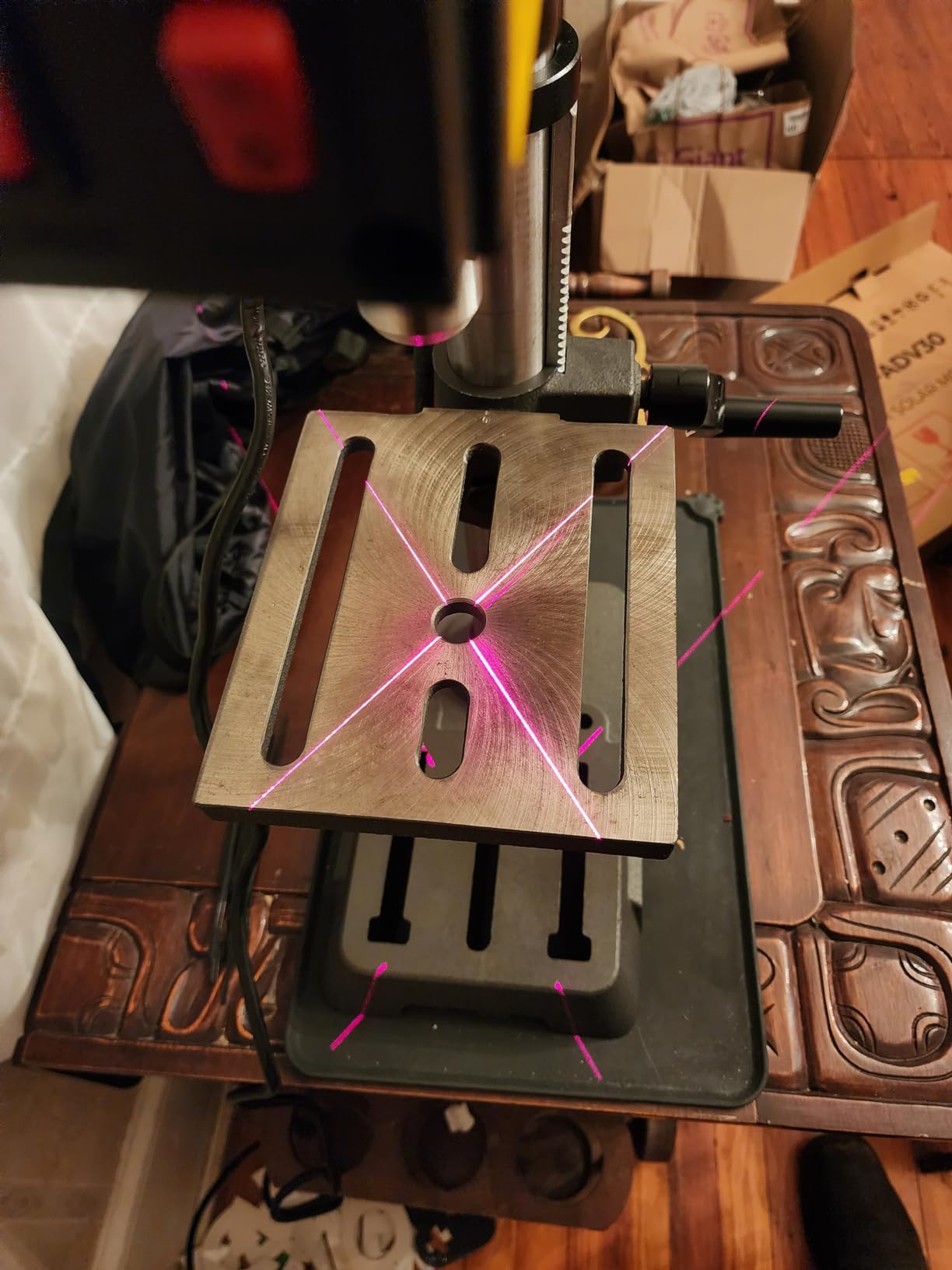

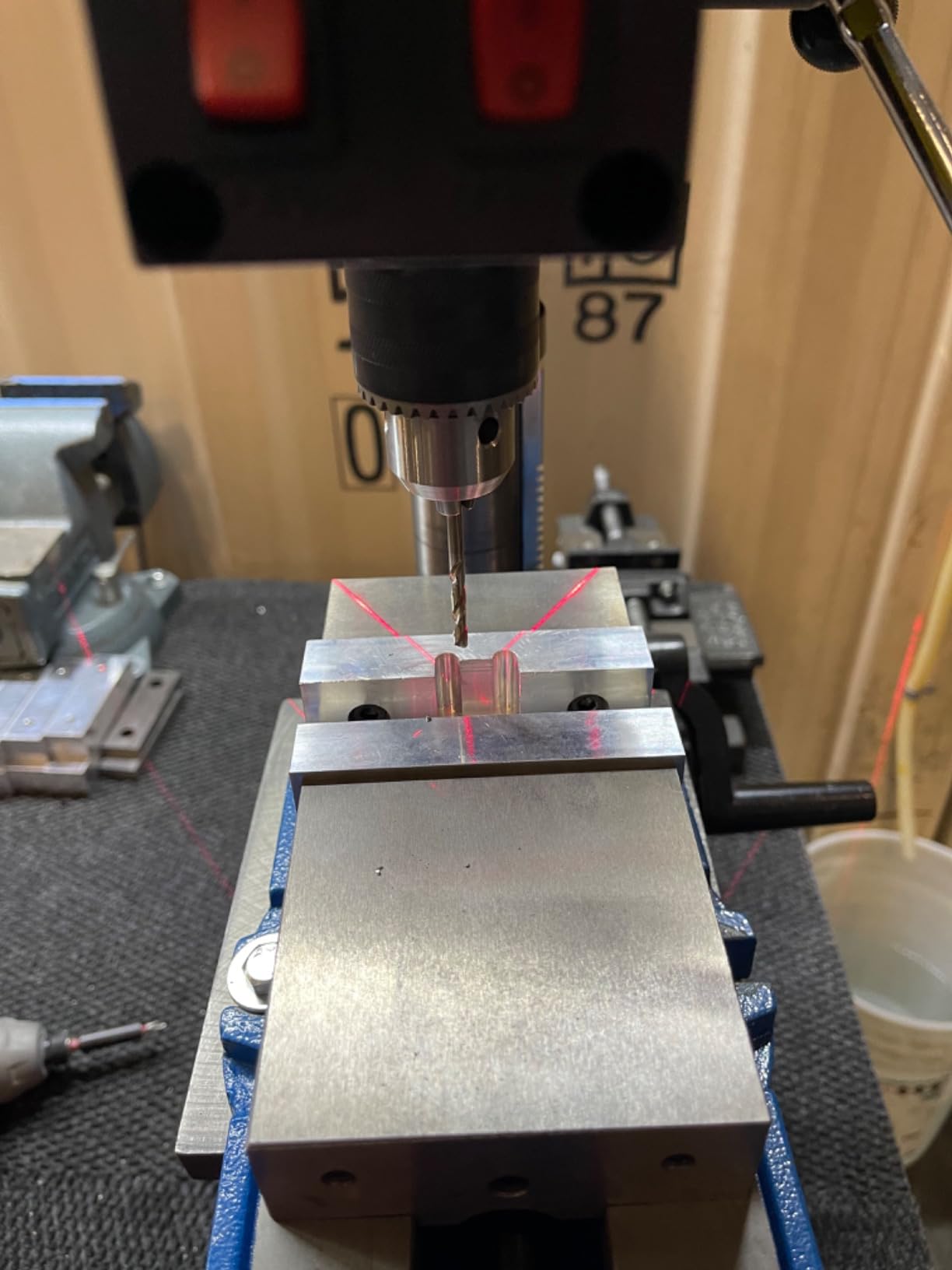

2. SKIL DP9505-00 10-Inch 5-Speed – The One Built for Metal
SKIL 6.2 Amp 10 In. 5-Speed Benchtop Drill Press with Laser Alignment & Work Light – DP9505-00
6.2A induction motor
10 in swing
5 speeds 610-2800 RPM
Laser and LED
3 year warranty
Pros
- 6.2A motor outclasses most 10 inch presses
- Laser and LED both useful out of the box
- Table bevels 0 to 45 degrees both ways
- Adjustable depth stop for repeat holes
- Three year limited warranty
Cons
- Table wanders during height adjustment
- Rack can be finicky to lock down
- Supplied chuck shows slight runout at full extension
- Only two hex wrenches included
This is the press to buy if your small shop does any metalwork at all. A 6.2 amp induction motor delivering 744 watts is roughly triple what most 10-inch presses offer, and the difference shows up the moment you put a twist drill into mild steel and feed it steadily instead of leaning on it.
The five speeds run from 610 to 2800 RPM. That low end is the useful part for metal, because slow, steady feed with cutting fluid is what keeps a bit from burning and breaking.
Assembly takes roughly 15 to 30 minutes, and two hex wrenches are all you need for most of it, but only two are in the box. Owners often report adding the missing sizes before they start. The laser alignment system and the LED work light both work out of the gate and both earn their keep on small metal brackets.
Now the honest part. The table can wander during height adjustment, so the laser is not a luxury, it is a necessity on this machine. The rack and pinion support can wiggle slightly until it is fully locked down, and some machines arrive with a table that is not square to the spindle with a zeroing bolt that is hard to loosen. Owners also report slight runout in the supplied chuck, which shows up as a fraction of an inch of wander at full quill extension.
When the SKIL DP9505 earns its bench space
Any small shop that alternates between wood and metal in the same session. The 10-inch swing handles cabinet hardware and shelf-pin lines, and the 6.2 amps handle aluminium, thin mild steel and larger wood bits that would stall a 2.3 amp machine.
The three-year limited warranty is the longest in this group alongside JET, and SKIL has been building press drills for long enough that parts and service are not a gamble.
When it is the wrong choice
If precision above all else matters, the 4.3 rating and the runout and square-table reports should give you pause. A dial indicator test on a production part will tell you quickly whether the chuck is acceptable for your tolerance, and many owners replace the supplied chuck within the first year.
It is also too tall and wide for a shallow shelf press, at 24 inches long by 15 inches wide. Check your bench depth before you commit.

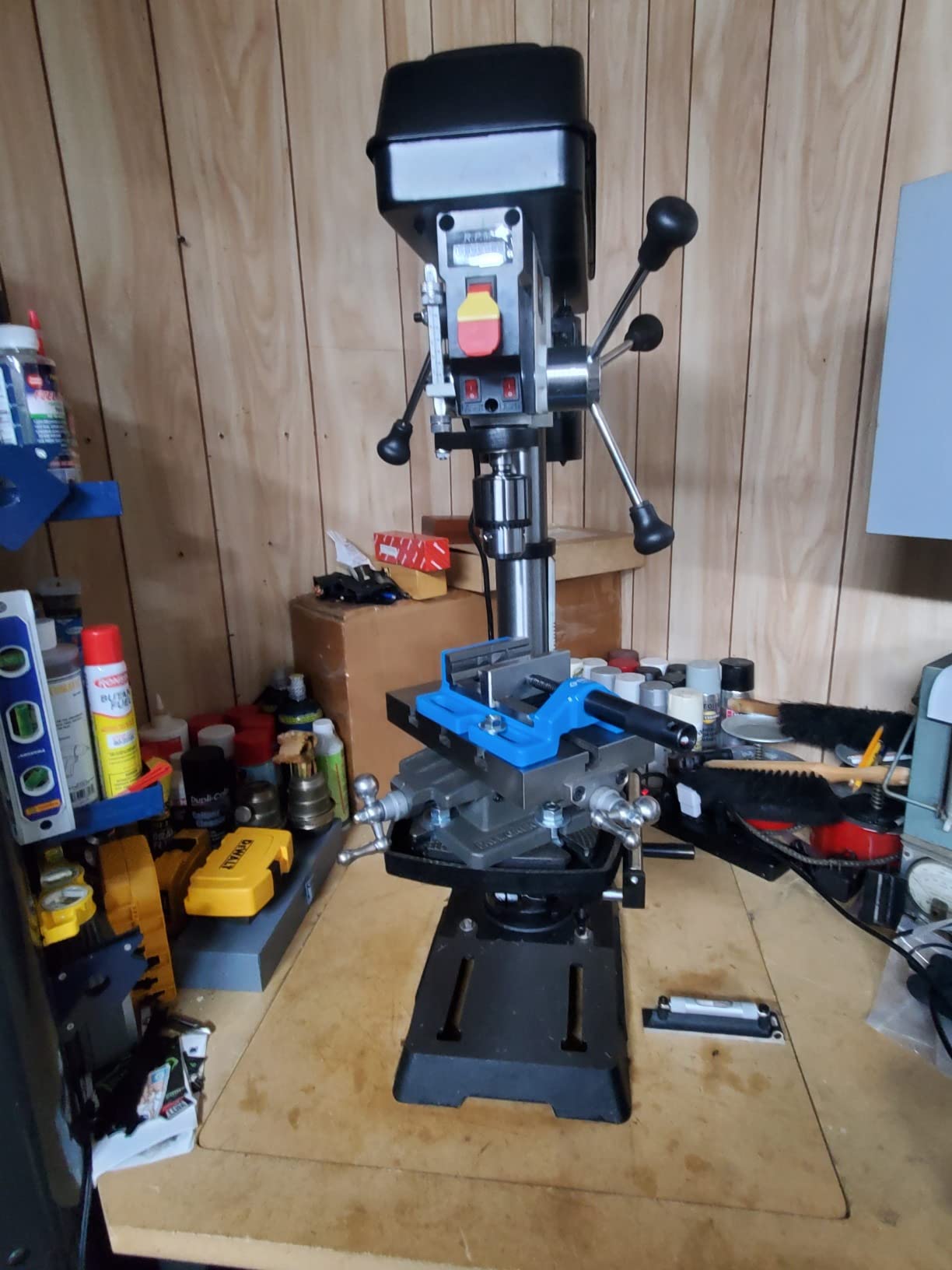

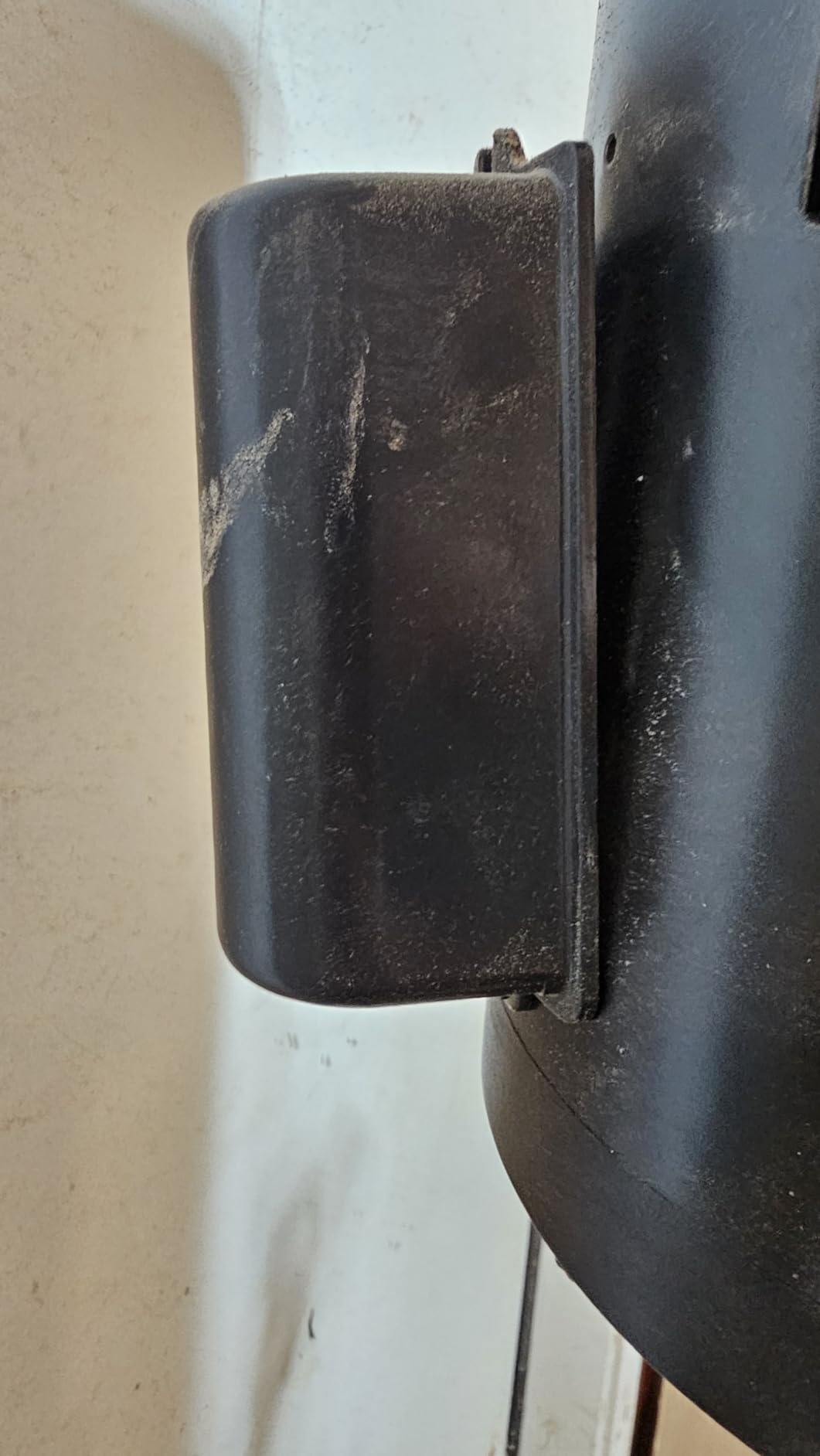

3. JET JWDP-12 12-Inch Variable Speed – The One Built to Outlast You
JET 12-Inch Benchtop Drill Press, Variable Speed, 1/2 HP, 115V 1Ph (Model JWDP-12)
0.5 HP variable drive
530-3100 RPM across 16 speeds
85 lb
XACTA laser
5 year warranty
Pros
- Sixteen speeds changed on the fly without moving belts
- Cast iron and steel build is markedly rigid
- XACTA laser accurate with little adjustment
- Linear depth scale and retractable roller extension
- Table post accepts cross-slide vises from other brands
Cons
- 0.5 HP bogs on large hole saws
- Spindle spline can rattle until greased
- Table will not go to a full 90 degrees
- Gear track attaches at the column base only
- Some machines report loosened hardware and motor overheating
Everything else on this list is a machine you can replace. The JET is the one you buy once. Cast iron and steel construction gives it a rigidity that lighter presses cannot approach, and at 85 lb it bolts to a bench and stays put through a hole saw cut without creeping.
The variable speed drive covers 530 to 3100 RPM across sixteen settings, adjusted on the fly with a lever. No belts, no covers, no stopping to reconfigure when you switch from a dowel bit to a metal drill.
The X-shaped XACTA laser is accurate enough that owners report setting it once and forgetting it, which is not something we could say about most laser guides in this price bracket. A linear scale with a depth stop and a retractable roller extension make repeated depths quick, and the oversized knobs are genuinely easier to grip with oily hands.
Two practical notes. The 0.5 hp motor is underpowered for large hole saws and needs a slow feed to clear shavings, and the spindle spline can develop clearance that produces a rattling noise at certain speeds until it is greased. It is a five-year warranty for home use, dropping to two years for commercial or industrial work.
Why the JET JWDP-12 is worth the money
If your bench is your shop, this machine earns its place. The build quality is what makes accuracy repeatable over years rather than months, and the variable speed means you can set 900 RPM for aluminium without stopping the job.
Owners with long careers in tools rate it as professional-grade equipment, and the table post accepts cross-slide vises from other manufacturers, so you are not locked into one accessory brand.
Where it falls short
The table cannot be set to a full 90 degrees, so it will not drill straight down into a workpiece the way some presses can. The table raise and lower gear track attaches only at the column base, so there is a little play at the top of travel.
It is also 37 inches tall and 85 lb, which means you need a solid bench with real load capacity, not a folding table. A handful of owners report loosened hardware and motor overheating after 10 to 15 minutes of continuous use, which is worth raising with JET if you hit it.

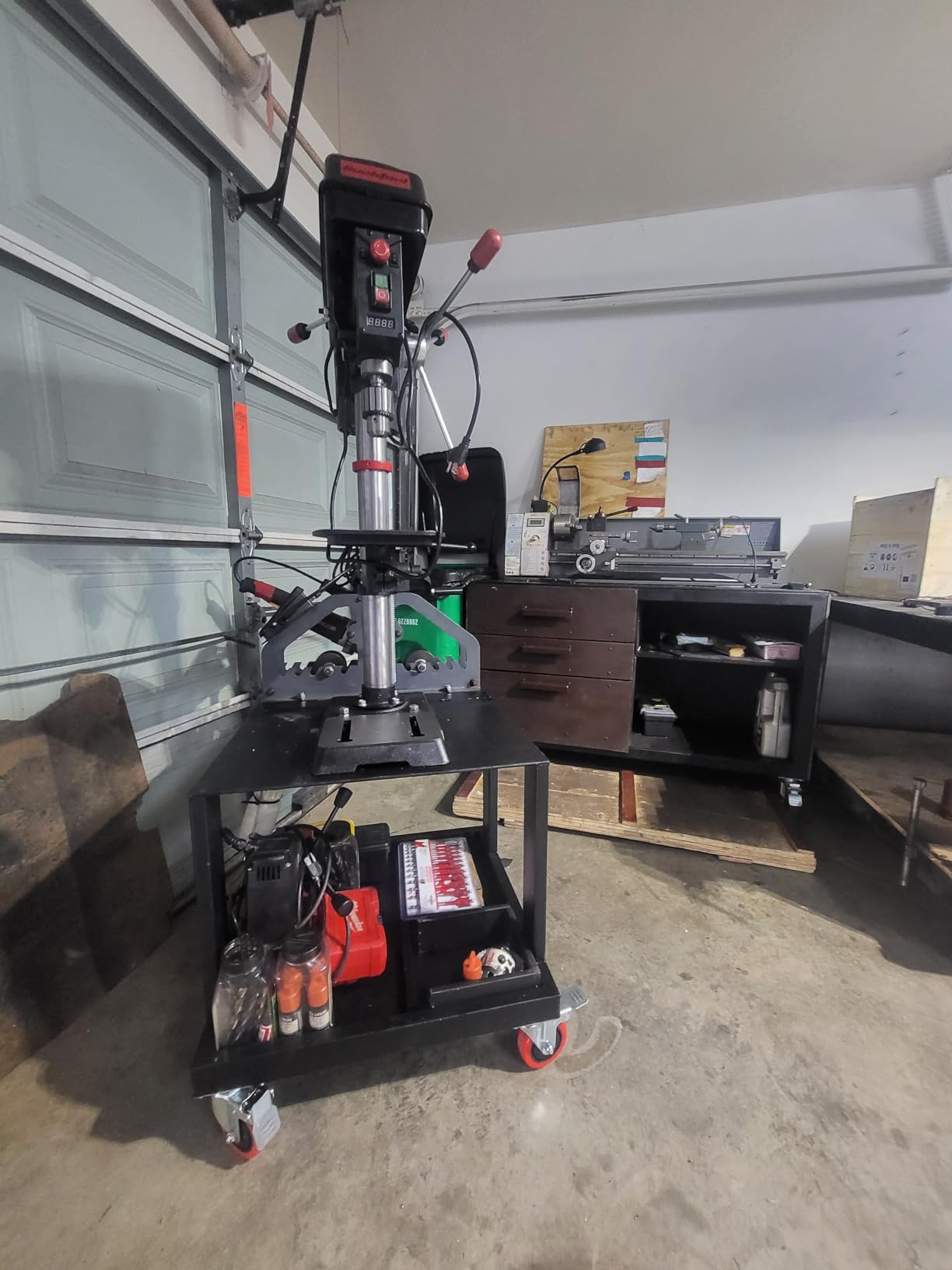

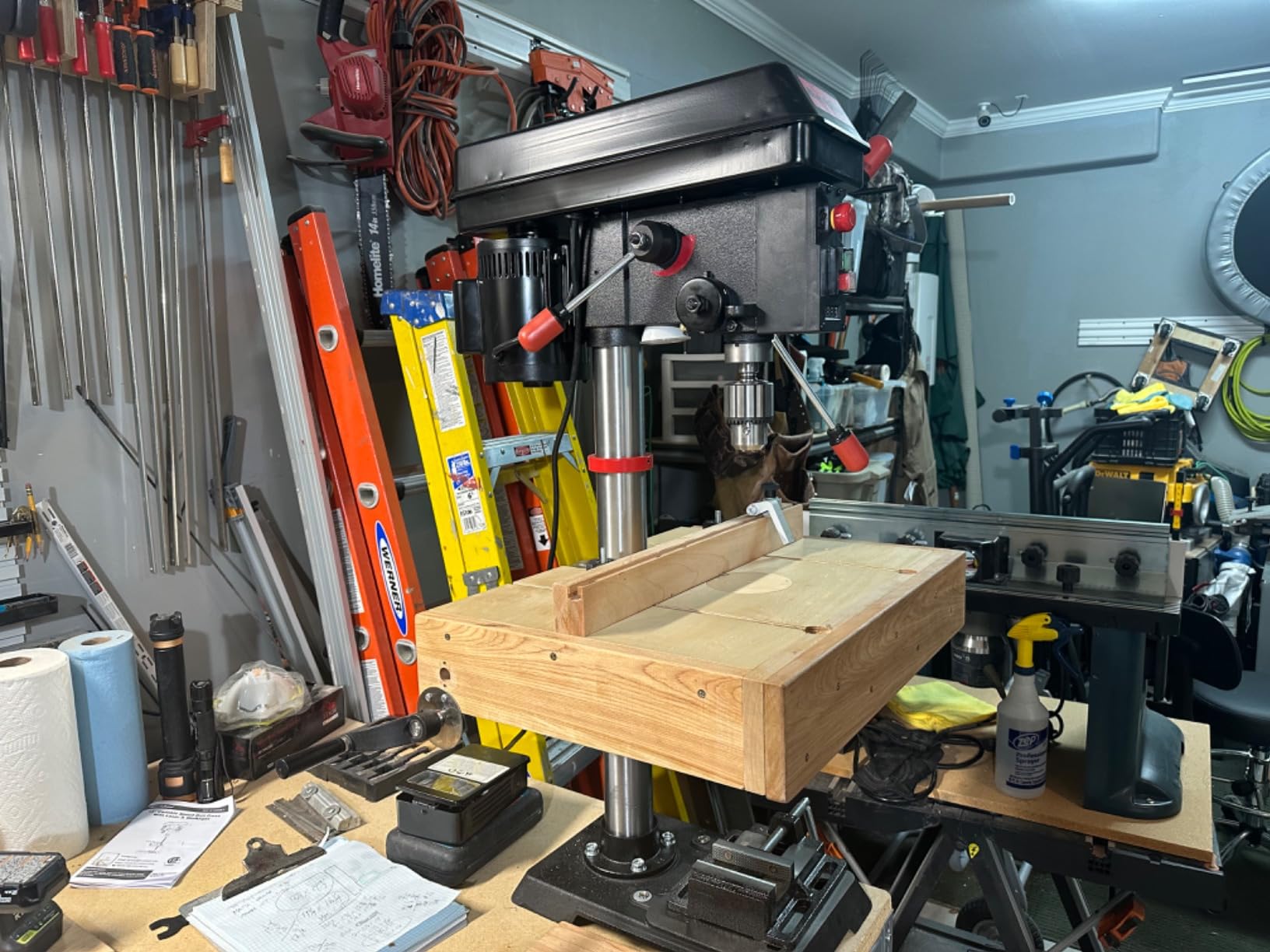

4. BUCKTOOL 12-Inch Variable Speed – The One With the Best Spec Sheet
BUCKTOOL 12-Inch Benchtop Drill Press, 580-3200 RPM, 6.2A 3/4 HP Motor
6.2A 3/4 HP motor
580-3200 RPM digital readout
5/8 inch chuck
86.5 lb
360 degree table
Pros
- 6.2A 3/4 HP motor
- a step up from the 5A typical of 12 inch presses
- Variable speed with digital readout removes belt changes
- Owners report essentially zero runout at the chuck
- Table rotates 360 degrees and bevels 45 degrees
- Emergency stop and no-voltage release switches included
Cons
- At 86 to 100 lb the head assembly needs two people
- 39 inches tall
- so it dominates a bench
- Flat square table is less friendly for a round tube vise
- Chuck key is awkwardly stored behind the spindle
- No manual in the box
The specification that sets this machine apart is the motor. Most 12-inch bench presses run 5 amp motors. This one runs 6.2 amps and 3/4 horsepower, which is the same current that makes the SKIL a credible metal press at a smaller swing. Combined with a 1/32 to 5/8 inch keyed chuck, that is real headroom for large Forstner bits and hole saws.
Speed is lever-operated from 580 to 3200 RPM with a digital readout showing the current speed, so you set a number rather than guessing which belt position you dropped into.
Precision is the story here. Owners running dial indicators report essentially zero runout at the chuck, which is the best accuracy result anyone in this group reports. The table rotates 360 degrees and bevels 45 degrees in either direction, and the base plate has no raised border to get in the way of hold-down clamps.
It also ships with an emergency stop switch and a no-voltage-release switch, both of which are above the norm for this class, plus a Class IIIA laser and a work light. Owners mention clean machining on the castings with no rough unfinished edges.
When this is the right 12-inch press
When your work needs a 5/8 inch chuck and accuracy you can measure. A wide chuck means big Forstner bits, hole saws and the option to fit a larger downfeed handle. The digital readout plus variable speed removes the single most common complaint on stepped-speed machines, which is changing between wood and metal mid-session.
Owners also report comparing it favourably against more expensive branded presses with near-identical features.
When it is not
When bench strength or space is the constraint. At 86.5 lb as shipped and closer to 100 lb with the head assembled, two people are needed for the head, and the machine stands nearly 39 inches tall. If your bench is a light folding table, this is not going to work.
The flat square table is smaller and less friendly for a round tube vise than a round top would be, the chuck key stores behind the spindle where it is awkward to reach, and there is no instruction manual in the box. The quick depth adjustment knob also cannot lock the quill in the down position, so you cannot use it as a depth stop out of the box.

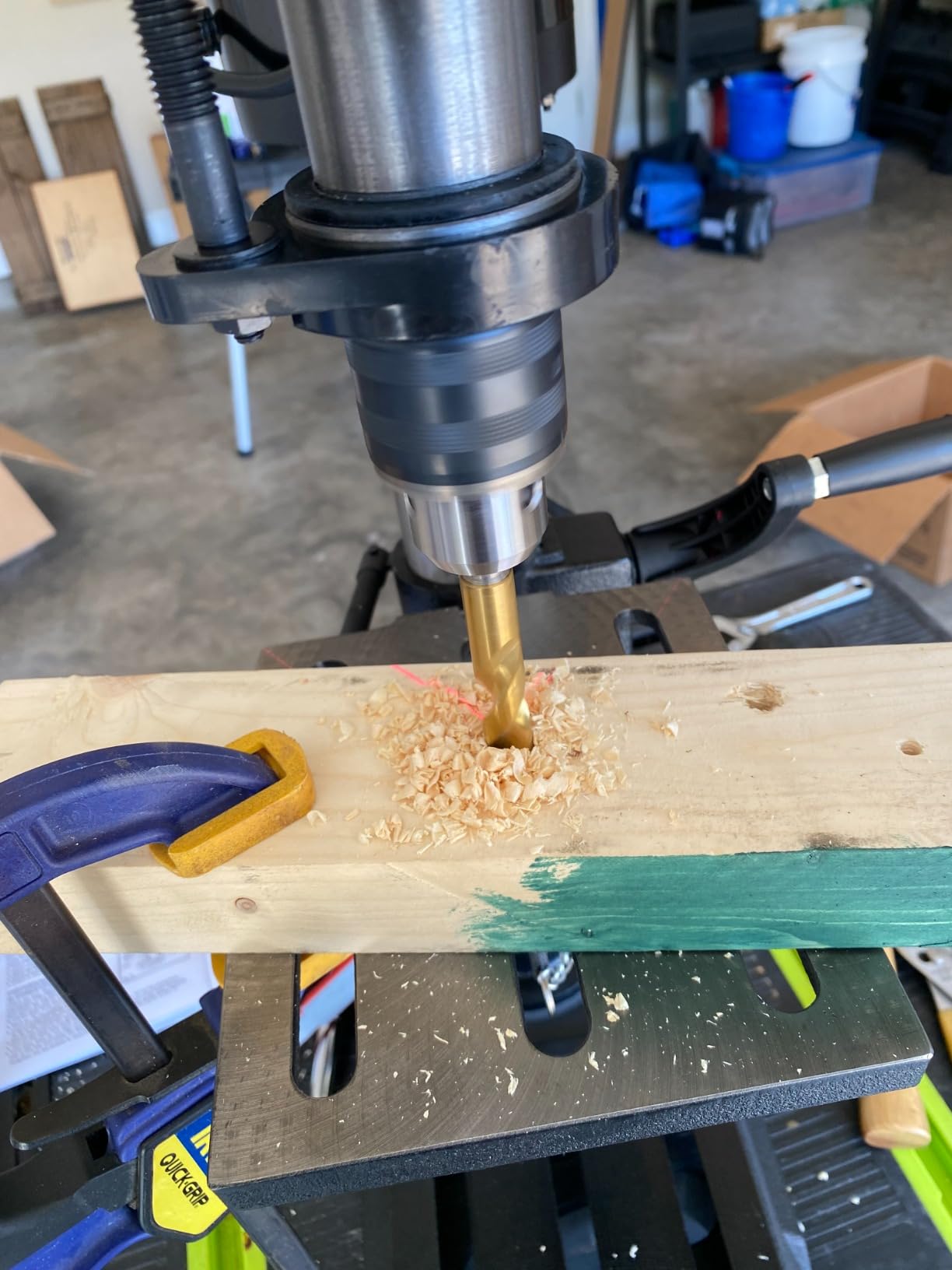

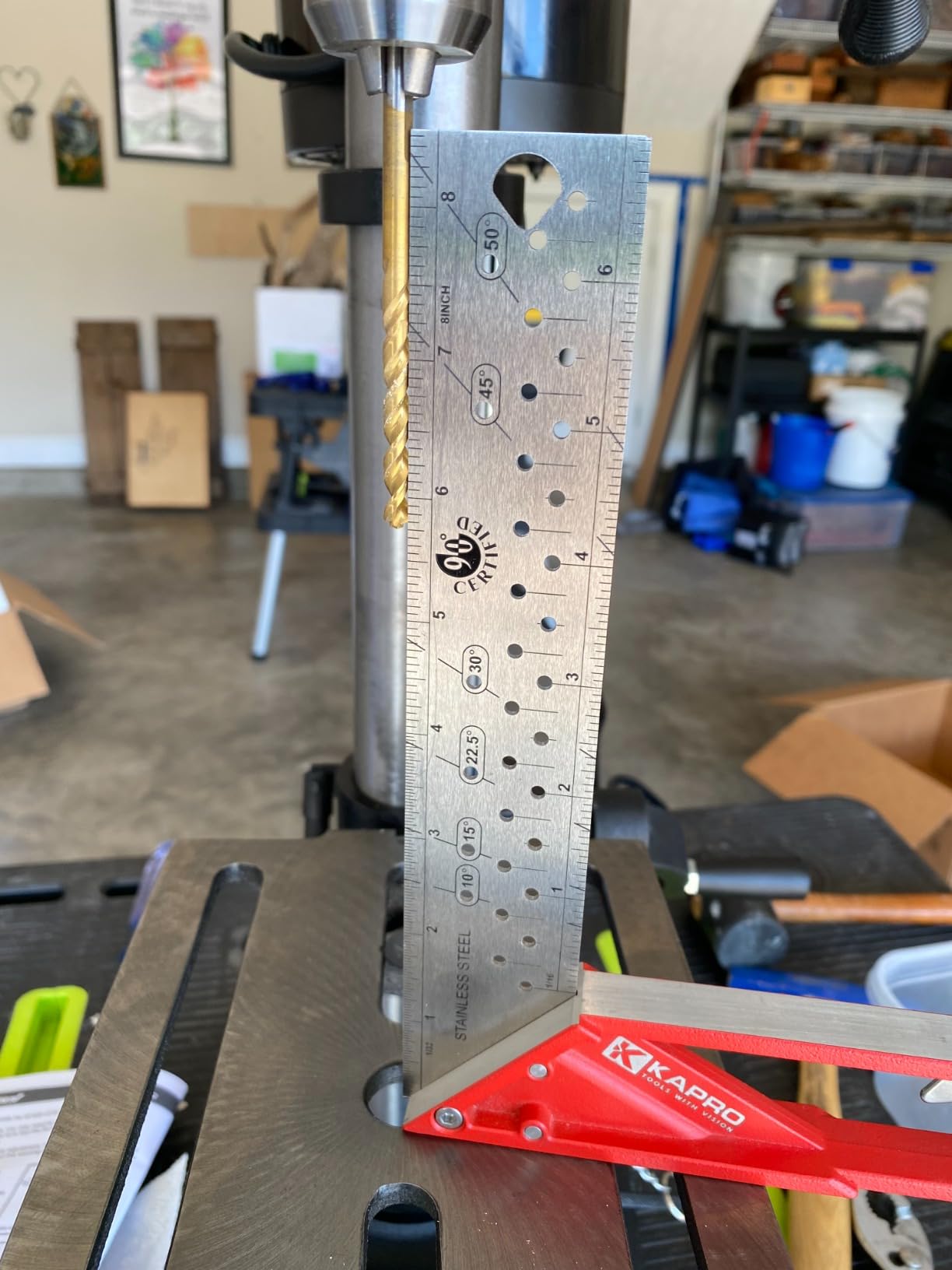

5. BUCKTOOL 10-Inch 5-Speed – The Strongest Compact Per Amp
BUCKTOOL 10-Inch Drill Press 6.2 Amp 3/4 HP Bench Drill Press
CSA certified 6.2A 3/4 HP motor
5 speeds 650-3100 RPM
10 in swing
45 degree bevel table
Pros
- CSA certified 6.2A 3/4 HP motor in a compact frame
- Cast iron base cuts vibration
- 45 degree table with built-in LED and a fence
- Removable switch keys prevent unintentional starts
- Compact 30 inch height
Cons
- Speed changes need the belt repositioned under a cover
- No laser guide
- 1/2 inch chuck limits large bits
- Limited table accessories
This is an odd and useful machine: it packs a 6.2 amp, 3/4 horsepower motor into a 30-inch-tall frame with a 10-inch swing. In a small shop where bench depth and headroom are scarce, that combination is genuinely rare. Most 10-inch presses of this size come with a 2 to 3 amp motor.
The five speeds are 650, 1100, 1700, 2300 and 3100 RPM, spread evenly enough that you can usually live with the nearest setting rather than fighting for exactness.
The cast iron base does most of the work here, minimising vibration for accurate holes, and the removable switch keys are a cheap safety feature more machines should copy. Owners treat it as a value-focused light-duty machine and rate the build well above what they expected at the entry point.
The 45 degree tilting table carries built-in LED lights and an adjustable fence, which makes edge drilling on small stock much less of a fudge than a bare plate. It is CSA certified, which matters in a shop where you care about the paperwork.
Where this machine earns its place
In a cramped shop that wants metal capability without a 12-inch footprint. The 6.2 amps handle twist drills in aluminium and mild steel, and the fence plus tilt handle the angled work that a flat table cannot.
The removable switch key is the sort of detail that stops a shop accident, and it costs nothing to the buyer.
Where it disappoints
Speed changes are the weak point. Unlike the lever or dial systems on the 12-inch machines in this list, changing speed here means repositioning the belt under a cover, which is the fiddliest version of the most common annoyance in this class.
There is no laser guide, so alignment depends on the table hole and the chuck itself, which is exactly the part owners report as the least precise on cheaper machines. The 1/2 inch chuck also limits you to smaller bits, and table accessories such as hold-down clamps are limited.

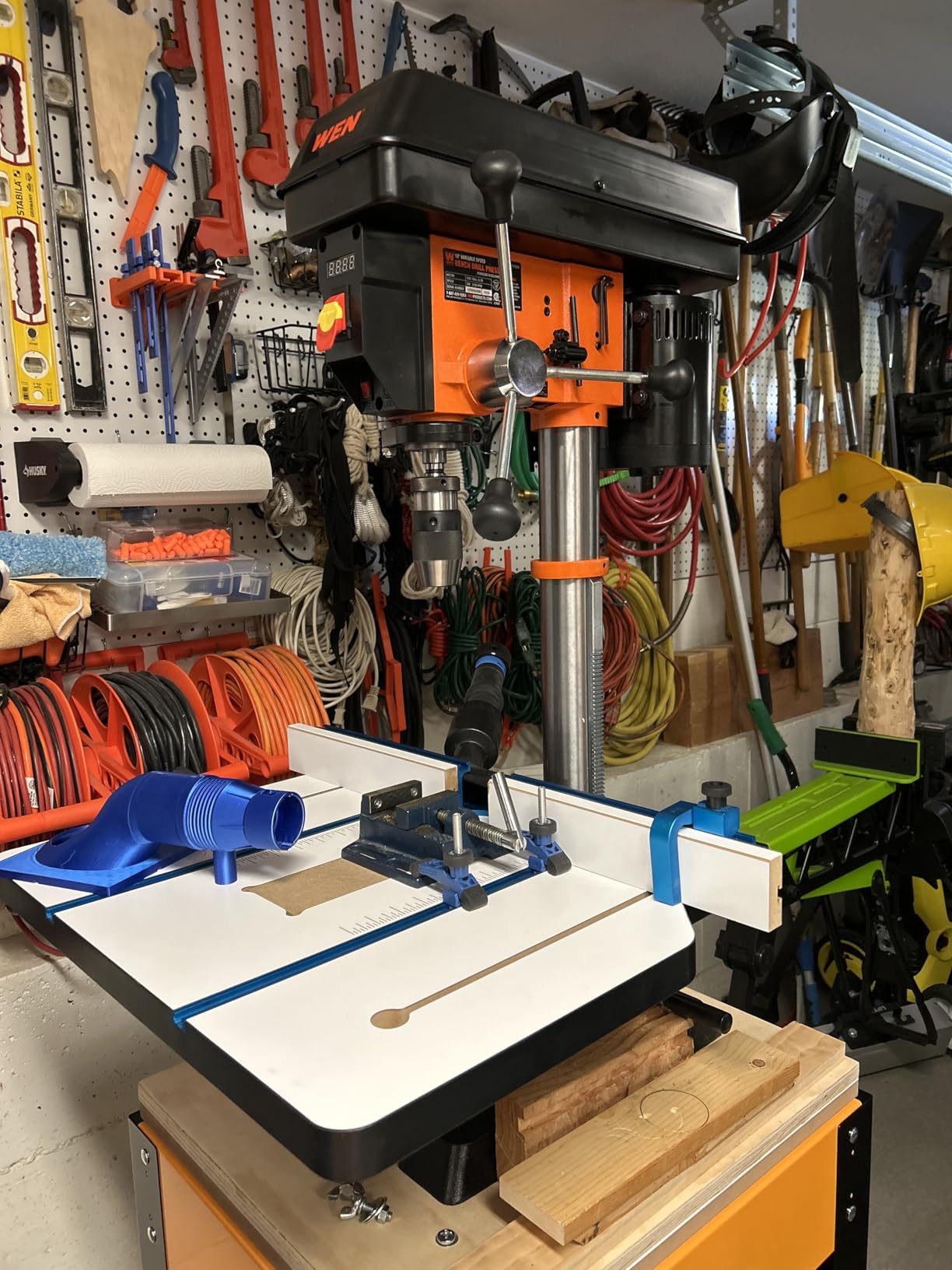

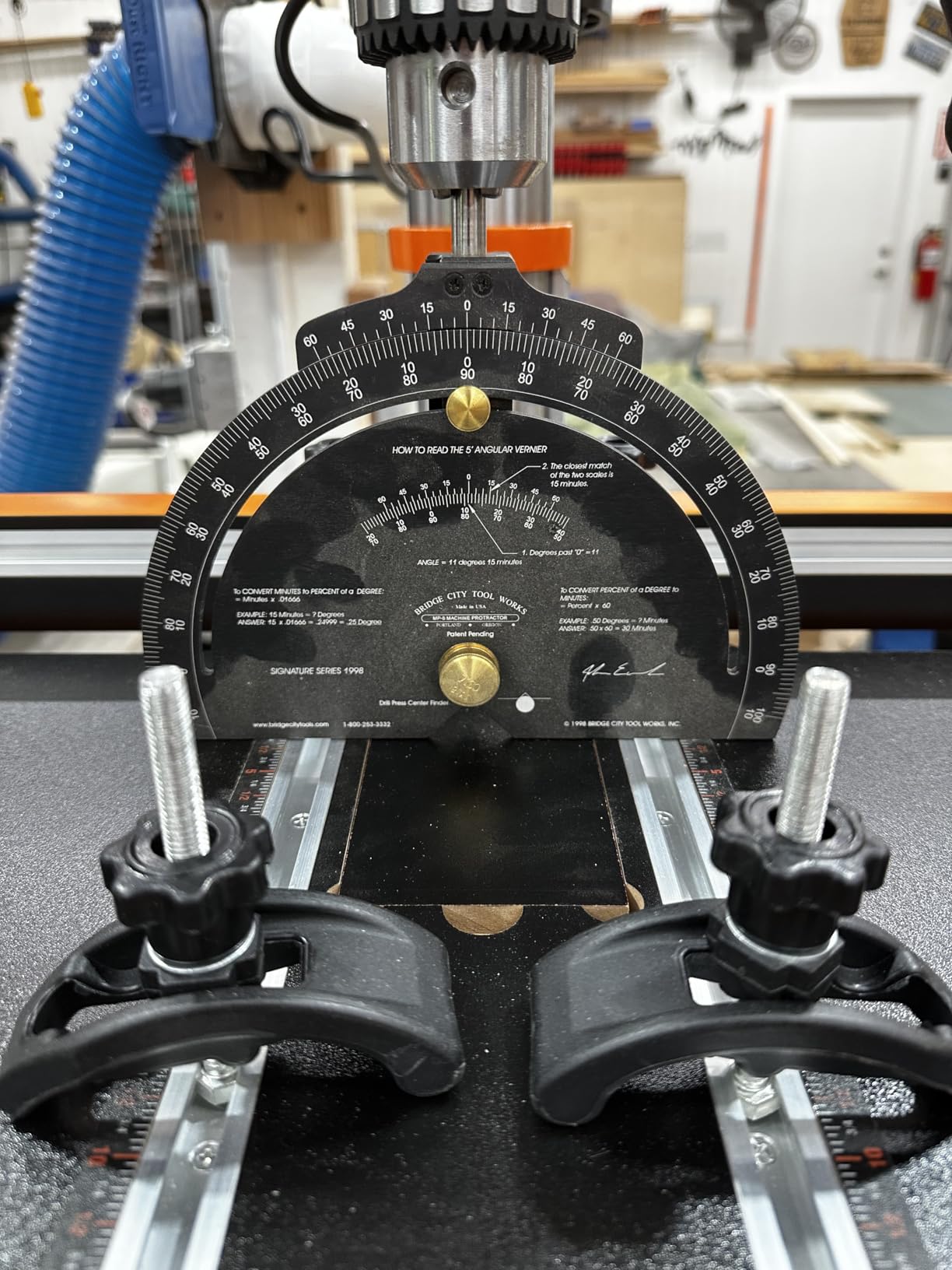

6. WEN DP1263V 12-Inch Variable Speed – The Big-Board Workhorse
WEN 12-Inch Benchtop Drill Press, 6.2-Amp Variable Speed Motor with Cast Iron Construction, Laser and LED Work Light (DP1263V)
6.2A motor
580-3100 RPM variable
3-1/8 in spindle travel
85 lb
5/8 inch chuck
Pros
- Mechanical variable speed with external digital RPM readout
- 6.2A motor cuts 3 inch holes in construction lumber
- Heavy rigid build that bolts down solidly
- Laser and LED integrated into the head
- 3-1/8 inch spindle travel and 12 inch swing
Cons
- Metal table can ship out of square by 1.5 mm or more
- Tilt bolt is hard to access
- Table moves during height adjustment
- Supplied knuckle clamps are weak
- Heaviest option in its class
If you build furniture with thick stock, the 3-1/8 inch spindle travel is the feature that separates this from every other 12-inch press in the group. A deeper quill means you can drill a 3 inch hole through a single piece of construction lumber without stopping to clear shavings halfway down, which owners report the 6.2 amp motor handles without bogging.
Speed is mechanical rather than electronic, running 580 to 3100 RPM with an external digital readout mounted where you can see it.
The build is heavy, 85 lb, and rigid enough that owners describe it as solidly bolted down and not flimsy in the way lighter presses feel. The laser and LED light are built into the head with protected switches rather than added afterward, and there is an adjustable depth stop plus a table roller extension for feeding long stock.
Owners compare it directly and favourably against the more expensive JET equivalent, and rate it as the best value in the 12-inch class. At 77 percent five-star, it is one of the highest-rated machines here.
When this is the right press
For a furniture maker working in thick construction lumber, wide panels, and anything where quill depth matters as much as swing. The 12-inch swing, 5/8 inch chuck and 9-1/2 inch beveling table cover most residential furniture work in one machine.
If your current press struggles with 1 inch bits in oak, this is the reason why, and the amperage figure tells you why it will not.
When it is not
When your bench is small. It is the heaviest option in its class, and many owners say a purpose-built stand is worth adding. The dominant owner complaint is factory squareness: the metal table can ship out of square front to back by 1.5 mm or more, with no adjustment provision, and some owners correct it with feeler gauges and a wooden top.
The 45 degree tilt bolt is also hard to access and finicky to fine-tune, the table moves during height adjustment so the centre hole drifts off the bit, and the supplied knuckle clamps are weak enough that owners replace them. It carries a two-year warranty.

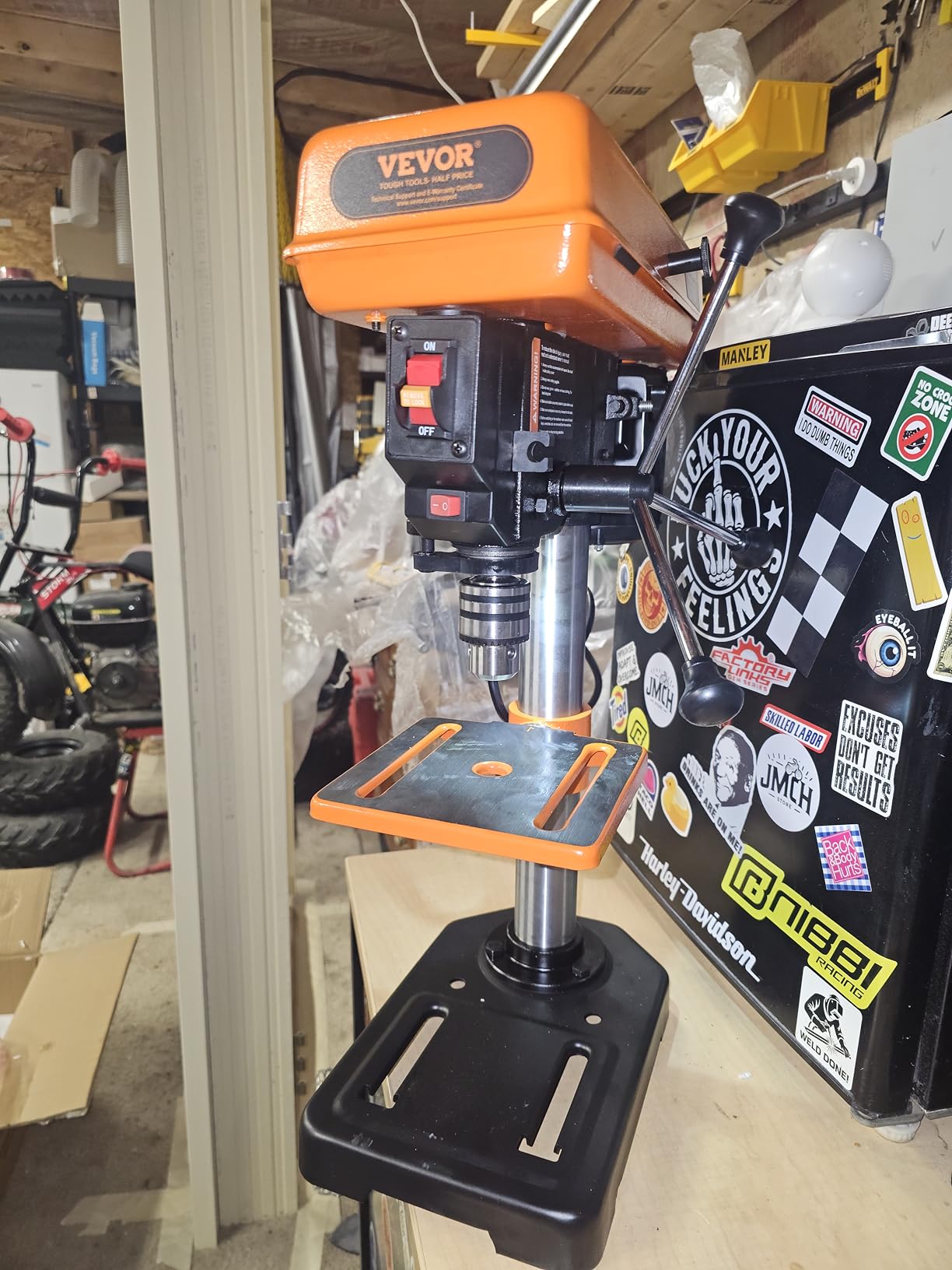

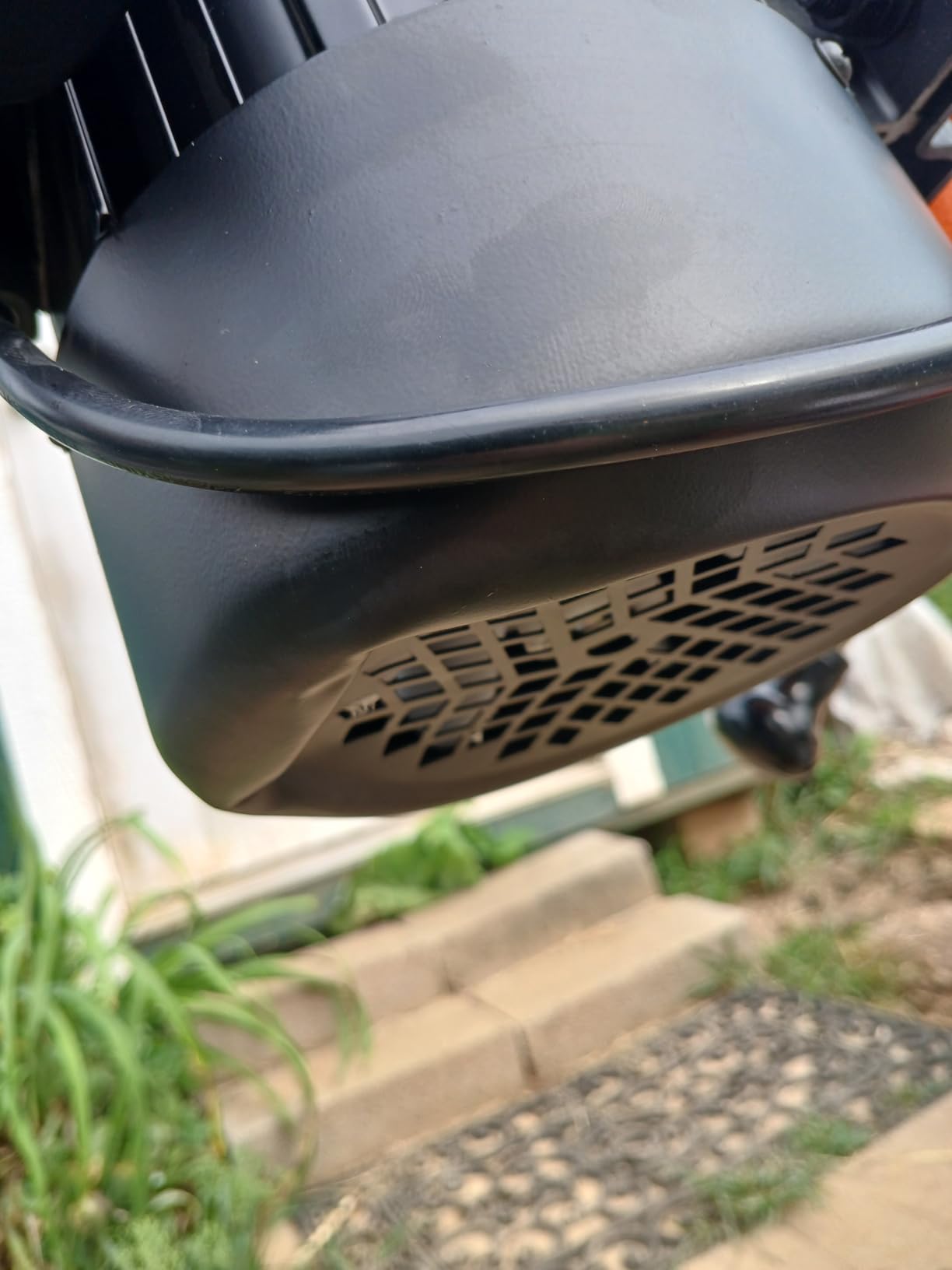

7. VEVOR 8-Inch 5-Speed – The Cheapest Machine That Works
VEVOR 8 in Benchtop Drill Press, 2.5A Induction Motor, Tabletop Drilling Machine with 750/1140 / 1740/2340 / 3200 RPM Adjustable Speed, 0-45° Tilting Worktable, LED Work Light, for Wood Metal
2.5A induction motor
5 speeds 750-3200 RPM
8 in press
25.4 lb
45 degree tilting table
Pros
- Lowest cost in the group with a 4.6 average rating
- Five speeds from 750 to 3200 RPM for wood
- plastic and light metal
- Low radial runout and an adjustable depth stop
- Integrated LED work light
- Compact
- stable and quiet
- Assembly is straightforward
Cons
- 2.5A motor is weak and overheats quickly on metal
- Thin sheet metal base is less rigid than cast iron
- Speed changes need a belt move
- No laser guide
- Table holding accessories not included
This machine does not win on any single spec. It wins on the ratio of finished, working presses to money spent, and on the fact that it carries a 4.6 average rating from 161 owners, which is better than several machines far more expensive than it.
Runout is reported low, the depth stop is adjustable, and there is 2 inches of spindle travel. The thick metal table adjusts in height and tilts up to 45 degrees, with an integrated LED light for a dim shop.
At 25.4 lb it is the most portable press here, and it is quiet, which matters if your shop shares a wall with a living space. Assembly is straightforward and the instructions are clear.
Owners rate it highly for woodworking and light hobby drilling. What they do not rate is the motor for metal. A minority of reviewers report the 2.5 amp unit overheating and coming to a stop on metal, especially in warm conditions.
When the VEVOR is enough
When the press is a supporting tool rather than the centre of the shop. Small craft and jewelry work, pen turning, model and jig work, and light wood drilling all sit comfortably inside its capability.
Bolted to a bench, it stays accurate enough for the work it is suited to.
When it is not
Any time you plan to drill metal regularly, and any time heat is a factor in your shop, because a 2.5 amp motor that overheats will eventually let go. The base is thin sheet metal rather than cast iron, so it transmits more vibration than the WEN or WOODSKIL at a similar size.
There is no laser guide, so alignment relies on the table hole, and no table holding accessories are included.

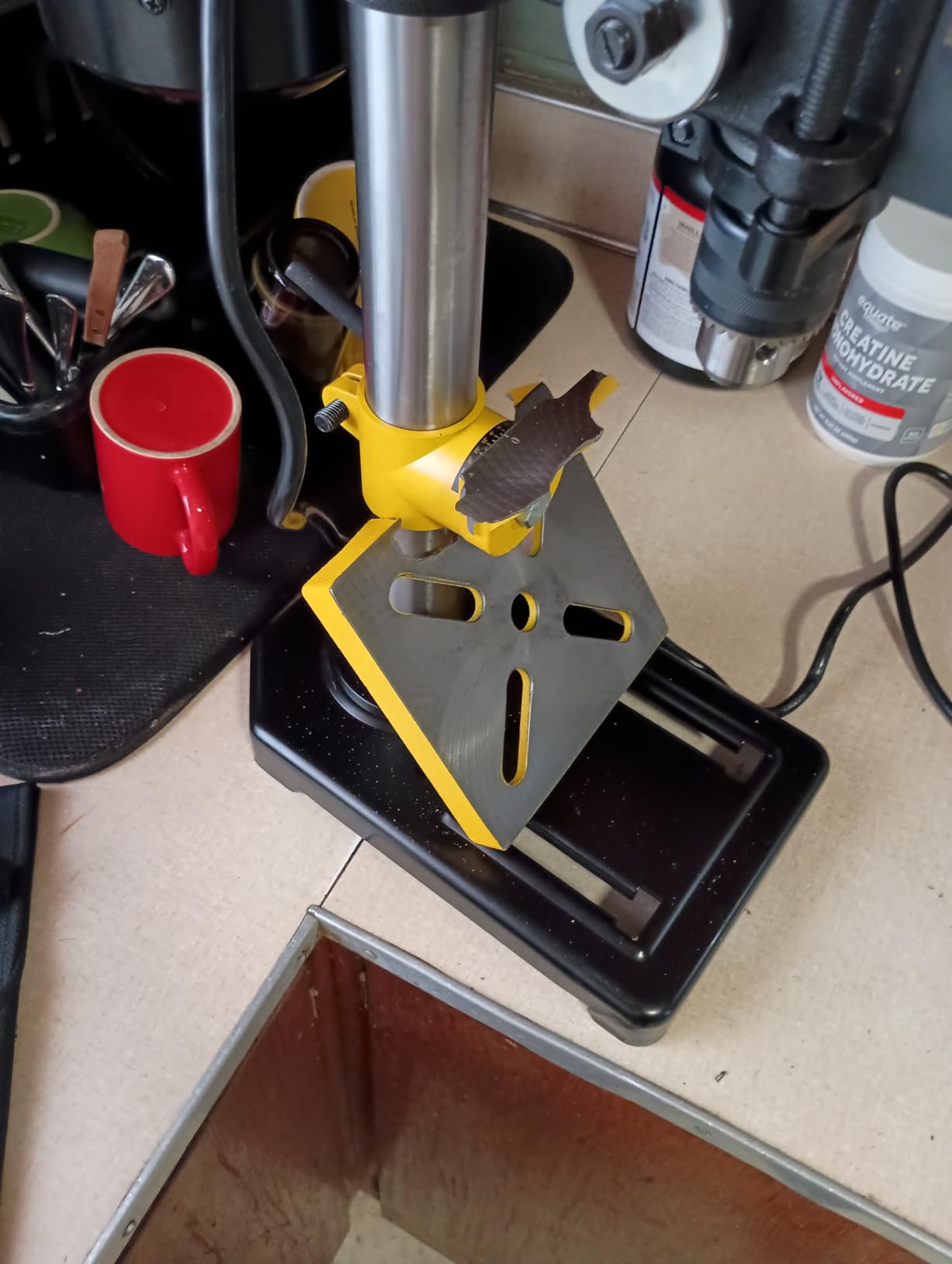

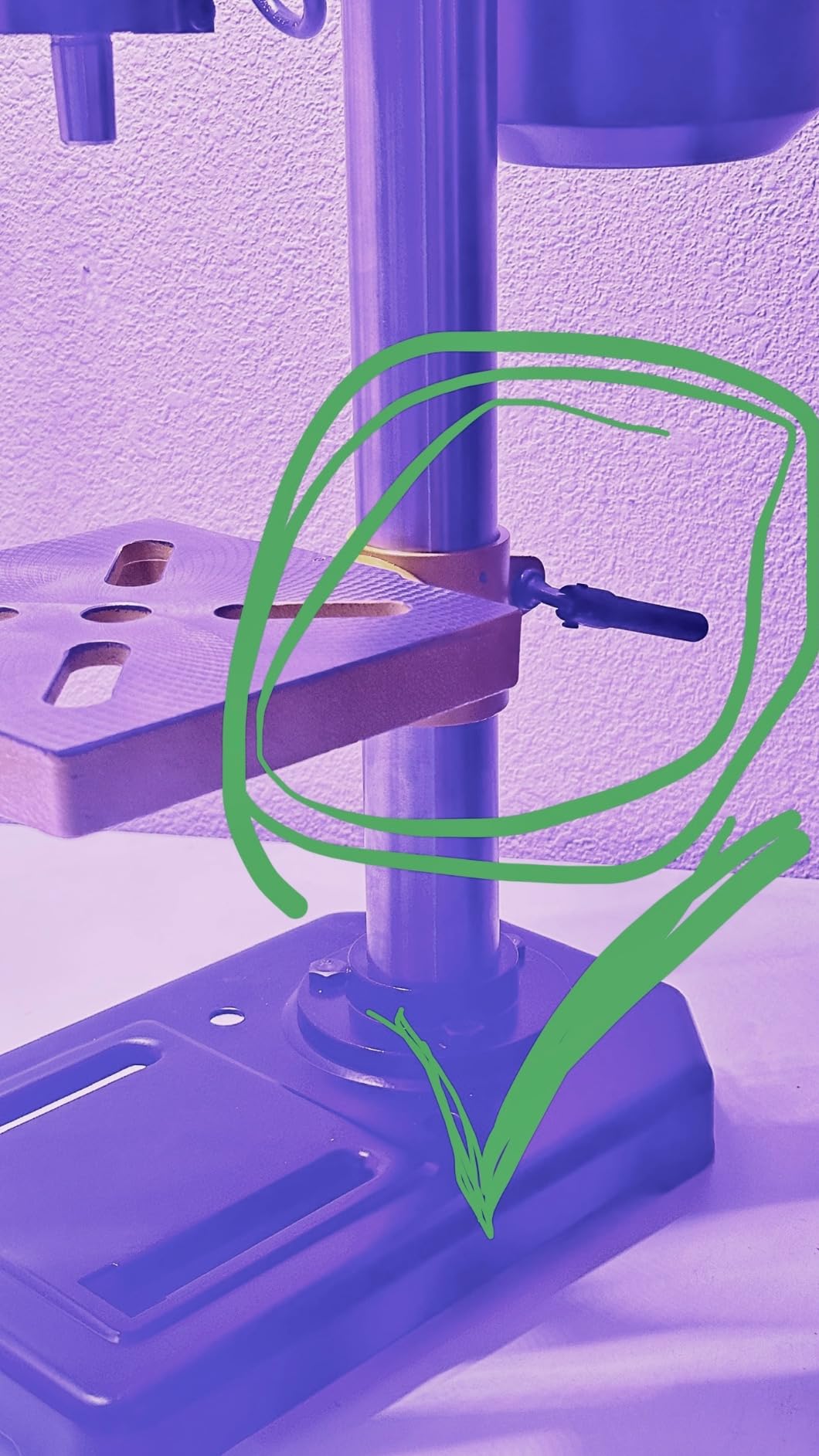

8. WOODSKIL 8-Inch 5-Speed Laser – The Compact One With a Laser
WOODSKIL 8-Inch Benchtop Drill Press, 2.3 Amp 5-Speed with Laser Guide
2.3A 1/3 HP motor
8 in swing
Laser guide
5 speeds 750-3200 RPM
2 year warranty
Pros
- Cast iron table and base are heavier than most 8 inch presses
- Class IIIA laser removes the need for chalk lines
- Five speeds from 750 to 3200 RPM
- Table bevels 45 degrees both ways and adjusts in height
- Two year limited warranty
Cons
- 2.3A 1/3 HP motor is light for hardwood and metal
- Lowest rating in the group at 4.2 with 11 percent one-star reviews
- Compact 8 inch table limits workpiece support
- No tilt locks or depth stop
The defining choice here is the cast iron table and base. At 8 inches, most competing machines use stamped sheet metal, and you can feel the difference the moment you put a side load on the work. This one holds its geometry, which is why it still produces square holes on light work.
It is also the only compact press in the group with a laser guide, a Class IIIA 2.5mW unit that lets you line up work without chalk lines or marking gauges.
The five speeds are 750, 1100, 1500, 2100 and 3200 RPM, the 1/2 inch keyed chuck takes standard small-shop bits, and the table bevels 45 degrees in either direction with height adjustment. It carries a two-year limited warranty, which is honest and acceptable at this level.
The 4.2 average rating is the lowest in the group, and 11 percent of reviews are one star. The recurring themes are the 1/3 hp motor being light for hardwood, the compact 8 inch table limiting workpiece support, and the absence of tilt locks and a depth stop.
Where this machine makes sense
In an apartment workshop, a small garage, or anywhere the bench is the binding constraint. At roughly 23 inches tall with an 8-inch swing, it takes up very little room and the cast iron feet keep it from skating across a light bench during a cut.
For pencil-thick bits in softwood, craft work, and light drilling duty, the motor is fine.
Where it falls short
Anything in hardwood. At 2.3 amps and 1/3 horsepower, a Forstner bit in oak will stall it, and the 8 inch table will not support the workpiece properly while that happens. For metal, look elsewhere entirely.
Missing tilt locks means the bevel setting can drift during a cut, and without a depth stop you set repeat depths by counting the linear scale by eye.
How to Choose a Benchtop Drill Press for a Small Shop
Most people buy a press by swing size, then regret it. Swing matters, but it is the third question. Here is the order we would use.
1. Amperage decides what material you can cut
The single most useful number on any press listing is the motor amperage. Under 3 amps means a woodworking machine, and it will stall on anything harder than softwood. At 6.2 amps you have a machine that will feed a twist drill steadily through aluminium and thin mild steel with cutting fluid. In this group, the SKIL, the BUCKTOOL 10-inch, the BUCKTOOL 12-inch and the WEN DP1263V are the metal-capable machines; the other four are wood machines with a metal ambition.
This is also the answer to the complaint that appears in almost every woodworking forum thread about compact presses. Small bench presses get described as underpowered, and in a lot of cases that is accurate. A 2.3 amp motor is a hobby motor wearing a work shirt.
2. Pick the swing that matches your workpieces
Swing is twice the distance from the centre of the chuck to the supporting column, which means a 10-inch swing lets you drill the centre of a 10-inch-wide board. An 8-inch press covers dowel joints, small brackets and craft work. A 10-inch press covers shelf-pin lines and cabinet hardware. A 12-inch press covers panels, chair parts and furniture joinery. The 12 and 13-inch machines here also give you a 5/8 inch chuck, which is what large Forstner bits and hole saws need.
Do not buy swing you will not use. In a 10 by 12 shop with one bench, the difference between an 8-inch and a 12-inch machine is the difference between a tool that lives on the bench and one that gets shoved into a corner.
3. Chuck size and runout decide your tolerance
A 1/2 inch chuck covers most small-shop woodworking. A 5/8 inch chuck is what you want for big Forstner bits, hole saws, and pen turning with large stock. Runout is the wobble of the chuck as it spins, and it translates directly into hole accuracy.
Owner reports on this group range from essentially zero runout on the BUCKTOOL 12-inch to slight wander on the SKIL supplied chuck at full quill extension. If you are cutting to a tolerance, test the chuck with a dial indicator in the first ten minutes and save the number.
4. Stepped 5-speed or variable speed
A stepped 5-speed gearbox gives five fixed settings and a belt change to move between them. A variable speed drive gives a dial or lever with a range. For wood-only work the five-speed layout is cheaper and fine. For anyone alternating between wood and metal, variable speed is the feature owners are most glad they paid for, because belt changes are the most common single regret in this class.
Also look at the low end of the range. The JET JWDP-12 goes down to 530 RPM and the SKIL to 610 RPM, both of which are genuinely useful for drilling metal slowly.
5. Worktable size, tilt and accessories
Table size is a support question. A 6.5-inch square table works for small parts and dowels; anything larger needs a sacrificial board clamped down beside it. A table that tilts to 45 degrees in either direction lets you drill angled holes for tapered legs and furniture joinery, and the BUCKTOOL 12-inch adds a 360 degree rotation. Note that none of the machines in this group ship with a proper vise, and a drill press vise is the single most worthwhile accessory purchase.
6. Benchtop or floor press?
Floor presses win on stability, capacity, swing and speed range. Bench presses win on price, footprint and the ability to store the machine away. If your work is 99 percent woodworking in wood, a bench press gives you most of the value at a fraction of the cost and space.
Buy a floor press instead if any of these are true:
You regularly drill the centre of workpieces wider than 13 inches
You cut thick steel plate regularly rather than occasionally
Your bench cannot carry 85 lb without flexing
You need production repeatability across batches rather than occasional accurate holes
You want a larger worktable for tall stock such as table legs
For metalwork in particular, a magnetic drill press is the answer rather than a bigger bench press. Magnetic presses clamp to the part itself, which is a far better arrangement for plate and structural steel than trying to support the work on a bench.
7. Bench mounting is not optional
Every press in this group is sold as bench-mounted, and none of them come with hardware to do it well. Heavier machines weigh 85 to 86.5 lb, and owners report those walking across the bench during a cut unless they are fixed down.
Check your bench load rating before you commit, and check that the bench top is thick enough not to flex. Level the bench and the press together, then bolt the press base through the mounting holes with grade 8 or grade 10 bolts and washers. If vibration is still transmitted, a strip of rubber matting or a thin pad of cork between the base and the bench top kills most of the rattle. Remove the switch key or unplug the press when the shop is unattended.
8. Safety habits that matter on a bench press
Clamp the work in a vise. Never hold it by hand, because a spindle can be stopped by a hand before it can be stopped by wood.
Wear safety glasses, and keep clear of the chuck at all times.
No gloves near a rotating chuck. A glove is what a drill catches.
Tie back long hair and remove loose sleeves before starting.
Match speed to bit diameter and material. Forstner bits want the low settings, small twist drills want high speed.
Stop the machine before adjusting anything, including the table height.
Keep the belt cover on. Five-speed machines have a cover for a reason.
9. What to buy alongside the press
A complete setup is more than the press. Budget for a drill press vise, which is the accessory that most improves hole accuracy because it stops the work spinning; a set of brad-point and Forstner bits; and a sacrificial board for the table. Our tested drill bit sets cover the wood, metal and concrete combinations worth owning.
10. A used press is a legitimate option
Secondhand bench presses come up repeatedly in owner threads as a sensible buy. A cast iron press from a named brand is mechanically simple, and the failure modes are known and mostly fixable: a dried-up gearbox, a tired quill bushing, a missing table extension. Check that the quill returns under its own spring weight, that the belt is not glazed, and that the casting has no cracks.
Frequently Asked Questions
What is a benchtop drill press used for?
A benchtop drill press bores straight, square, repeatable-depth holes in wood, metal and plastic. You clamp the workpiece in a vise on the worktable, set the speed for the bit and material, then pull the quill handle to bring the bit straight down. Common uses include dowel joints, shelf-pin holes, cabinet hinge mortises, flat-bottomed Forstner holes, pen turning, jig work and light metal brackets. A handheld drill cannot hold that geometry consistently.
What is the best benchtop drill press for the money?
The WEN 4206T 8-Inch 5-Speed is the best benchtop drill press for the money for most small shops. It has a cast iron table and base, a compact 23-inch footprint that fits a small bench, five speeds from 750 to 3200 RPM, and a 4.6 rating from 797 owners. Its 2.3 amp motor makes it a woodworking machine, so buyers who need metal capability should step up to a 6.2 amp model.
Are Harbor Freight drill presses any good?
Owner consensus across woodworking forums is that Harbor Freight benchtop presses are among the better values in the category, with the Bauer 8-inch 5-speed model frequently named as a gem by owners. The caveat is consistent across that sentiment: these are light machines with modest motors, so they suit light woodwork and hobby drilling rather than thick hardwood or steel. Judge any budget press the same way, by its published amperage rather than its feature list.
Can a benchtop drill press drill metal?
Yes, but only if the motor is powerful enough. Look for 6.2 amps or more. The SKIL DP9505-00, the BUCKTOOL 10-inch, the BUCKTOOL 12-inch and the WEN DP1263V all run 6.2 amp induction motors and can feed a twist drill steadily through aluminium and thin mild steel with cutting fluid. Presses rated 2.3 to 2.5 amps will overheat and stall on metal, especially in a warm shop.
What are the differences between a benchtop and a floor drill press?
A floor drill press has a larger swing, a taller column, a bigger worktable, a higher horsepower motor and a wider speed range, and it stands on the shop floor. A benchtop drill press bolts to a workbench, costs considerably less, occupies far less space and covers most woodworking needs. Bench presses typically have less capacity, but for wood 99 percent of the time a benchtop model gives you most of the features for a fraction of the cost and none of the floor space.
What size benchtop drill press do I need for a small shop?
Choose 8-inch swing for dowel joints, craft work and small brackets. Choose 10-inch swing for shelf-pin lines, cabinet hardware and general shop work, which is the most common choice for a small shop. Choose 12-inch swing with a 5/8 inch chuck for furniture panels, thick construction lumber and hole saws. Measure your widest typical workpiece first, then add the vise width, and check that your bench can carry the weight.
Does variable speed actually matter on a drill press?
It matters most if you switch between wood and metal in the same session. A stepped 5-speed machine requires moving a belt between pulley positions, which owners consistently name as the most annoying feature of the category. A variable speed drive changes speed with a lever or dial on the fly and lets you hold an exact figure, which matters for metals where too much speed burns the bit. For wood-only work, five fixed speeds are perfectly adequate.
Final Verdict
The best benchtop drill press for small shops is the WEN 4206T, because a cast iron build at 23 inches tall and 32 lb is the combination that actually works in a real small shop. If your shop needs metal capability, move up to the SKIL DP9505-00 for 6.2 amps at a 10-inch swing. If you want a machine that outlasts the shop, the JET JWDP-12 is the upgrade path, with cast iron and steel construction and sixteen on-the-fly speeds.
Whatever you choose, bolt it down, buy a vise, and check the amperage before the swing. Updated for 2026.
