The short answer on the best DIY mini split systems for homeowners: MRCOOL builds the only true tool-free pre-charged line sets on the U.S. market, Zone Air pairs a pre-charged system with U.S.-based support and inspection, and the rebadged Midea platform sold as Senville, Pioneer and Blueridge gives you the same compressor hardware under a different badge. Most of the rest are ordinary ductless heat pumps with a marketing sticker that says DIY, and that distinction decides whether your install takes an afternoon or a weekend with a rented vacuum pump.
That gap matters more than any spec sheet. A professional single-zone ductless install runs into the thousands in labor before equipment, and the reason is not the indoor head or the condenser. It is the sealed refrigerant loop. If the lineset is not factory pre-charged, someone has to cut, flare, torque, pressure test and evacuate to a deep vacuum before a single drop of refrigerant moves. That is EPA 608 work, and it is the single line item that separates a real DIY system from a box with instructions.
Over the past few months our team read through the specifications, warranty fine print and owner feedback on 12 of the most heavily reviewed ductless heat pumps available to homeowners right now, then sorted them by the question that actually decides the purchase: how much of the install can you legally and safely do yourself. We also flagged the ones where the fine print quietly cancels a warranty, because that risk shows up after the money is spent.
If you are still deciding between a ductless mini split and a conventional central system, our mini split air conditioner guide covers the sizing and zoning basics first. This roundup goes straight to the systems you can install yourself.
Top 3 DIY Mini Split Picks in 2026
Senville LETO 12K
- 12000 BTU and 700 sq ft
- 20.8 SEER2 inverter
- 110V with pre-charged 16ft line set
- Alexa and 28 dB indoor unit
Mountman 18K 19 SEER2
- 18000 BTU and 1250 sq ft
- 19 SEER2 inverter
- 26 dB sleep mode
- Pre-charged R32 condenser

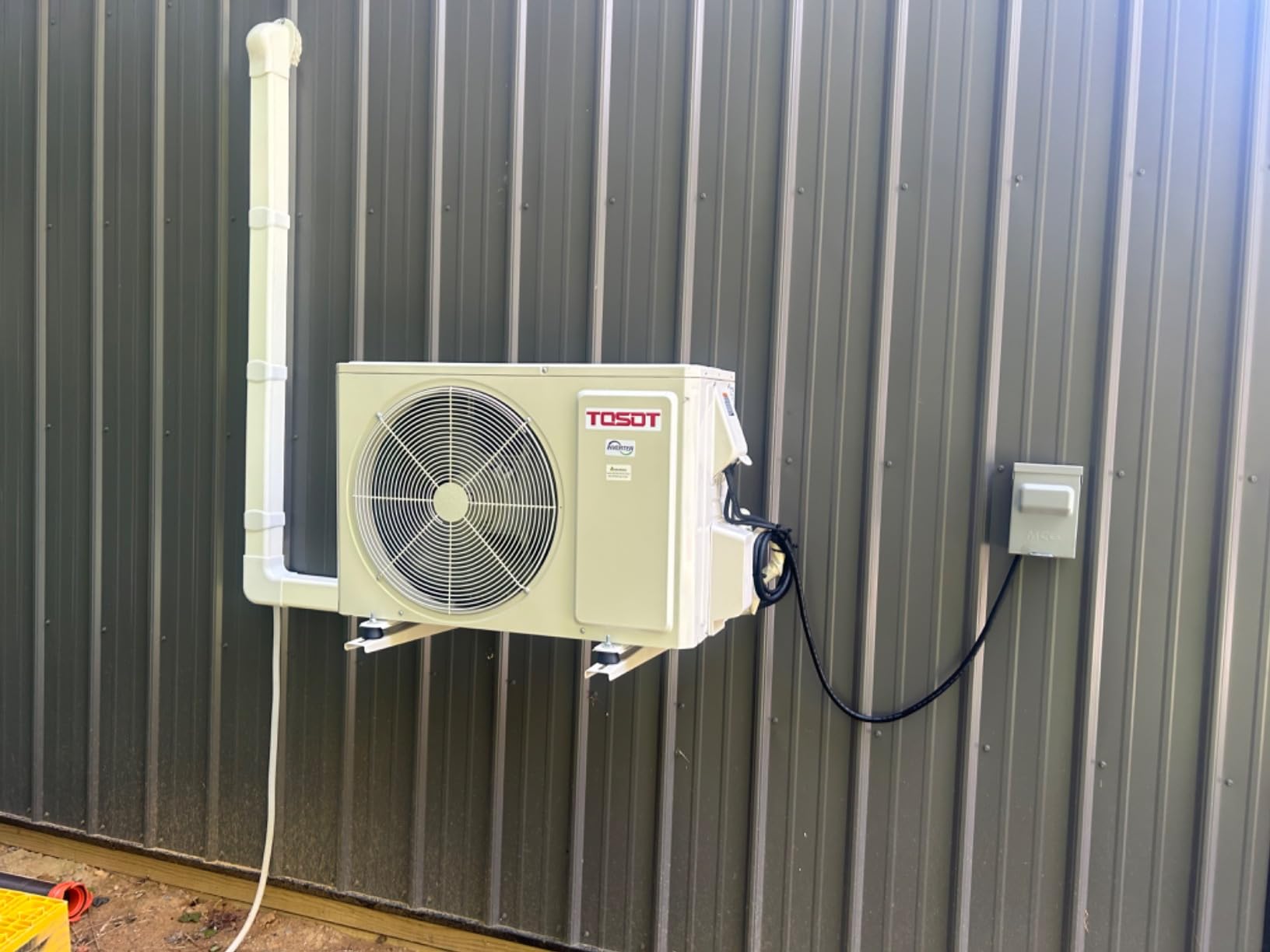

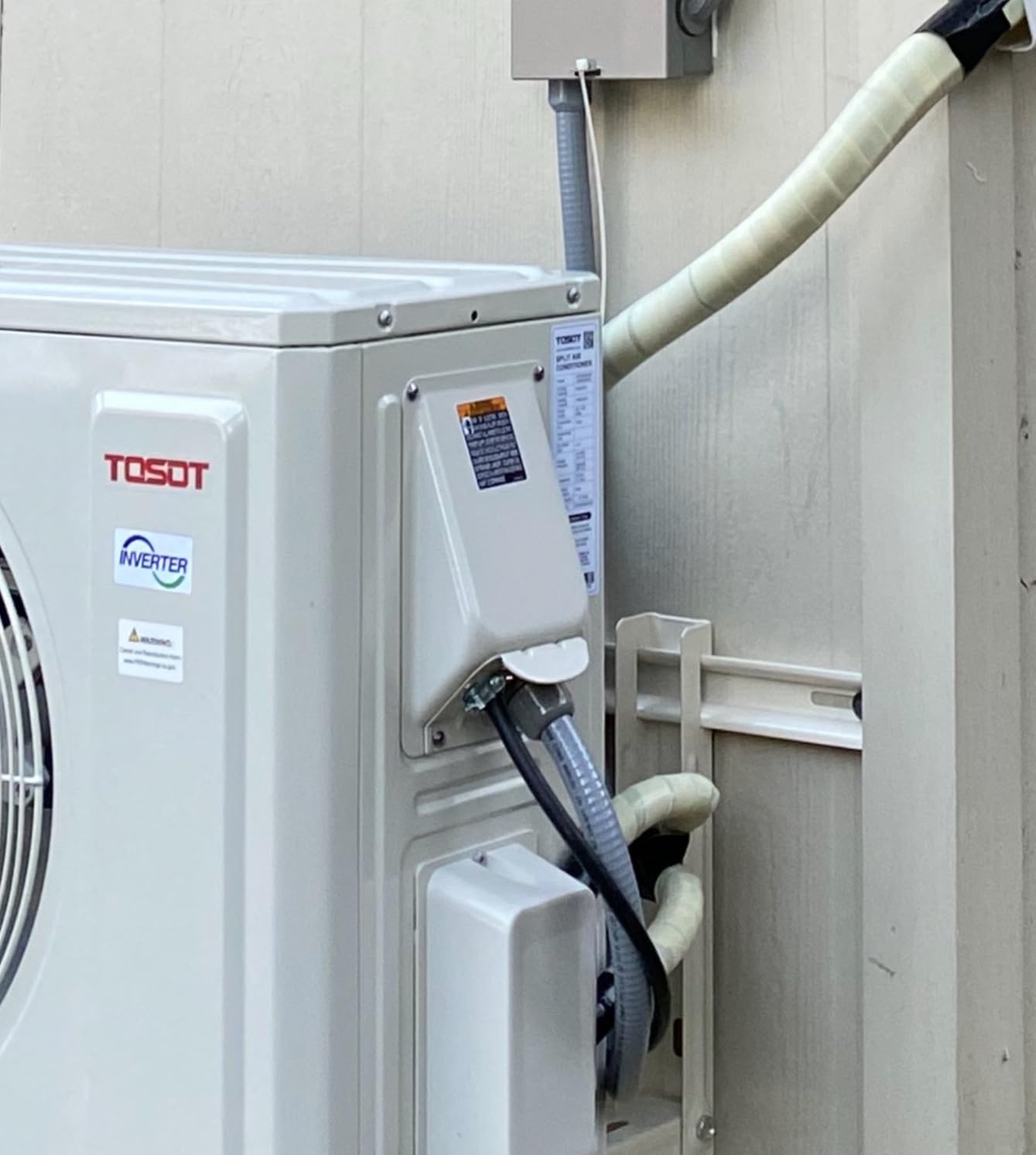

TOSOT 9K 115V
- 9000 BTU at 115V plug-in
- 20.5 SEER2 inverter
- Heating to -13F
- 25 dB and 16ft line set
Best DIY Mini Split Systems (October 2026)
| Product | Specifications | Action |
|---|---|---|
| Senville LETO 12,000 BTU Heat Pump |
|
Check Latest Price |
 Cooper and Hunter MIA 12,000 BTU 115V |
|
Check Latest Price |
 YITAHOME 18,000 BTU 21 SEER2 |
|
Check Latest Price |
| Cooper and Hunter MIA 18,000 BTU 230V |
|
Check Latest Price |
 Albott Easy DIY Series 12,000 BTU |
|
Check Latest Price |
 Rellytech 18,000 BTU 21 SEER2 |
|
Check Latest Price |
| Mountman 18,000 BTU 19 SEER2 |
|
Check Latest Price |
 DELLA Optima 18,000 BTU Hyper Heat |
|
Check Latest Price |
| TOSOT 9,000 BTU 115V WiFi |
|
Check Latest Price |

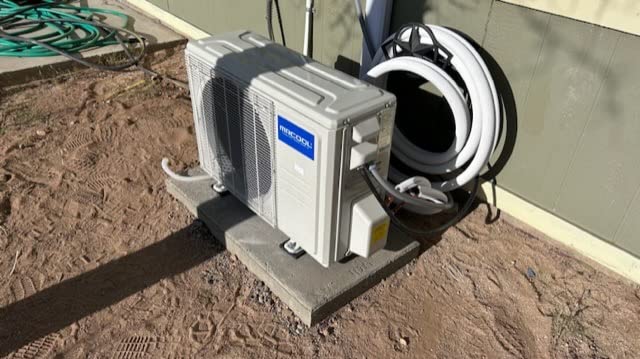

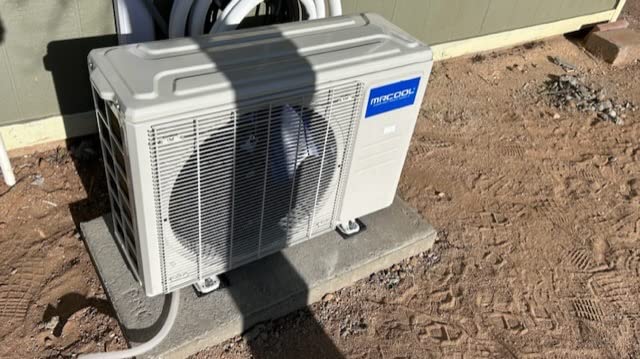

 MRCOOL DIY Star 4th Gen 12,000 BTU |
|
Check Latest Price |
 ROVSUN 18,000 BTU 23 SEER2 |
|
Check Latest Price |
 Senville AURA 18,000 BTU Heat Pump |
|
Check Latest Price |
What Actually Makes a Mini Split DIY
A DIY mini split is a ductless heat pump whose refrigerant lineset arrives pre-charged with refrigerant and sealed with quick-connect fittings, so a homeowner can connect the indoor head to the outdoor condenser without a vacuum pump, without flaring copper, and without holding an EPA 608 certification.
That definition is stricter than most listings admit. Plenty of systems on the market are sold as DIY because the box includes a line set, but the line set arrives empty and the condenser has service valves that expect a technician with a recovery machine. You can technically install those yourself. You are not legally allowed to charge refrigerant without the certification, and the warranty will read accordingly.
Three technical terms decide the rest. Pre-charged means the factory filled the lineset and the installer never breaks the sealed circuit. Quick connect means the fittings twist and lock with a hex wrench instead of a flare tool. R-454B is the mildly flammable A2L refrigerant now replacing R-410A on newer units, which is why you will see a refrigerant charge and a leak-detection requirement discussed more often than in earlier years.
Size and electrical setup matter as much as the fittings. A 115V system in the 9000 to 12000 BTU range plugs into a standard receptacle, which keeps electrical work down to swapping an outlet. A 208-230V system needs a dedicated circuit, a disconnect, correct wire gauge and very often a permit plus an electrician, and that is the point where the savings from going DIY shrink considerably.

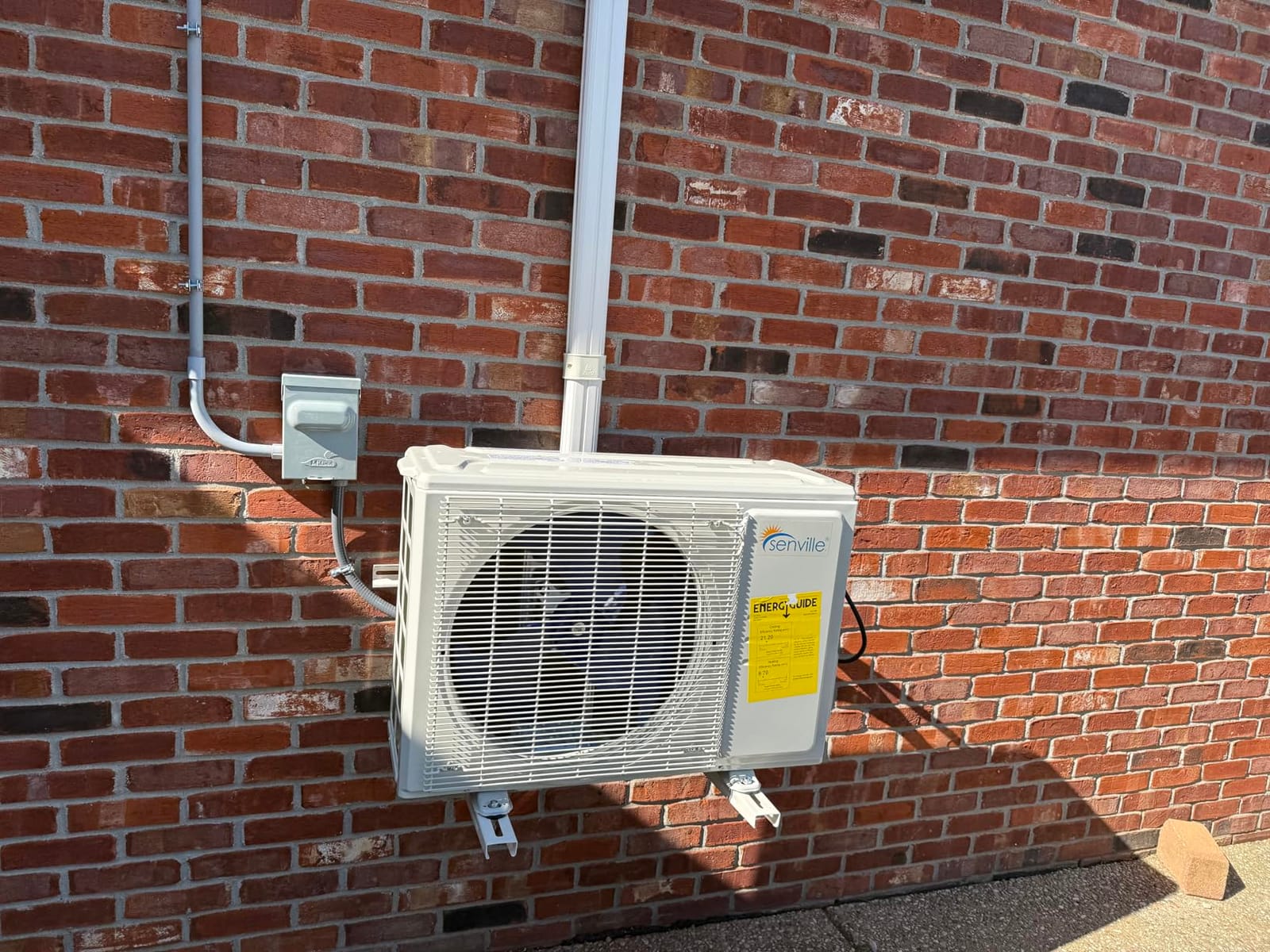

1. Senville LETO 12,000 BTU – Best All-Round DIY Heat Pump with the Biggest Owner Base
Senville LETO Mini Split Air Conditioner, Heat Pump, White, 12000 BTU
12000 BTU and 700 sq ft
20.8 SEER2 DC inverter
110V power
Alexa enabled
28 dB indoor unit
Pros
- Largest review base in this roundup at 2185 ratings
- Pre-charged 16ft line set and communication wire included
- Four-in-one cooling heat pump dehumidify and fan modes
- 110V power avoids a new high-voltage circuit
- 28 dB operation suits a bedroom
Cons
- Warranty language still requires professional installation for coverage
- Heat pump mode drops out below about 5F
- Remote only with no manufacturer app beyond Alexa
- Thinner long-term brand track record than established names

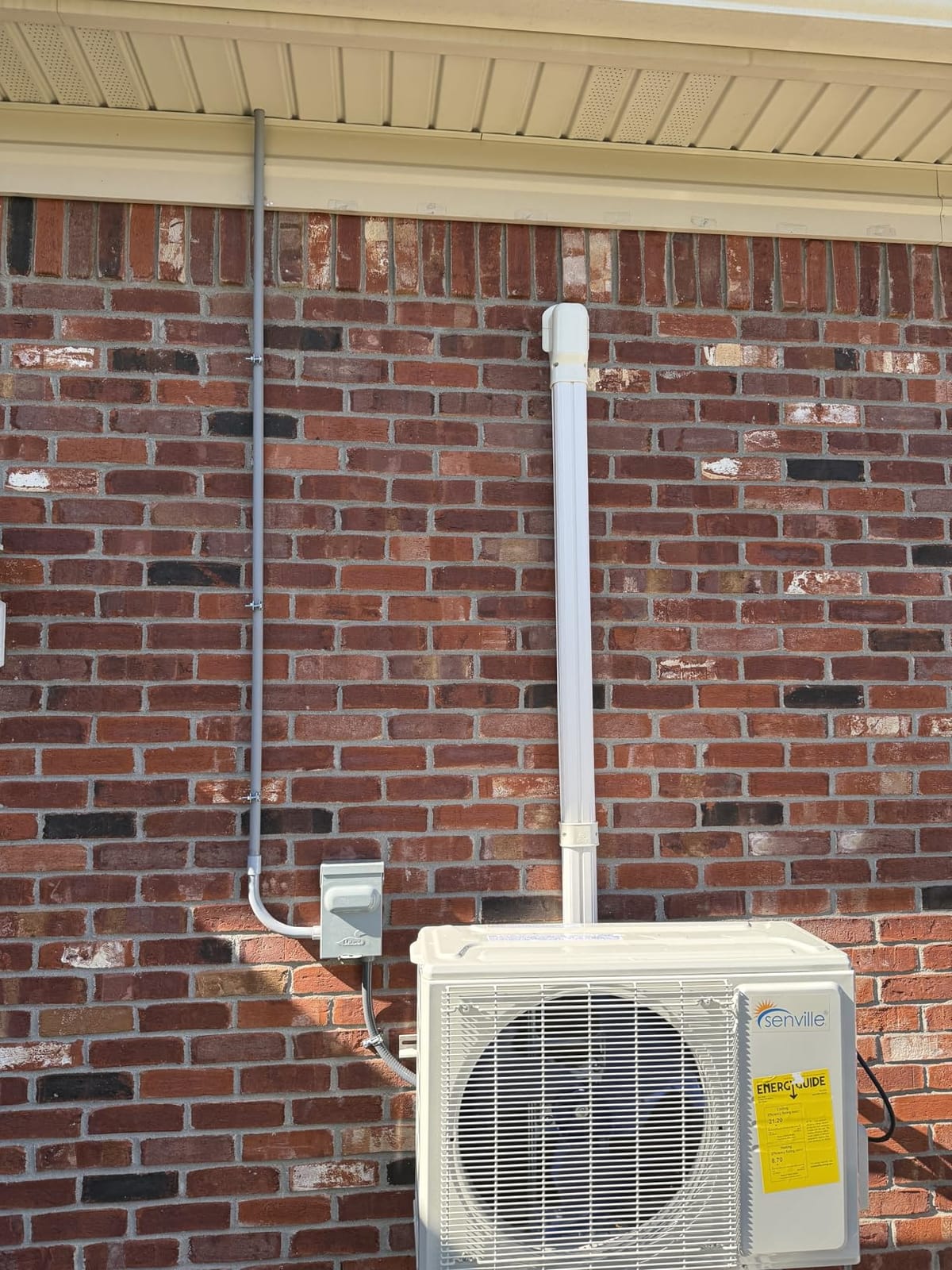

The LETO is the unit I keep recommending to first-time ductless buyers, and the reason is the review volume rather than the spec sheet. Two thousand one hundred eighty-five ratings gives you a much clearer picture of five-year behavior than any laboratory test, and at a 4.4 average the picture is consistently favorable across cooling, heating, dehumidification and fan modes.
Installation is genuinely approachable at 110V. The package includes the indoor head, the outdoor condenser, a 16 foot line set and communication wire, and the refrigerant is pre-loaded for a run up to about 25 feet. Several owners describe finishing a bedroom in a weekend with no specialty tools beyond a drill, a level and a vacuum for the drain line.
Owners consistently call out the 28 dB indoor unit as the standout feature. In a bedroom that number matters more than the SEER2 rating, because a bedroom mini split runs for hours at a time on mild nights and any fan sound becomes the thing you hear when you try to sleep.
The four-in-one mode set is also more than a spec list filler. The dehumidification mode holds a room at a setpoint without overcooling it, which solves the humidity complaint that forum owners raise constantly about standard mini splits that hold temperature while leaving the air clammy.
Who This System Suits
This suits a homeowner cooling one bedroom, one home office or one finished basement room who wants heating and cooling without touching the electrical panel. At 700 square feet of rated coverage it handles a standard bedroom, a small office or a lower-level rec room comfortably, and its 110V supply means no permit conversation in most jurisdictions.
Where It Falls Short
The warranty language is the catch. This is a professional-install system with a pre-charged convenience kit, so the coverage terms reference installation by a licensed contractor and reviewers note that labor is not covered. If you intend to install it yourself, confirm the DIY coverage terms in writing with the manufacturer before you buy.
The 5F heating limit is the other one. That covers most of the country for heating season, but if you are in a northern climate and plan to use it as primary heat below single digits, this is not the unit. Also note the remote is the primary control, so app features come through Alexa rather than a branded phone app.

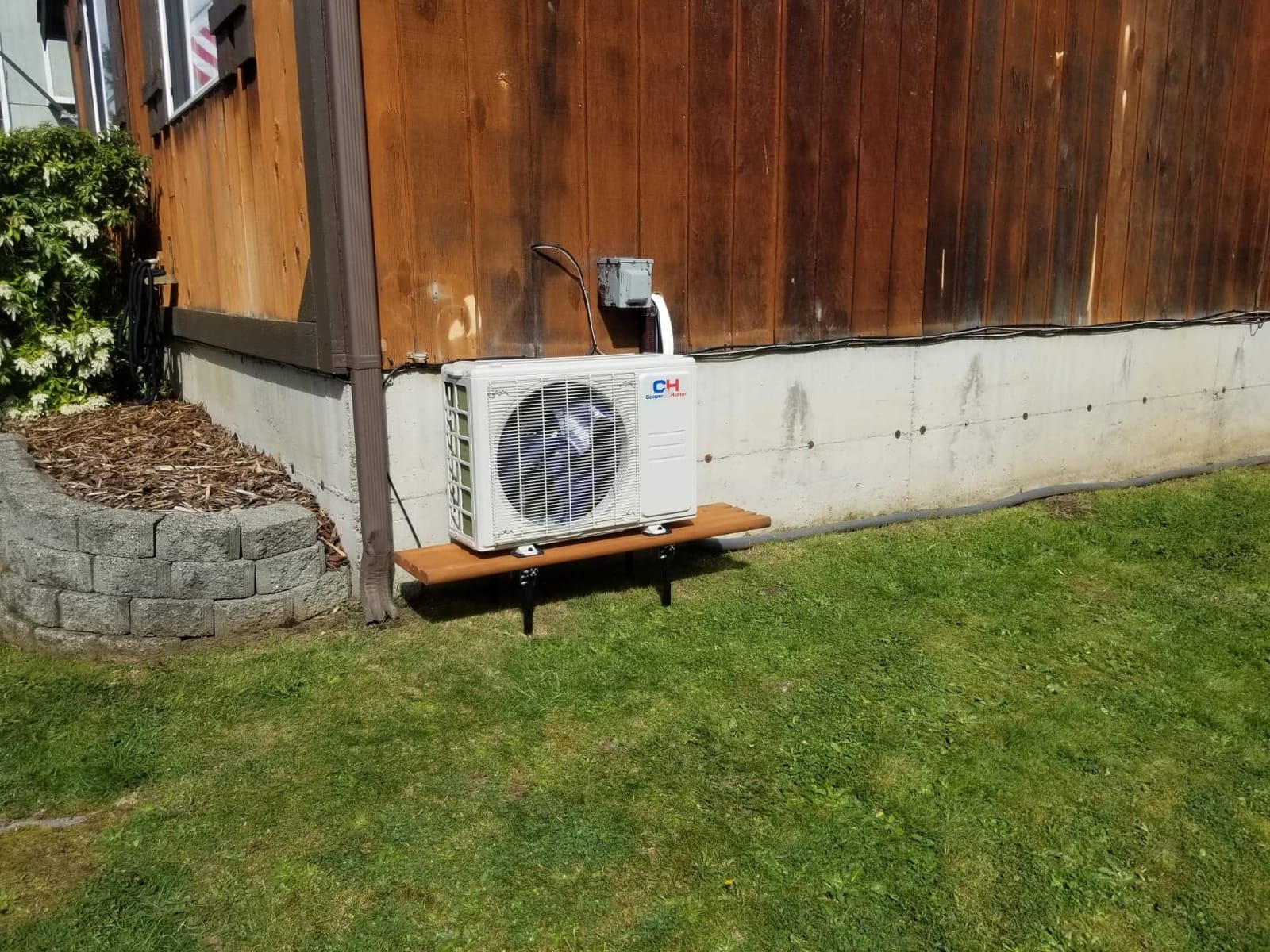

2. Cooper & Hunter MIA 12,000 BTU 115V – Efficient 26 dB Operation for Bedrooms and Studios
Cooper & Hunter MIA 12,000 BTU 115V Wall Mount Mini Split AC, 21.2 SEER2
12000 BTU and 550 sq ft
21.2 SEER2 inverter
115V plug-in
26 dB
Alexa and app
Pros
- 26 dB operation praised by bedroom and studio owners
- 21.2 SEER2 is the strongest efficiency rating among 115V units here
- Plug-in power avoids a 240V circuit
- Smart kit and app are polished and feature complete
- 7 year compressor and 5 year parts warranty
Cons
- Not a DIY system and warranty registration requires a licensed technician
- Freight delivery leaves the unit outside the home
- Second-smallest rated coverage in this roundup at 550 sq ft
- Some reports of drain clamp and outdoor fan failures
The MIA 12K is one of the quietest systems we reviewed, and owners running recording studios or home offices single it out for exactly that. At 26 dB with a 21.2 SEER2 inverter, it delivers the best efficiency-per-complexity combination for anyone who wants simple plug-in power and near-silent operation.
Several buyers installed multiple MIA units across a house and reported consistent results, which tells you something useful about matching within a product family. When the same model handles a bedroom and a larger room, the app, the remote layout and the maintenance steps stay identical.
One practical detail catches new owners. Delivery is freight, so the packaged unit is placed outside the home rather than carried to the install location. Plan the path from the driveway to the mounting position before the driver leaves, because a wall-mounted head with a 40-inch box is awkward on stairs.
The small rated coverage of 550 square feet is the constraint to plan around. It is a single-room machine by design, and pairing two of them often costs less energy at runtime than stretching one larger unit across a bigger area.
Who This System Suits
This fits a home office, recording studio, bedroom or nursery where noise is the deciding factor and an existing 115V receptacle is already in place. The smart kit gives you scheduling and remote monitoring without touching the wall unit, which matters if you want to warm the room before you get up rather than run it all day.
Where It Falls Short
This is not a DIY system, despite the plug-in power. The manufacturer requires professional installation and a licensed technician for warranty registration, so budget for a full install quote rather than an afternoon of work. Reviewers also report slow warranty response after a claim, so treat the paperwork step seriously.
A few units have shown outdoor fan failures and one preinstalled drain hose clamp leaked indoors after installation. Neither is common, but both are cheap to catch early if you inspect the drain connection and listen to the outdoor unit during the first week.
3. YITAHOME 18,000 BTU 21 SEER2 – Most Capacity for One Open Room
YITAHOME 21 SEER2 18000 BTU Mini Split AC/Heating System 208-230V, Pre-charged Inverter System with Wi-Fi & Alexa Compatibility, Cover Up to 1250 Sq. Ft, Complete Installation Kit
18000 BTU and 1250 sq ft
21 SEER2 inverter
208-230V
WiFi and Alexa
Five modes
Pros
- One of the two largest rated coverage figures in this roundup at 1250 sq ft
- 21 SEER2 inverter with up to 25 percent energy savings claimed
- Five modes with four fan speeds plus WiFi and Alexa
- Air purification features including ion and PM2.5 removal
- 135F self-cleaning cycle and auto defrost
Cons
- 208-230V requires a dedicated circuit and electrician work
- Shut-off valves and side grille are not included
- Licensed HVAC installation required
- Highest fan noise figure in the group at 49 dB
If you have one large open space rather than several small rooms, an 18000 BTU unit covers more area than anything else in this group. The 1250 square foot rating is what makes it useful for an open-plan living area, a loft, or a main floor where window AC units would need to run constantly.
The mode set is unusually generous for this price tier. Auto, cooling, drying, heating and fan across four fan speeds, with a self-cleaning function rated at 135F, means the coil gets a high-temperature cycle that evaporates accumulated dust instead of letting it coat the fins.
Owners like the purification features more than expected. Negative ion generation, electrostatic filtration and PM2.5 removal are not the reason to buy a heat pump, but in a room with carpet and pets they noticeably reduce the recirculated smell that otherwise builds up in a closed indoor unit.
Two packaging details are worth knowing before you commit. The unit arrives in two boxes that can land on different days, and the shut-off valves and side protection grille are not included. Both are minor, but both turn a single planned afternoon into a second trip to a supplier.
Who This System Suits
This suits a homeowner with one large area to condition, an addition over a garage, or a shop floor where one ceiling or wall-mounted head beats running a window unit. WiFi and Alexa control means you can pre-condition the space from a phone before arriving, which pays off in a room that is only used a few hours a day.
Where It Falls Short
At 208-230V this is an electrician project. A dedicated circuit, a disconnect, correct wire gauge and possibly a permit are all part of the job, and those costs can approach the labor a professional install would have charged for the whole system.
The 4.1 average across 462 reviews is the lowest mean in this roundup, with a meaningful share of one-star feedback. The complaints cluster around packaging gaps and install package omissions rather than cooling performance, which suggests the hardware holds up better than the box contents suggest.
4. Cooper & Hunter MIA 18,000 BTU 230V – Full-Size Comfort With App Control
Cooper & Hunter 18,000 BTU 230V Wall Mount Mini Split AC, 19.2 SEER2
18000 BTU and 1.5 ton
230V dedicated circuit
19.2 SEER2 inverter
Heating to 5F
30 dB
Pros
- 18000 BTU capacity suits larger rooms and open plans
- Five power levels give steady inverter temperature control
- Smart kit included for app scheduling and remote control
- Complete 16ft line set cable and drain extension in the box
- ETL Intertek approved and AHRI certified
Cons
- Professional installation required and explicitly not a DIY system
- Freight delivery to the curb with placement arranged by the homeowner
- 230V circuit installation is more involved than a 115V plug-in
- 19.2 SEER2 trails several competing units at similar capacity
The 18K MIA is the same platform as the 12K model scaled up for rooms where 550 square feet is not enough. Five power levels and an inverter compressor give the steadier temperature control you want in a main living space, where a unit cycling on and off is both uncomfortable and wasteful.
The box is unusually complete for a 1.5 ton system. A 16 foot pre-flared insulated copper line set, 16 feet of communication cable, a drain extension and the smart port adapter are all in the carton, which removes the most common reason a pro install quote jumps after the order is placed.
One difference from the 12K is worth flagging. This 18K does not have the same volume of owner photographs behind it, so the picture of its long-term behavior leans on a thinner set of accounts than the 550 square foot model in the same family.
Who This System Suits
This suits a main floor, a great room or a finished lower level where you want app-based scheduling rather than a wall thermostat you have to walk over to. Free U.S.-based technical support is included, which matters if you want a second opinion before the contractor starts.
Where It Falls Short
Treat this as a professional-install product. Warranty coverage assumes licensed installation, and the 230V circuit plus disconnect work pushes the total well past what a DIY buyer was hoping to spend.
At 19.2 SEER2 the efficiency is below several competitors at the same capacity, so on an annual energy cost basis you are paying more per unit of cooling than you would with a 21 or 23 SEER2 alternative. The trade is brand consistency if you already own the 12K.

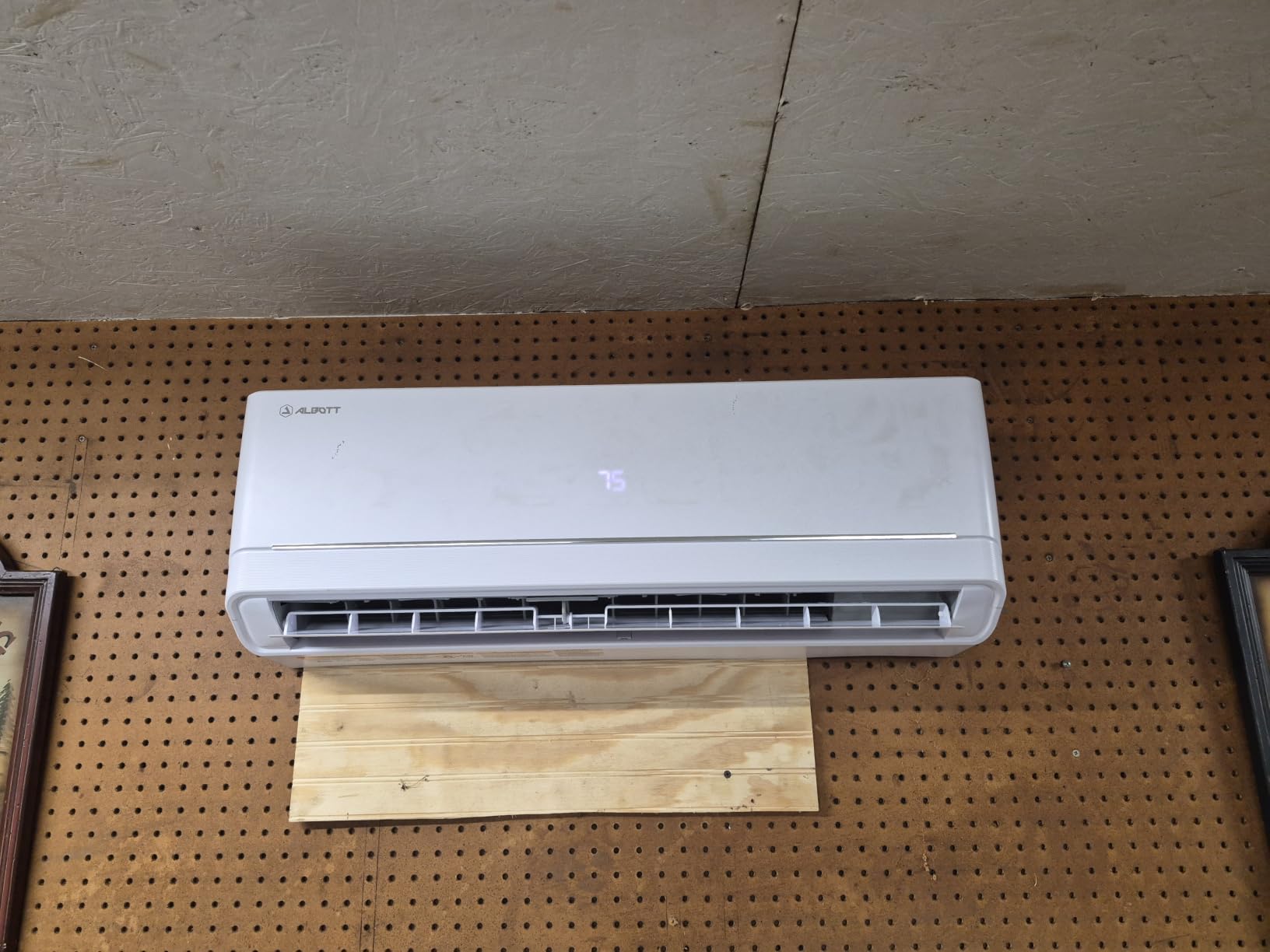

5. Albott Easy DIY Series 12,000 BTU – Easiest Install of the Systems We Reviewed
Albott Easy DIY Series 12,000 BTU 115V Mini Split AC & Heat Pump, 18 SEER2
12000 BTU and 750 sq ft
115V plug-in
18 SEER2 inverter
Pre-wired and no-vacuum outdoor
5F to 122F
Pros
- Pre-wired indoor side and no-vacuum outdoor unit
- Multiple DIYers finished in roughly two to three hours
- 115V plug-in power keeps electrical work minimal
- 29 dB operation described as near inaudible
- Strong cooling across 750 sq ft
Cons
- Manual is largely in mixed English and Chinese
- App and remote connectivity can be difficult to establish
- Thin-gauge line set wire and bracket compared with name-brand systems
- One documented factory refrigerant leak with a restocking fee

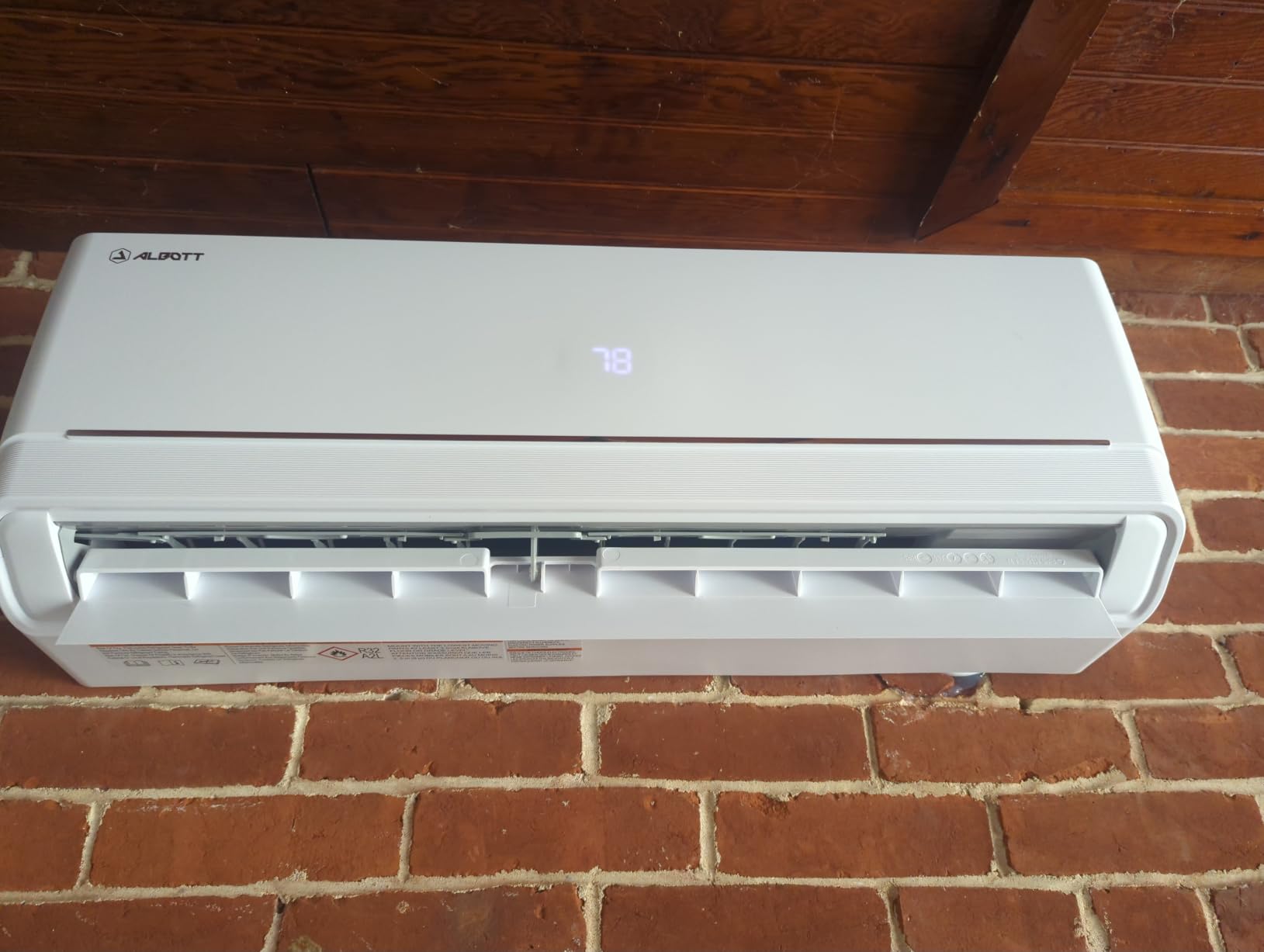

The Albott Easy DIY series is the one we recommend to someone who has never opened a ductless system before. The design decision that matters is the pre-wired indoor side and the no-vacuum outdoor unit, which removes both the electrical wiring work at the head and the evacuation step at the condenser.
Owners report finishing the install in roughly two to three hours. That is a completely different experience from a pro job spanning two visits, and it is why this system shows up in so many first-install accounts despite a modest rating average.
Cooling performance is the real story underneath the paperwork friction. Owners report strong output across the full 750 square feet, including setups where they paired it with ceiling fans to move air down the far end of a long room.
The maintenance features suit a homeowner who does not want a service contract. Removable filters, detachable air blades and a self-cleaning cycle cover most of what a technician would do on an annual visit, which is a meaningful share of the cost you would otherwise pay to maintain a ductless head.
Who This System Suits
This suits a first-time installer working in a small basement room, a bedroom, or a home office where a 115V receptacle is already present. The 5F to 122F operating range covers most climate zones for both heating and cooling, and the sleep mode with a 24 hour timer handles overnight use well.
Where It Falls Short
The documentation is the biggest practical problem. Owners repeatedly note a manual written in mixed English and Chinese, which turns a genuinely easy install into a guessing game at the moment when the wiring diagram matters most. Budget extra time, or find a clear installation walkthrough before you start.
The included line set, control wire and mounting bracket are thinner gauge than name-brand equipment. That does not affect cooling, but it does make the install more sensitive to a kink and harder to repair later. One owner also documented a factory refrigerant leak with a restocking fee blocking the return, which is worth factoring into your purchase decision.

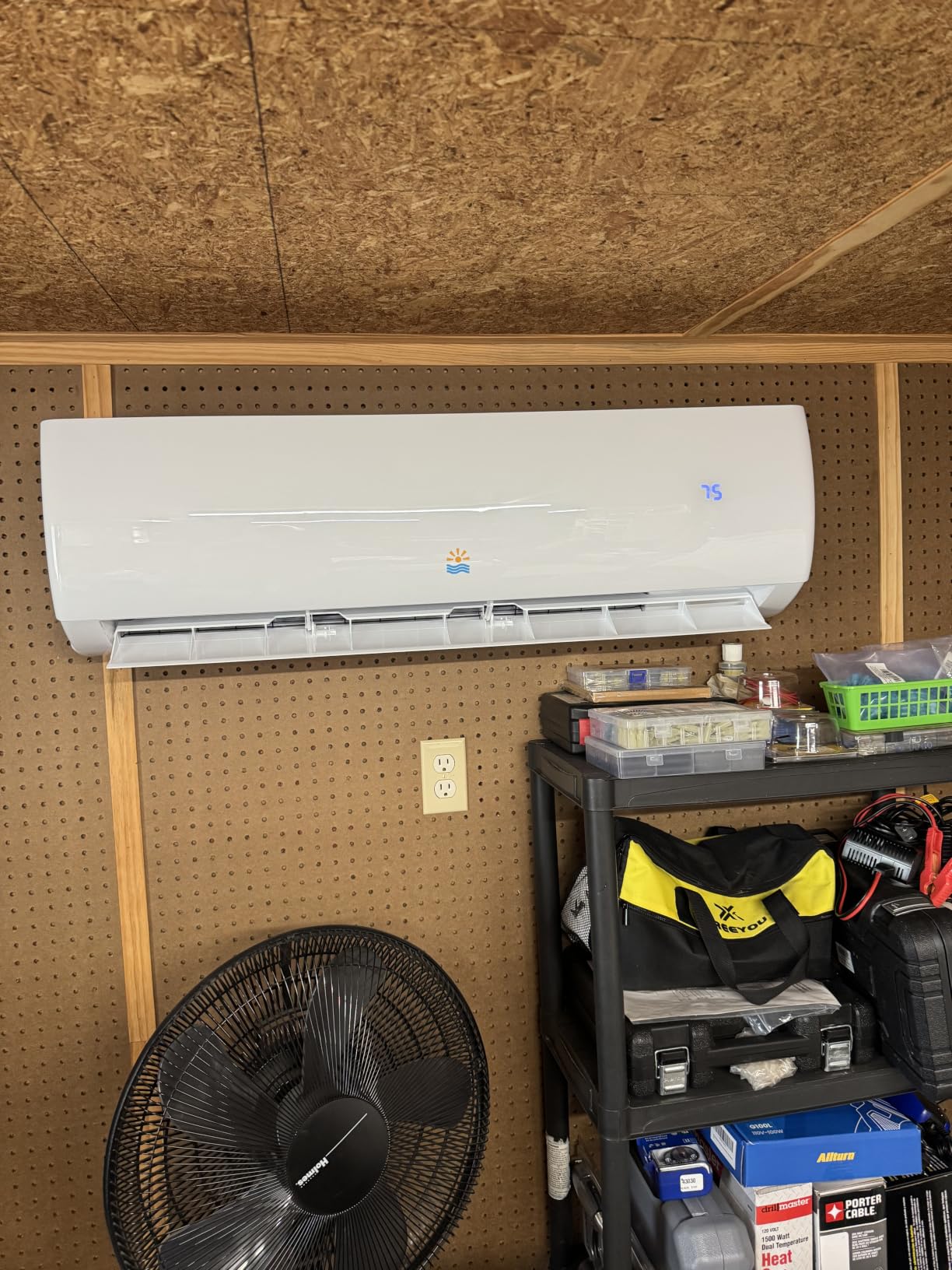

6. Rellytech 18,000 BTU 21 SEER2 – One of the Most Complete Installation Kits in the Box
Rellytech Mini Split AC/Heating System 18000 BTU Heat Pump, 21 SEER2 230V
18000 BTU and 750 sq ft
21 SEER2 inverter
230V
Heating to -13F
32 dB
Pros
- A 4.4 average with 79 percent five-star across 334 ratings
- 21 SEER2 inverter efficiency
- Operating range from -13F to 122F
- One of the most complete install kits including cable drain pipes and template
- ETL and AHRI certified with 24-hour customer service
Cons
- Power cord is not included
- Licensed HVAC technician installation required
- 208-230V supply needs a dedicated circuit
- Warranty terms are not itemized into parts and compressor coverage

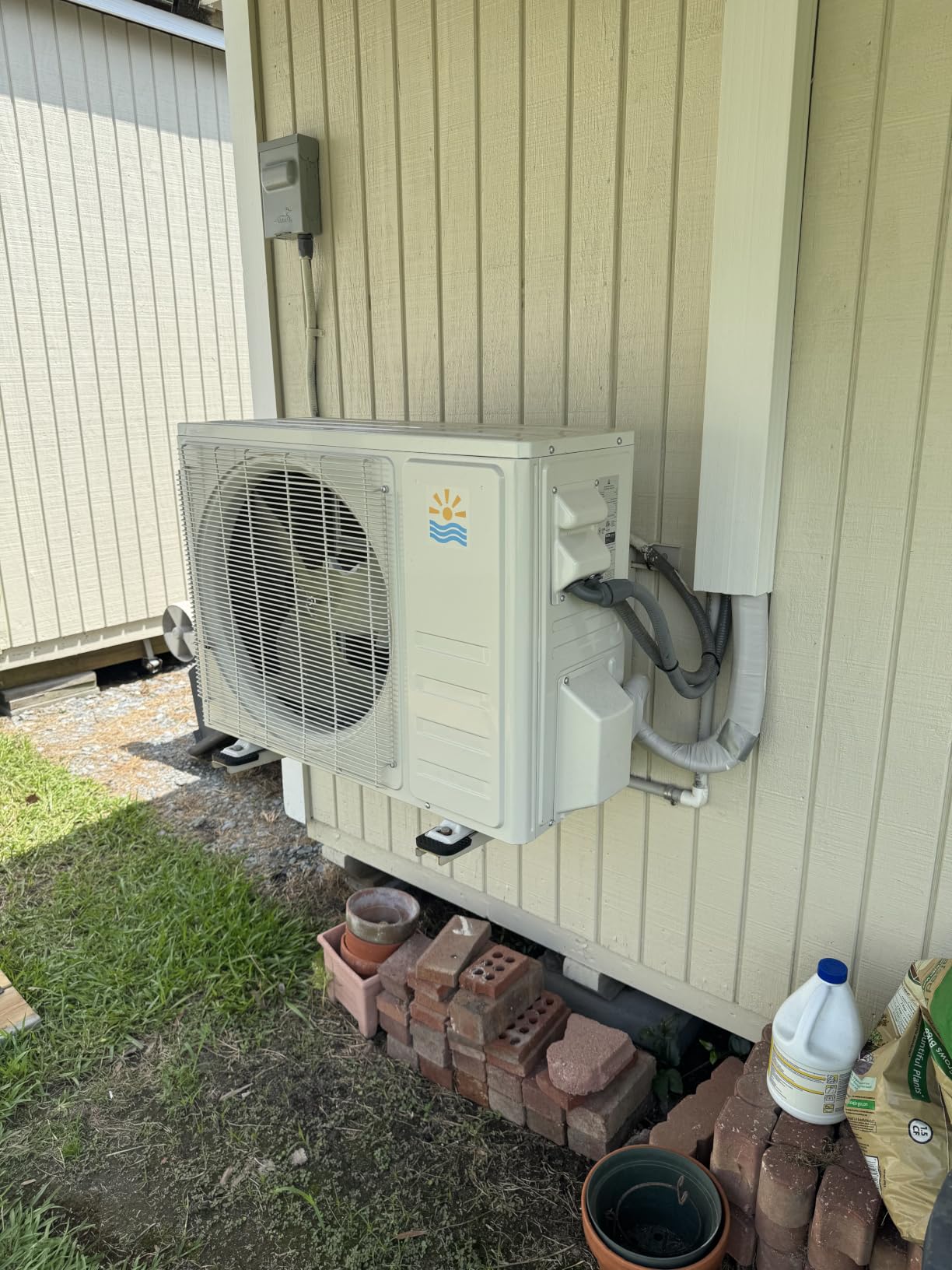

The Rellytech 18K pairs a 4.4 average with the most complete box contents here. Sixteen feet of copper pipe, a 19 foot connection cable, two drain pipes, rubber pads, sealing clay, insulation tape and an installation template all ship together.
That completeness matters more than it sounds. Most install delays come down to one missing item, and the standard set of consumables a technician would carry is exactly what a homeowner forgets to buy. Owners report the included kit removed that entire step.
Cold weather capability is the differentiator at this capacity. An operating range from -13F to 122F means the heat pump mode stays useful well below the point where standard units on this size drop into auxiliary heat or stop producing useful warmth.
The mode set is broad for a unit in this segment: cooling, heat pump, dry and fan with auto-defrost, turbo, iFEEL, sleep, silent and eco. The silent mode and the digital-display remote are the two features owners mention most.
Who This System Suits
This suits a homeowner in a colder zone who wants one system to handle a large open room through a full heating season, and who prefers having every consumable in hand before the first tool comes out. The 24-hour customer service line also helps when you are alone with an unfamiliar install.
Where It Falls Short
The power cord is not included, which is a small but real gap for an 115V-adjacent buyer and a prompt trip to a supplier for a 230V-rated cord. Licensed installation is required, and the warranty description lacks an itemized split between parts and compressor coverage, which makes the fine print worth reading carefully before you commit.
Unit dimensions at nearly 40 inches wide are larger than most wall-mounted heads in this roundup. Measure the mounting wall and the clearance above the unit before ordering.

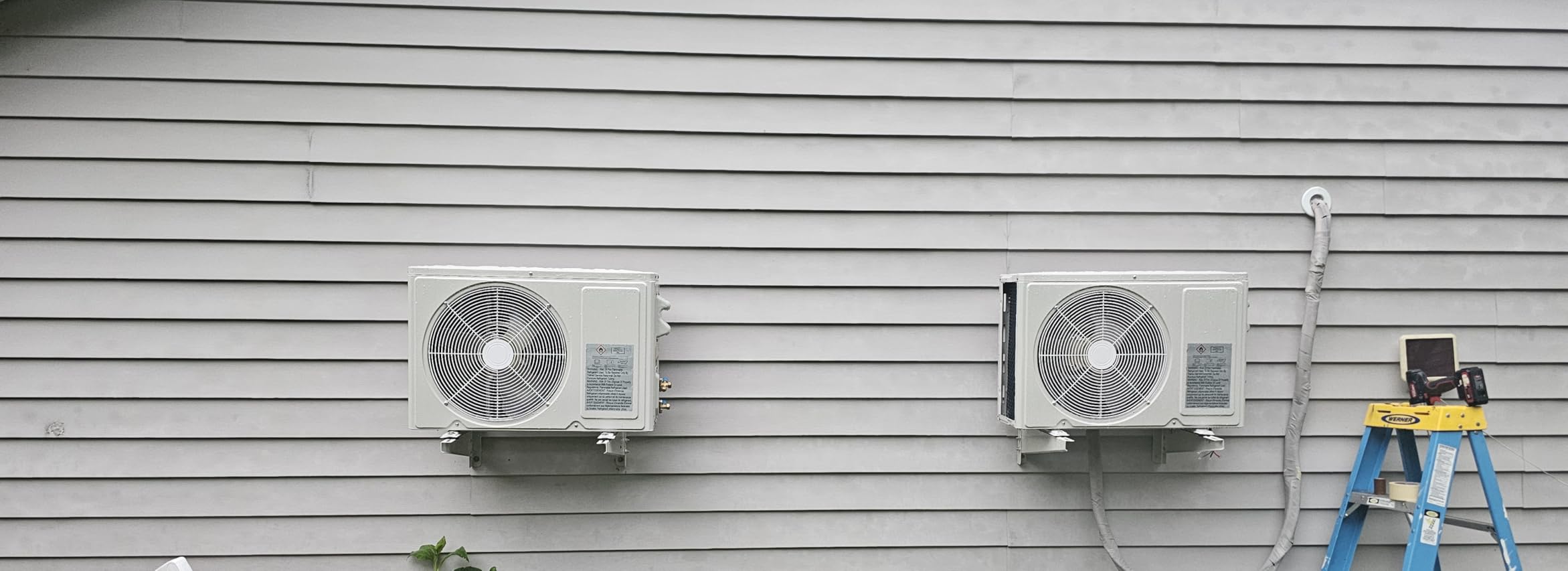

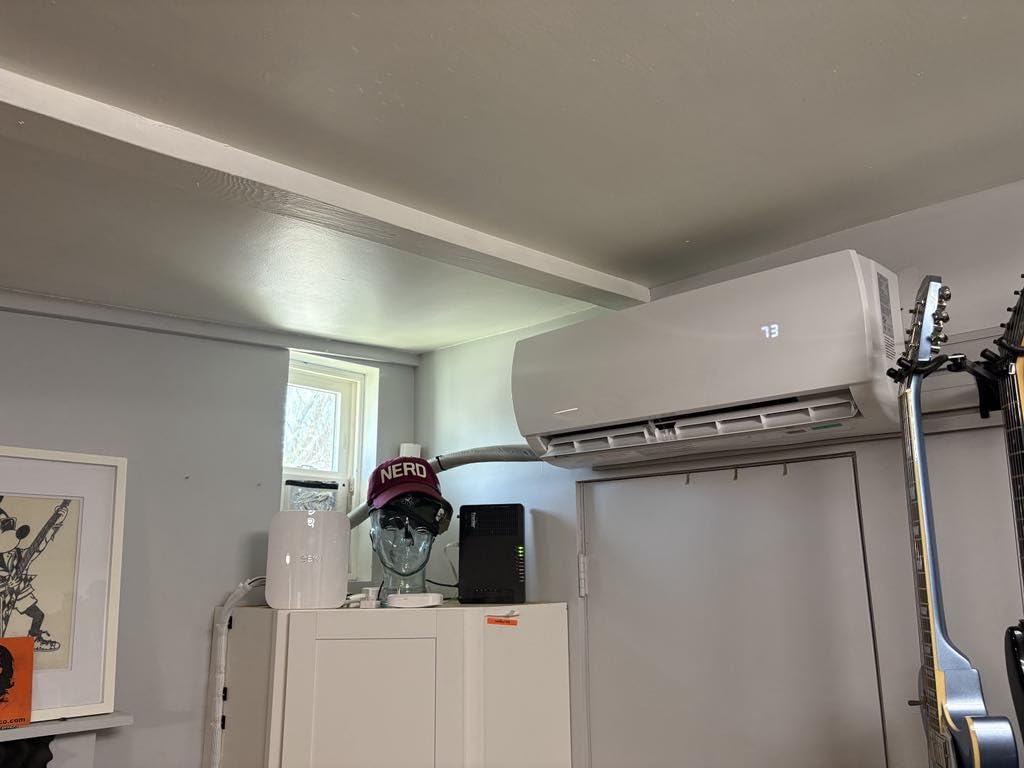

7. Mountman 18,000 BTU 19 SEER2 – Best Value Sleep Mode at Full Room Capacity
Mountman 18000 BTU Mini Split AC/Heating System,19 SEER2 208/230V Energy Efficient Ductless Inverter System,Cools Up to 1250 Sq.Ft with Pre-Charged Condenser,Heat Pump & Installation Kits
18000 BTU and 1250 sq ft
19 SEER2 inverter
230V
26 dB sleep mode
Pre-charged R32
Pros
- Tied for the top average rating in this roundup at 4.5
- 26 dB sleep mode among the quietest figures we saw
- Cools up to 1250 sq ft from an 18K inverter
- Eco mode rated for up to 30 percent energy savings
- Self-cleaning high-temperature cycle and automatic defrost
- Pre-charged R32 condenser with install kit
Cons
- 208-230V supply requires a dedicated circuit and electrician
- Remote-only control with no WiFi or app listed
- Manufacturer information is sparse on the listing
- Limited warranty with no itemized coverage
The Mountman 18K pairs a top rating in the group with a very low sleep mode figure, and it does both while cooling up to 1250 square feet. That combination of capacity and noise control is unusual at this size, where most manufacturers trade one for the other.
The pre-charged R32 condenser is the DIY-relevant detail. The sealed circuit is filled at the factory, so there is no evacuation step and no refrigerant handling at the install site.
Owners focus on the maintenance side. A high-temperature self-clean cycle, automatic defrost and a washable anti-dust filter that rinses in a sink cover the majority of what a service visit would otherwise handle, and the filter rinse is a five-minute monthly job.
Eco mode is the running-cost story. Owners report up to 30 percent energy savings in eco alongside a turbo boost for the hottest afternoons, which gives you two useful operating points instead of a single fixed efficiency curve.
Who This System Suits
This suits a large open-plan room, a sunroom, a shop or a main floor where one head has to cover a lot of square footage and where noise at night still matters. The remote display auto-shuts off after 10 seconds, so the unit does not glow across a dark room.
Where It Falls Short
Remote-only control is the limitation. There is no WiFi or app connectivity listed, so you are running schedules from the handheld remote unless you pair it with an external smart controller. For an owner who wants to pre-condition a space from a phone, that rules it out.
The warranty is described as limited with no itemized parts or compressor coverage, and the manufacturer details on the listing are thin. If long-term coverage is a deciding factor for you, get the terms in writing before buying rather than assuming a five-year compressor claim.

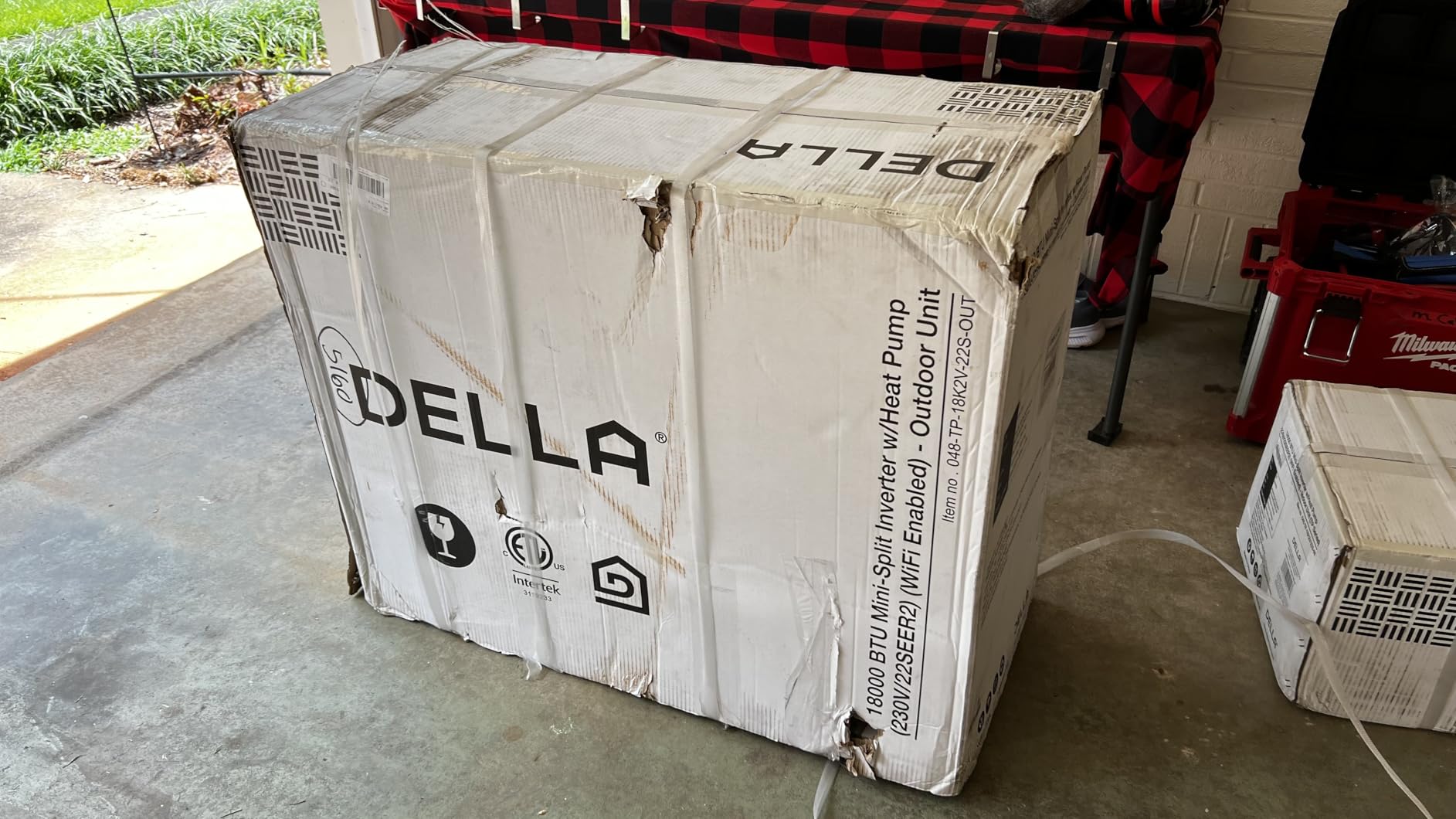

8. DELLA Optima 18,000 BTU Hyper Heat – Best Efficiency and True Cold Climate Heating
DELLA Optima Series 18000 BTU Mini Split AC with Soft Airflow, Hyper Heat Down to -13°F, Up to 1000 Sq. Ft, 23 SEER2 230V,Energy Star,WiFi & Alexa,Inverter AC,1.5 Ton Pre-Charged Heat Pump,16.4ft Kit
18000 BTU and 1000 sq ft
23 SEER2 and 10 HSPF2
Heating to -13F
Energy Star
34 dB
Pros
- 23 SEER2 and 10 HSPF2 is the strongest efficiency pair in this roundup
- Heats down to -13F with Gold Fin coil technology
- Soft Airflow design avoids harsh direct drafts
- Energy Star certified and AHRI listed
- Della app and Alexa with I Feel remote sensor
Cons
- 230V system requires a dedicated circuit and electrical work
- Still needs vacuuming and a 20A fuse despite pre-charged marketing
- App-only power limit control with a 41F anti-freeze lock
- Some units need a power cycle to restore app control
On paper this is the most capable system in the roundup. A 23 SEER2 cooling rating paired with 10 HSPF2 for heating is the best efficiency combination we found, and it means lower annual energy cost than any other unit here for the same room.
The Gold Fin coil and the -13F heating rating are what separate it from a standard cold-climate unit. Several owners installed it solo in about nine hours and reported large savings against contractor bids, which is the outcome most DIY buyers are chasing.
Soft Airflow is the sleeper feature. Rather than blowing conditioned air directly at the room, the unit disperses it, and reviewers mention it as the reason the system works for a bedroom or an office where a direct draft was previously unacceptable.
The design and support package is also better than the norm. A Red Dot design award, 24/7 live support and a 16.4 foot pre-flared copper line set in 1/4 inch and 1/2 inch with a drain hose included all add up to a kit that is ready to connect.
Who This System Suits
This suits a homeowner in a cold climate zone who plans to heat with the mini split rather than treat it as supplemental cooling, and who wants the lowest operating cost per unit of capacity. The -13F rating means it stays useful in the conditions where a 5F-rated unit would be calling for backup heat.
Where It Falls Short
The pre-charged claim needs a caveat. Owners still vacuum the system and fit a 20A fuse, so budget for a vacuum pump and gauges if you do not already own them. It is a semi-DIY install rather than a tool-free one.
Control has sharp edges. Power limit control exists only in the app, and anti-freeze mode locks the setpoint at 41F with no adjustable range between 41F and 61F, which is awkward in a room you also want to keep warm. Some owners have needed a power cycle roughly every three months to restore app control, and cold-weather coil icing is reported by a few owners in deep cold.
9. TOSOT 9,000 BTU 115V WiFi – Smallest and Simplest System for Workshops and RVs
TOSOT 9,000 BTU Mini-Split Air Conditioner, Wifi Enabled Ductless Inverter Split System AC Unit Heating System, Compatible with Alexa – 20 SEER2 115V
9000 BTU and 0.75 ton
20.5 SEER2 inverter
115V plug-in
Heating to -13F
25 dB
Pros
- 4.5 average with a 207 review base and 75 percent five-star
- Gree based hardware with the mature Gree app and Alexa
- 22 to 36 dB operation that suits bedrooms
- 115V plug-in power makes it one of the easiest to install
- Cools to 122F and heats down to -13F
- LED display can be switched off for dark rooms
Cons
- Manual torque table lists incorrect nut sizes and a wrong wiring diagram
- Supplied connecting cord fails NEC requirements and must be replaced
- Condenser can arrive dented with slight vibration
- Some units need the app reconnected periodically
The TOSOT 9K is the smallest true system here and the easiest to place. At 0.75 ton and 115V it covers a workshop, a detached office, an RV or a small bedroom without touching the electrical panel at all.
It runs on Gree hardware with the Gree app and Alexa support, which is the quiet advantage. Most entry-level units ship with a bare-bones app that reviewers describe as frustrating to pair, and the Gree platform has been refined over years.
Heating down to -13F on a 9000 BTU capacity is genuinely useful, and that figure is unusual at this size. It means the unit is not cooling-only in disguise, which is important if you are replacing a window AC and want heat in the shoulder months.
The switchable LED display is a small detail that shows the manufacturer thought about bedrooms. Most units glow at full brightness all night, and this one turns off from the remote.
Who This System Suits
This suits a workshop, a garage office, a tiny home, an RV or a small bedroom where 115V plug-in power is the deciding requirement and the room does not need more than 9000 BTU. Several repeat buyers own multiple capacities across the range.
Where It Falls Short
Two documentation problems stand out for a DIY buyer. The manual torque table lists incorrect nut sizes and the indoor wiring diagram is wrong, so you should verify flare and connection specs against the model number rather than trusting the printed sheet.
More seriously, the supplied connecting cord is SOW wire that does not meet NEC requirements for a wall penetration and has to be replaced before use. That is a safety item, not a preference. Condensers have also arrived dented and developed slight vibration or hum, so inspect the unit on arrival.
10. MRCOOL DIY Star 4th Generation 12,000 BTU – The Only True Tool-Free DIY Install
MRCOOL 12,000 BTU WiFi Smart DIY Star 4th Generation Ductless Remote Controlled Mini Split Air Conditioner with Sleep Mode Function, White
12000 BTU and 500 sq ft
22 SEER2 Energy Star
115V plug-in
Quick Connect line set
23.5 dB
Pros
- One of the quietest indoor figures in this roundup at 23.5 dB
- Pre-charged Quick Connect line sets mean no flaring brazing or evacuation tools
- Low refrigerant alarm and air filter maintenance alerts
- WiFi smart kit with app and voice control
- Auto restart after a power outage
Cons
- Smallest rated coverage here at 500 sq ft
- Installation kit omits a power cord for some configurations
- Only 2 power levels and limited user-adjustable settings
- R-410A refrigerant rather than R-32 or R-454B
- Highest cost per BTU in this roundup
This is the system the whole category is measured against. The Quick Connect line sets arrive pre-charged and sealed, so there is no flaring, no brazing, no nitrogen purge, no vacuum pump and no gauges. A homeowner with a drill and a level can complete the install.
Owners on HVAC forums describe the 4th and 5th generation installs as four to six hours of work for a handy homeowner, and the pre-charged lineset delivering what the marketing claims. That is the difference between a DIY mini split and a professional system with a convenient box.
The diagnostic alerts are the feature more people underrate. A low refrigerant alarm and air filter cleaning or replacement reminders catch small problems before they become a service call, and several long-term owners report that the compressor has been the most reliable part while control boards and WiFi modules age first.
At 23.5 dB this is among the quietest indoor units in the roundup, which pairs well with the sleep mode and the auto restart after an outage.
Who This System Suits
This suits a homeowner who is doing the work themselves and wants to avoid the parts of ductless installation that require certification. At 500 square feet of rated coverage it is a single-room system, so think bedroom, home office or a small converted space rather than a main floor.
Where It Falls Short
The cost per BTU is the highest in this roundup, and it buys a specific thing: an install that requires no specialty tools and no licensed tradesperson for the refrigerant work. If you are hiring a contractor anyway, a cheaper unit with the same compressor family will cost you less overall.
Two practical notes. The kit omits a power cord for some configurations, so confirm what ships in the box. The R-410A refrigerant is the older, higher global warming potential type rather than R-32 or R-454B, which matters only if you care about the long-term service supply.

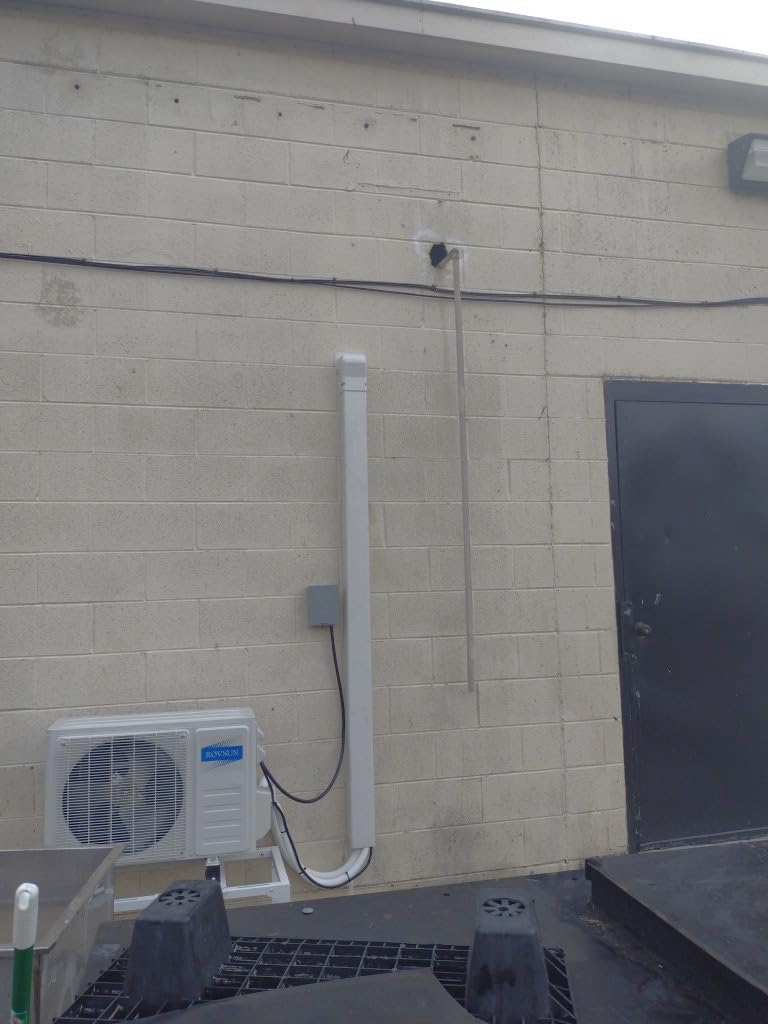

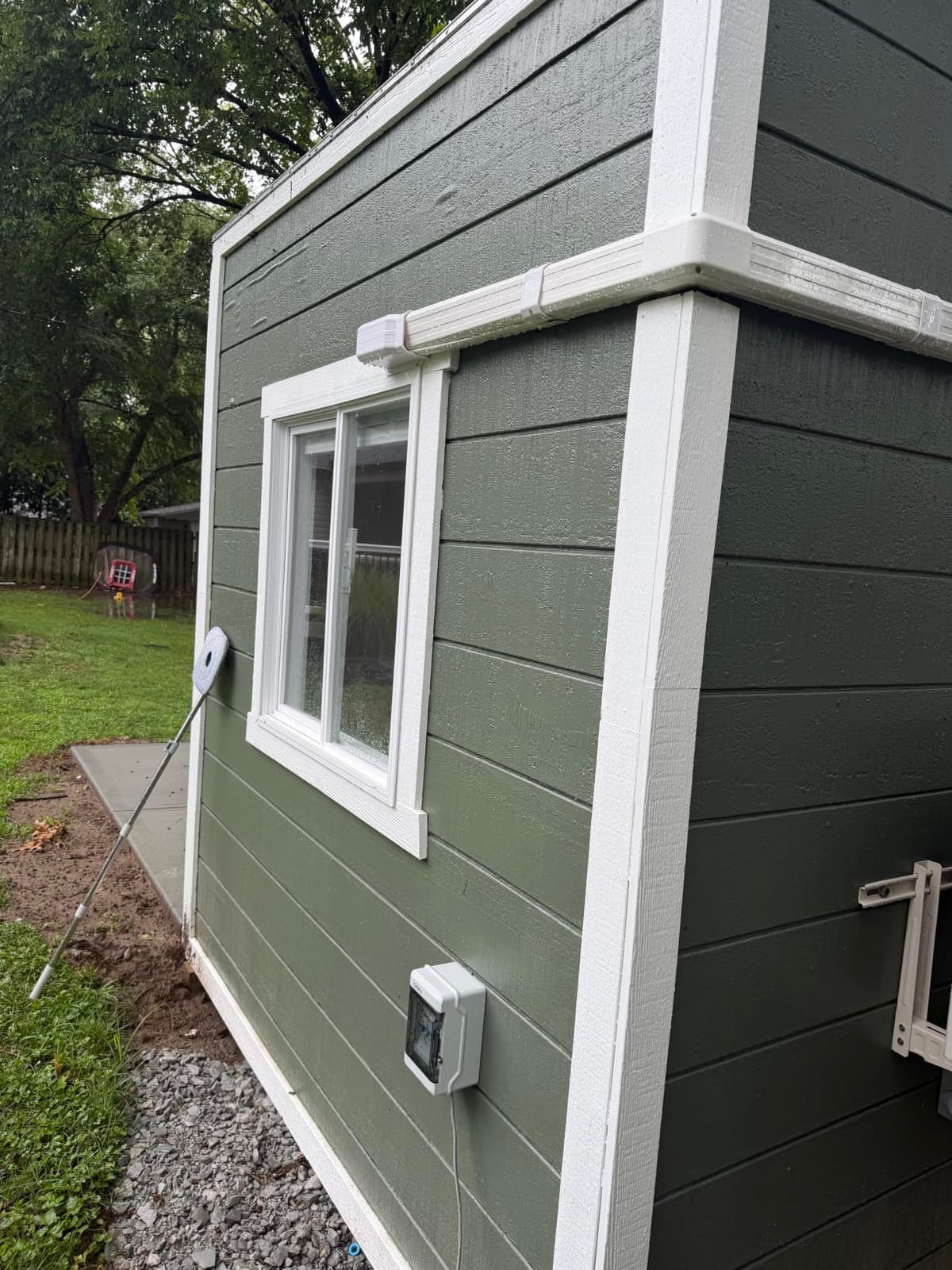

11. ROVSUN 18,000 BTU 23 SEER2 – Widest Temperature Range at 18,000 BTU
ROVSUN 18,000 BTU Mini Split AC/Heating System with Inverter, 23 SEER2 Energy Saving 230V Ductless Split-System Air Conditioner with Pre-Charged Condenser, Heat Pump, Remote Control & Installation Kit
18000 BTU and 1.5 ton
23 SEER2 inverter
230V
Pre-charged to 25 ft
27 dBa mute mode
Pros
- 23 SEER2 inverter efficiency with 40 percent energy savings claimed
- Operating range from -13F to 131F
- 27 dBa ultra-quiet mute mode
- Pre-charged up to 25 feet for easier installation
- ETL and AHRI certified with a full feature set
Cons
- Professional HVAC installation required
- Power cord must be purchased separately
- Two boxes may arrive at different times
- 1 year warranty is the shortest stated term here
- 230V supply may need a dedicated circuit
The ROVSUN 18K pairs 23 SEER2 efficiency with an operating range from -13F to 131F, which is the widest span we saw in this roundup. The upper figure means it holds cooling performance on the hottest afternoons rather than throttling near its limit.
The condenser is pre-charged up to 25 feet and the 16.4 foot line kit is included, so the sealed circuit work is done before it reaches you. What remains is the physical install and the electrical connection.
Who This System Suits
This suits a large room or open plan in a climate with both extreme cold and extreme heat, where you want one system covering the full range. The mute mode at 27 dBa and the four-way swing make it usable in a bedroom-adjacent space.
Where It Falls Short
The one-year warranty is among the shortest terms in this roundup, and it is a real consideration on an 18000 BTU compressor. Professional installation is required, the power cord is a separate purchase, and the two-box delivery can split across days.
With only 136 ratings the review base is the thinnest here, so you have less long-term evidence to lean on than with the Senville LETO or the Cooper and Hunter MIA models.

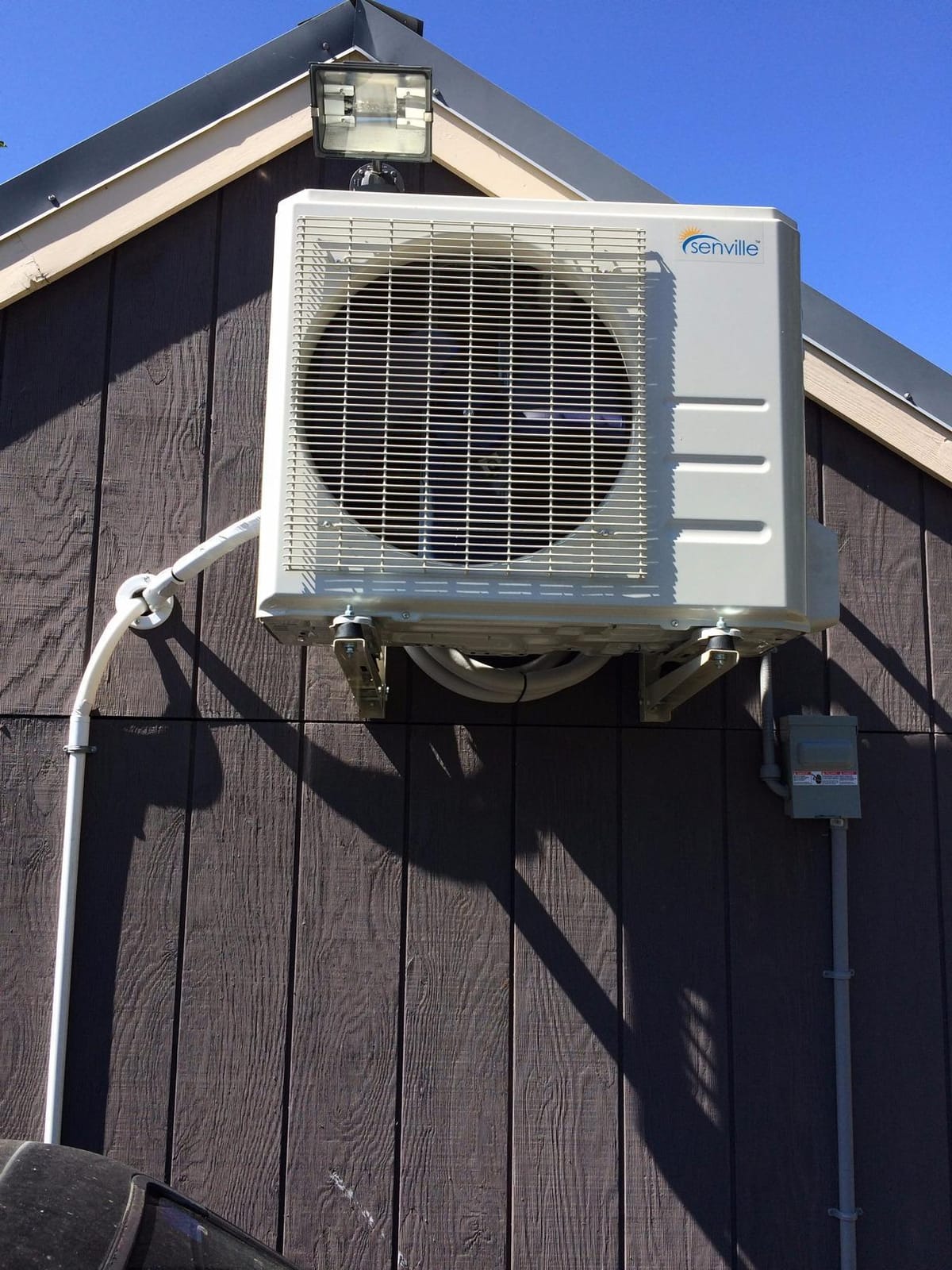

12. Senville AURA 18,000 BTU – Long Compressor Warranty and Coldest Rated Heating
Senville AURA Mini Split Air Conditioner, Heat Pump, White, 18000 BTU
18000 BTU and 1000 sq ft
21.5 SEER Energy Star
Heating to -22F
27 dB
Alexa enabled
Pros
- 7 year compressor warranty among the longest terms in this roundup
- Heating rated down to -22F
- 27 dB indoor operation
- 21.5 SEER and Energy Star certified
- 16ft copper line set and wiring harness included
Cons
- Professional installation required and not a DIY system
- Outdoor unit is tall at 113 inches
- Annual energy consumption listed at 3500 kilowatt hours
- Parts coverage is 2 years against a 7 year compressor term
The AURA carries one of the longest compressor warranties in this roundup, and it is paired with the lowest published heating limit at -22F. If you are in a hard heating climate, those two numbers together do more for long-term peace of mind than a higher SEER2 figure.
A 4.5 average across 507 ratings with 82 percent five-star is also one of the more consistent rating distributions here, which suggests the unit performs as advertised rather than occasionally.
Alexa control runs through the app and voice, so a household already using voice assistants can fold the system into an existing routine instead of learning a separate interface.
Who This System Suits
This suits a homeowner in a cold zone who wants heating performance down well below zero and who wants the compressor covered for seven years. At 1000 square feet of coverage it handles a large bedroom, a main floor section or a finished basement room.
Where It Falls Short
This is a professional-install system. Coverage assumes a licensed technician, so a DIY buyer should price the installation labor before treating it as an option, and the parts coverage of two years is thinner than the compressor coverage suggests.
The outdoor unit stands 113 inches tall, which is a real constraint against fences, decks and low overhangs. Plan mounting clearance before ordering, and note the listed annual energy consumption of 3500 kilowatt hours is higher than several smaller systems here.
How to Choose: Sizing, Voltage, Warranty and Cold Climate
Size the system by heat load, not square footage alone. A useful starting rule is roughly 600 square feet of standard-height, average-insulation room per 12000 BTU, then adjust for ceiling height above eight feet, west or south facing glass, a top floor, or a room that stays warm from appliances. Undersizing causes a unit that runs continuously and never dehumidifies properly, while oversizing causes short cycling, frequent defrost cycles and a comfort complaint that feels like the system never quite catches up.
Choose 115V when the room is small and the electrical panel already has a usable receptacle. The 9000 BTU and 12000 BTU units here run on 110 to 115 volts, which is the difference between swapping an outlet and hiring an electrician. A 230V system needs a dedicated circuit, a disconnect within sight of the outdoor unit, correct wire gauge for the run length, and in many municipalities a permit plus an inspection. That electrical work is where most of the DIY savings disappear, so factor it into the decision rather than discovering it at the breaker.
Read the warranty language before anything else. Several units here ship with a pre-charged line set as a convenience and still condition coverage on professional installation. Only the systems marketed explicitly as DIY with dedicated DIY coverage language, such as the MRCOOL line and the Albott Easy DIY series, tell you in plain terms that self-installation is permitted. Ask the manufacturer in writing if the language is ambiguous, because a denial after year two is an expensive lesson.
For cold climates, treat the low ambient rating as the deciding number rather than the SEER2 figure. Units rated to 5F need backup heat below that point, units rated to -13F cover most cold zones with the heat pump alone, and the Senville AURA extends to -22F. A higher efficiency rating saves money every season; a low ambient rating determines whether the system can carry your heat load at all.
Smart control is worth factoring in but rarely worth paying for on its own. App control with scheduling and a remote sensor that follows you around the room is genuinely useful in a bedroom or an office. In a garage or workshop, a handheld remote does the same job at a lower total cost.
DIY Installation Mistakes That Cost Homeowners Money
Most DIY failures come down to six things, and every one of them shows up repeatedly in homeowner accounts on HVAC forums.
Kinking the line set. The copper or insulated line gets creased while you route it through a wall, and the restriction starves the compressor. Make the bends in one continuous, gentle sweep and never use the pipe as a handle.
Running the condensate line without a trap or slope. The drain needs a consistent fall and a trapped section. Get it wrong and water backs up into the pan, and in winter a frozen line splits it. This is the most common indoor water complaint we saw.
Short cycling from poor sizing. A unit that is too large for the room cycles on and off, which drives defrost cycles, raises energy use and wears the compressor faster than steady operation ever would.
Mounting the indoor head in the wrong place. Behind a door, tight into a corner or low on a wall all starve airflow. The head needs clearance on three sides and open air across its face.
Skipping the permit and the inspection. Requirements vary wildly by municipality, but unpermitted electrical work is the item home inspectors and buyers flag most often. Check locally before you start, not after.
Budgeting nothing for a rescue call. Homeowners who hired a technician to correct a failed DIY install report paying into the four figures. Put that amount aside as a contingency and it turns a crisis into an expense.
One more practical habit pays for itself: run the system for a full cycle on day one and again after a week, then listen for gurgling in the indoor head and check the outdoor unit for vibration on its pad. Rattling and hissing that nobody hears during the first ten minutes often show up once the system reaches steady state.
Frequently Asked Questions
Who makes the best DIY mini split system?
MRCOOL is the strongest true DIY brand on the U.S. market because its pre-charged Quick Connect linesets remove the need for a vacuum pump, gauges and flaring. Zone Air is the other brand built specifically around homeowner installation, with U.S.-based support. Everything else sold as DIY, including Senville, Pioneer, Blueridge, TOSOT, Della and Cooper and Hunter, is a standard ductless heat pump that ships with a convenience line set and usually conditions warranty coverage on licensed installation.
Are DIY mini splits any good?
The hardware is the same quality as professional systems because it comes from the same manufacturers. What changes is the installation, and a pre-charged system without flaring or evacuation removes the riskiest part of the job. Done correctly, owners report four to nine hour installs and years of trouble-free operation. Done with a kinked line set or a missing condensate trap, the same hardware underperforms and may not be covered.
What is the easiest DIY mini split system to install?
The MRCOOL DIY Star series is the easiest because the pre-charged Quick Connect fittings mean no flaring, no brazing, no nitrogen purge and no vacuum pump. At 115V it also plugs into a standard receptacle. Among the units in this roundup that are designed specifically for self-installation, the Albott Easy DIY series is close behind with a pre-wired indoor side and a no-vacuum outdoor unit.
What size mini split do I need?
Most homes need a 9000 BTU unit for a small room up to about 450 square feet, a 12000 BTU unit for roughly 450 to 800 square feet, and an 18000 BTU unit for 800 to 1250 square feet. Adjust upward for ceilings above eight feet, heavy sun exposure, a top floor or many windows. Square footage alone under-sizes a room, which is why a proper heat load calculation is worth it on a large or irregular space.
Do DIY mini splits void the warranty?
It depends entirely on the wording. Systems built for homeowner installation, such as the MRCOOL DIY lines and the Albott Easy DIY series, state that self-installation is permitted. Many other units ship with a pre-charged line set as a convenience but still require professional installation for warranty registration, and their coverage does not pay labor. Read the warranty terms and get written confirmation from the manufacturer before you install anything yourself.
What voltage mini split do I need?
Choose 115V for a small room when a usable receptacle already exists, which covers most 9000 and 12000 BTU units. Choose 208-230V for anything above about 15000 BTU, which requires a dedicated circuit, a disconnect, correct wire gauge and often a permit and an electrician. The 230V route is where most of the money saved by going DIY gets spent.
Conclusion
The best DIY mini split systems for homeowners in 2026 split into two clear groups. If you want a genuinely tool-free install, the MRCOOL DIY Star line is the only option where the refrigerant loop is sealed at the factory and the fittings need nothing but a hex wrench. If you want the widest selection of sizes and features at 115V without hiring a technician for the refrigerant work, the Albott Easy DIY series is the practical second choice.
For everything else on this list, treat the pre-charged line set as a convenience rather than a DIY guarantee and read the warranty language first. The Senville LETO is the strongest all-round buy on owner satisfaction, the DELLA Optima wins on efficiency and cold climate heating, and the Senville AURA carries one of the longest compressor warranty terms here. Size by heat load, keep the electrical scope honest, and set aside a contingency for the rescue call you hope never makes.
