A bench vise is the one tool that turns a hobby garage into a shop. A power saw, drill or grinder will happily cut a finger off without complaining, but a bolted-down vise holds the workpiece rigid so the cut stays straight and nothing gets kicked back at you.

After spending weeks comparing jaw widths, throat depths, spindle designs and body materials across ten of the most-reviewed bench vises on the market, our pick for the best bench vise for metalworking is the Forward DT08125A 5 Inch Heavy Duty Bench Vise. It carries the highest rating in this roundup at 4.8 across just under 2000 reviews, it clamps at 5,500 lbs, and it comes with three jaw sets so you are not hunting for a separate pipe vise or V-jaw insert. If your bench is small and your work is light, the VEVOR 6 Inch covers the same ground with a wider jaw. If you want a tool that survives decades of hammering, the Wilton 745 Mechanics Vise is built for that.

What follows is a metalworking-first roundup. We have deliberately excluded drill press vises, woodworking face vises and jewelry-specific vises, because none of them hold up when you put steel to them. We also skipped anything we could not verify specs on. For the deburring and edge work that happens after you unclamp, our bench grinder picks are the companion guide.

Every pick below carries at least one honest drawback, because a list where everything is perfect is a sales page, not a buying guide.

Top 3 Bench Vise Picks for Metalworking in 2026

Our overall winner, the value pick and the home shop favourite sit at the top because they cover the widest range of real shop work. Everything else on the list earns its place by doing one thing unusually well.

The 10 Best Bench Vises for Metalworking at a Glance in 2026

Two numbers do most of the deciding here. Jaw width tells you how big a workpiece you can actually grip, and throat depth tells you how much of that workpiece the vise can swallow before it hits the body. Clamping force is the number sellers shout about, but a 5,500 lb clamp on a properly bolted vise already exceeds anything a hand can resist.

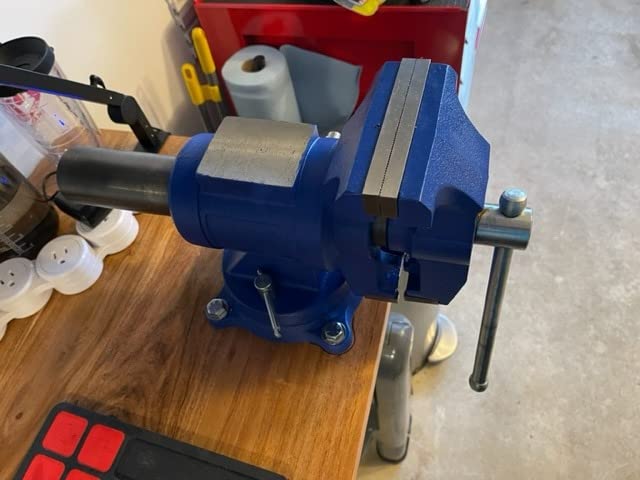

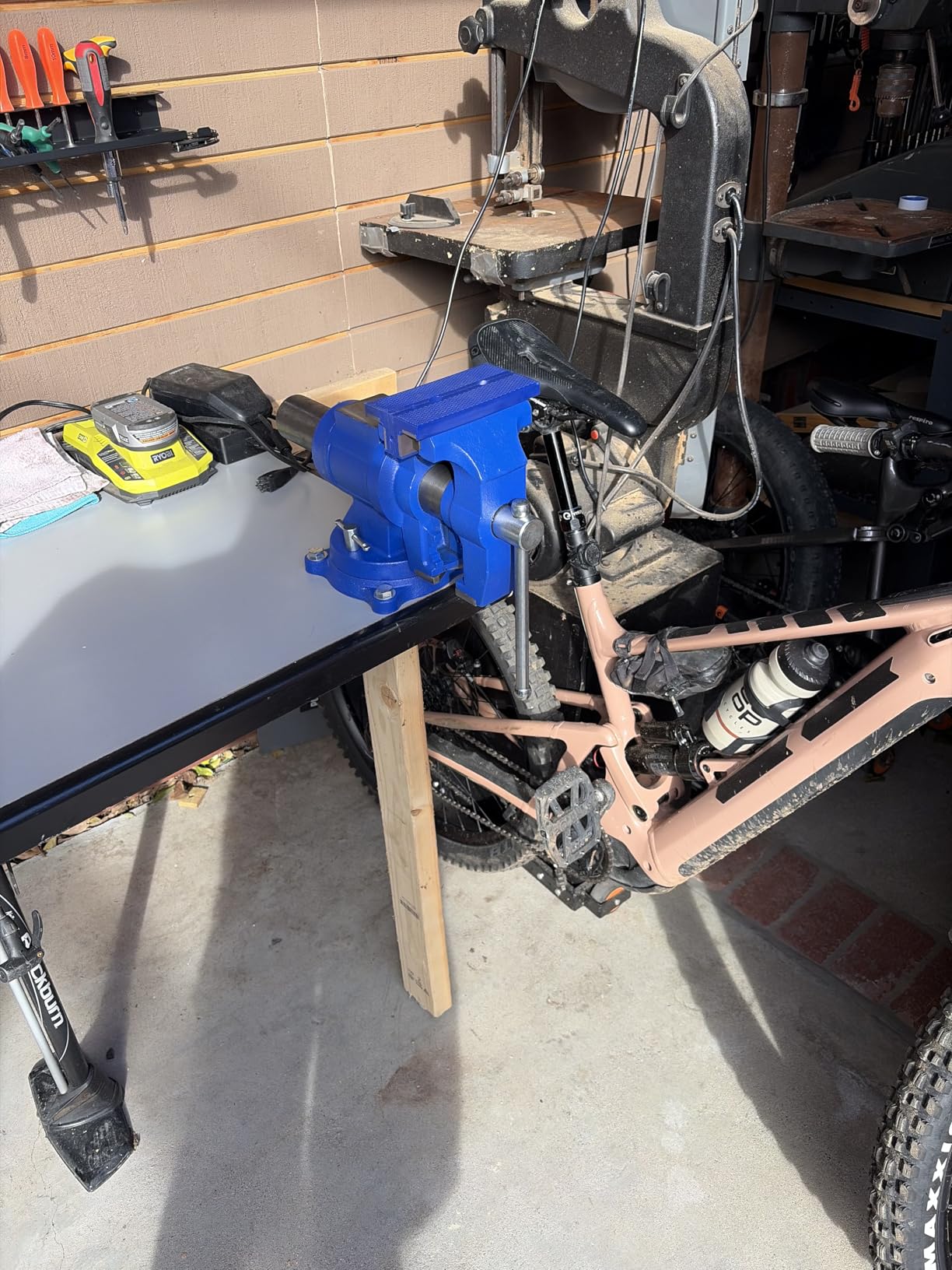

1. Forward DT08125A 5 Inch Heavy Duty Bench Vise – Best All-Round Metalworking Vise

Best for: general metalworking, mixed shop jobs and anyone who does not want to buy accessories separately. This is the vise we would put on our own bench without hesitating.

Three jaw sets come with the vise. You get replaceable top jaws with a microgroove tooth pattern, cast-in pipe jaws covering roughly 3/5 inch through 2-1/2 inch round material, and a pair of V-jaws. Having all three sets in the box is the reason this model beats most of the field on versatility.

The body is 60,000 PSI ductile iron weighing 33 lbs, and the clamping force is rated at 5,500 lbs. Owners report that the casting dents rather than cracks when something gets hit wrong, which is exactly the failure mode you want in a shop tool. The lead screw is smooth and holds position without drifting under load.

The 360-degree rotating front head is the feature that separates it from budget vises. You can clamp a part at 45 degrees or hold it flat for surface grinding without swapping the vise around on the bench. Swivel range like this is usually reserved for the professional end of the market.

When this vise is the right call

Buy this one if you cut, drill, file, bend and grind in the same session, which is the normal rhythm of most metalworking. Three jaw sets means you are never hunting for the right insert at 11pm. It also suits small production work where holding several part sizes matters more than heavy striking.

When this vise will disappoint you

The factory jaw teeth are aggressive and will mark soft aluminum or finished brass. Fit soft jaw pads for anything that matters cosmetically. The swivel lockdown bolts also need backing out well past a quarter turn before the base will move, which gets old fast if you swivel constantly. If rotation is your main task, look at the IRWIN or PONY two-plane designs instead.

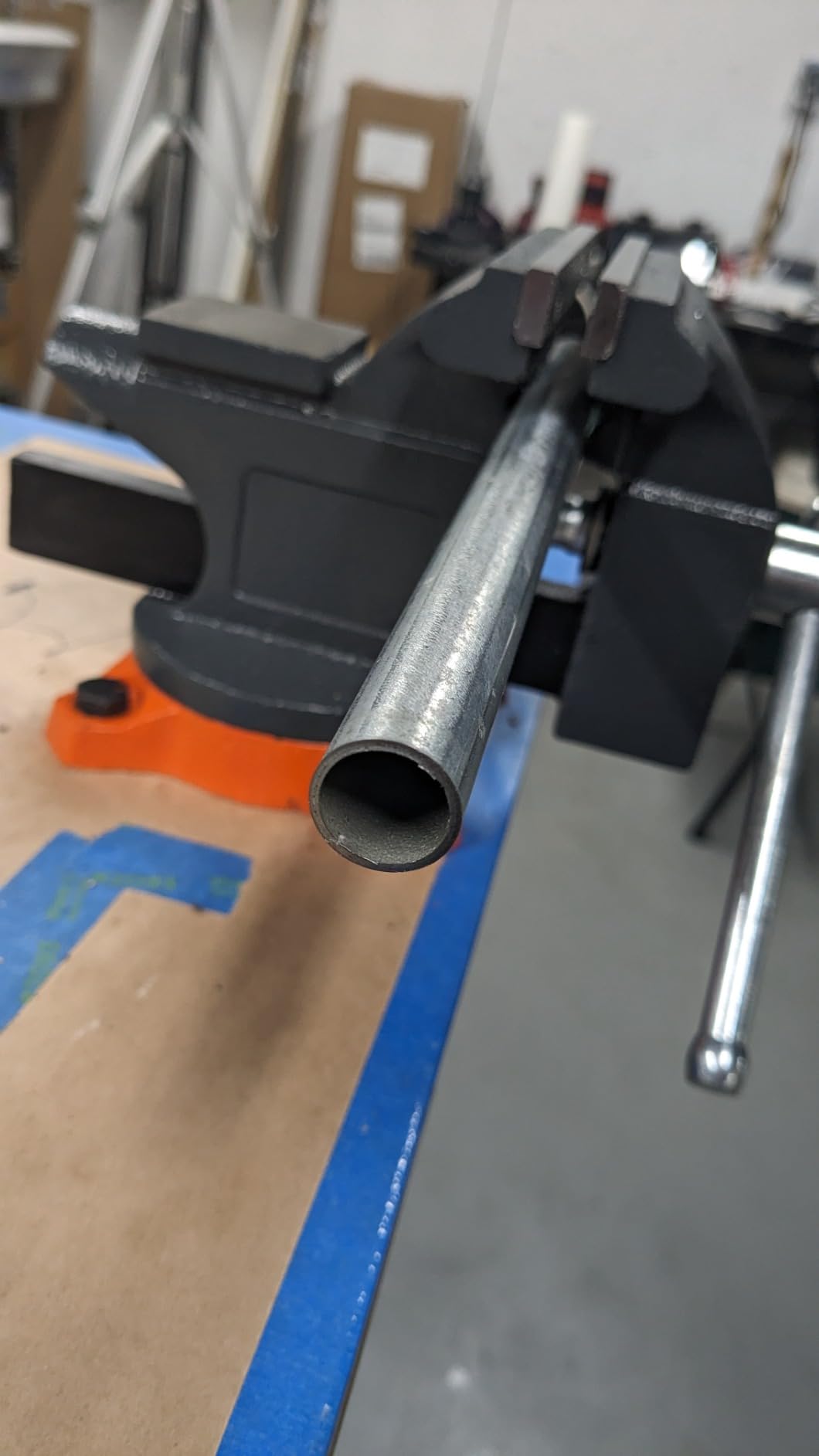

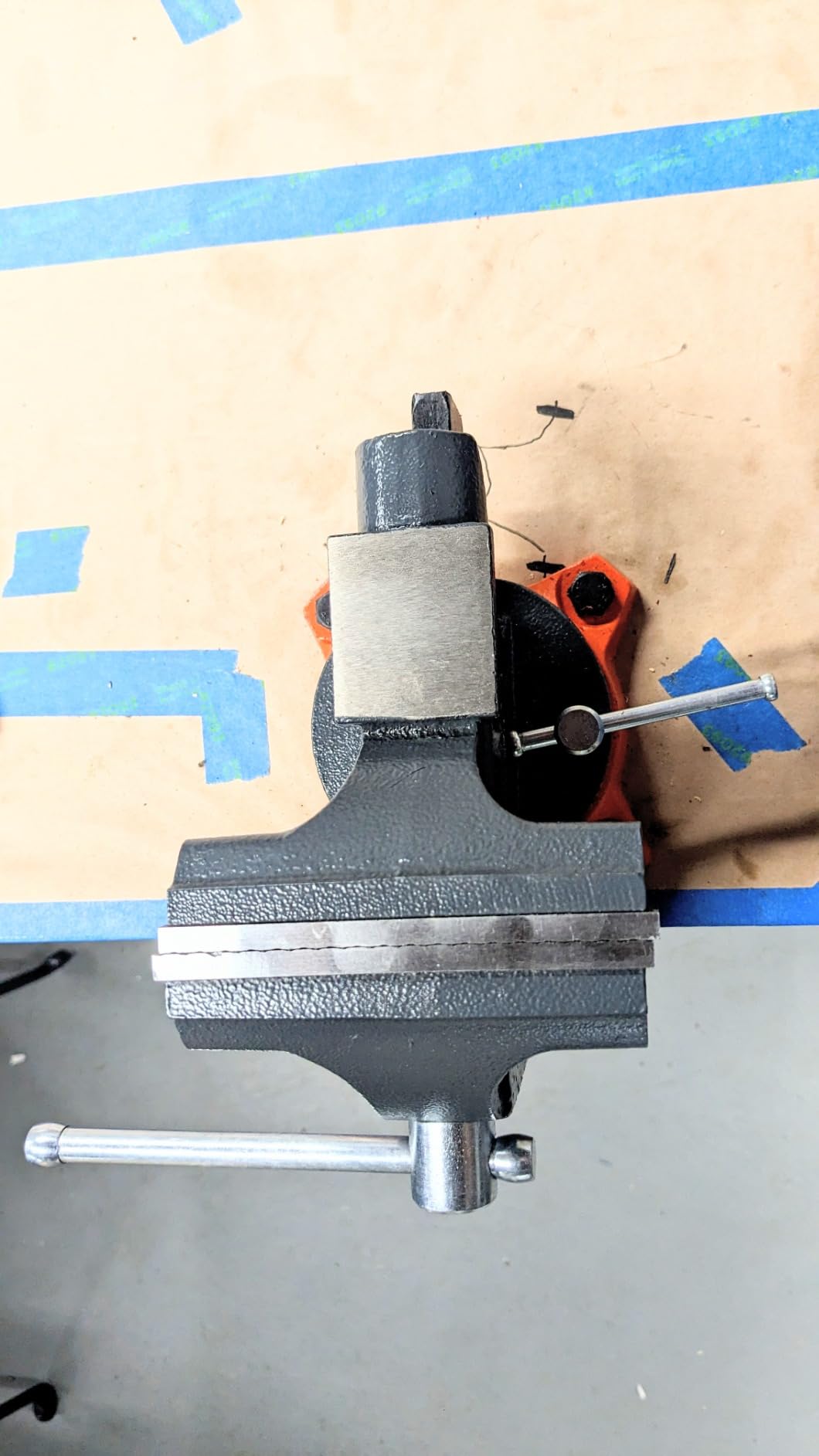

2. VEVOR 6 Inch Bench Vise – Best Value for a Home Shop

Best for: first serious vise purchase, small shops and anyone who needs a wide jaw on a modest budget. A 6 inch jaw is the most common answer on metalworking forums for a reason.

Most machinists land on the same heuristic, quoted often on the Practical Machinist forum: a 4 inch bench vise is worth its weight in silver, and a 6 inch bench vise is worth its weight in lead. The practical meaning is that jaw width sets the largest diameter of round bar you can clamp flat, so anything above 4 inches opens up work you simply cannot do on a smaller vise.

The casting is 60,000 PSI ductile iron with a rust-proof powder coat, and the jaw plates are replaceable serrated carbon steel rather than machined into the body. Rated clamping force is 4,496 lbs, or 20 kN, which is plenty once the vise is bolted to a solid bench. The 3.5 inch throat is deeper than anything else in the 5 and 6 inch jaw class here, so long bar reaches further into the jaws than on most competitors.

One detail that impressed us: the kit includes magnetic soft jaw pads. Those slip over the serrated plates and stop the vise from chewing up finished work, which is a problem the VEVOR solves that most competitors do not.

What you give up for the savings

When the jaws close completely, the two halves do not meet perfectly flush, though they stay parallel. Also plan to buy your own hardware, because the supplied M10 bolts are too short for a typical bench and there are no locking washers in the kit. The 2.9 by 3 inch anvil is fine for light tapping and grinding but will not take heavy hammer blows.

Who should skip it

If you plan to hammer hot steel on a daily basis, move up to the Forward 8 Inch. If you want a warranty behind the casting, this one has none. The bigger question is your bench, because a 25 lb vise on a flimsy table will rock no matter how good the vise is.

3. Wilton 11105 General Purpose Bench Vise – Best for Home Shops With a Lifetime Warranty

Best for: weekend metalworkers and hobby machinists who want a name they can trust and a warranty that does not expire. Wilton is the brand most often named first when metalworkers ask each other which vise to buy.

The body is 30,000 PSI gray cast iron at 27 lbs, with a 5 inch jaw, 4 inch maximum opening and a 2-1/2 inch throat. The swivel base rotates 120 degrees with double lockdowns, which is more than most competing vises at this level offer. Hardened steel jaw inserts are replaceable and machine serrated, so when they wear you replace the insert rather than the vise.

The lifetime warranty against manufacturing defects is the quiet advantage here. Cast iron is not the toughest material in this roundup, and it is not the strongest, but a warranty that covers a cracked casting years down the line changes how a shop budget thinks about the purchase.

Mounting is refreshingly simple. The three-bolt pattern lines up with common bench layouts, and the castings and screw hold up well as long as the vise is bolted to something solid. Set it up once and forget about it.

Why it keeps showing up on shop lists

Because it does the boring 90 percent of metalworking correctly. Filing, deburring, threading taps, holding drill bits, gripping sheet metal for cutting. None of that is glamorous, and all of it is what a home shop does on a Saturday afternoon. The large anvil surface also covers light striking and light forming.

The honest drawbacks

Jaw serration on some units is uneven, which marks workpieces, and the two jaw halves do not align perfectly at full close. Both problems largely disappear with soft jaw covers. The 120 degree swivel is also less range than most buyers expect from a modern vise, and gray cast iron is not the choice for a shop that hammers work all day.

4. Forward 8 Inch Heavy Duty Bench Vise – Best for Heavy Striking and Bending

Best for: shops that bend, form and strike metal, and for anyone tired of a vise that shudders when hit with a ball-peen hammer. At 8,800 lbs of clamping force this is the strongest vise in the roundup.

The body is 60,000 PSI ductile iron reinforced with a steel U-channel bar, which is where the hammering strength comes from. Long-term owners report the vise still working like new after years of abuse, with the iron denting instead of cracking. The 5 TPI lead screw pitch is a good compromise between speed and power, and the swivel lock holds firmly once set.

Replaceable machinist top jaws and built-in grooved pipe jaws cover round material from 1 inch to 2-3/4 inch diameter. Rubber washers on the handle stop it slipping and reduce the ringing noise that lighter vises produce.

The mounting pattern is asymmetric three-hole, which lets you mount the vise facing forward or backward. That is genuinely useful when you need to reach a long part in vertically with the jaws positioned away from the bench edge.

Where it earns its place

Bending and forming over the anvil, holding heavy work for drilling, and gripping large diameter bar are all jobs a 5 inch vise struggles with. An 8 inch jaw changes what fits in the shop overnight, and the extra clamping force stops thin material from deforming as you tighten.

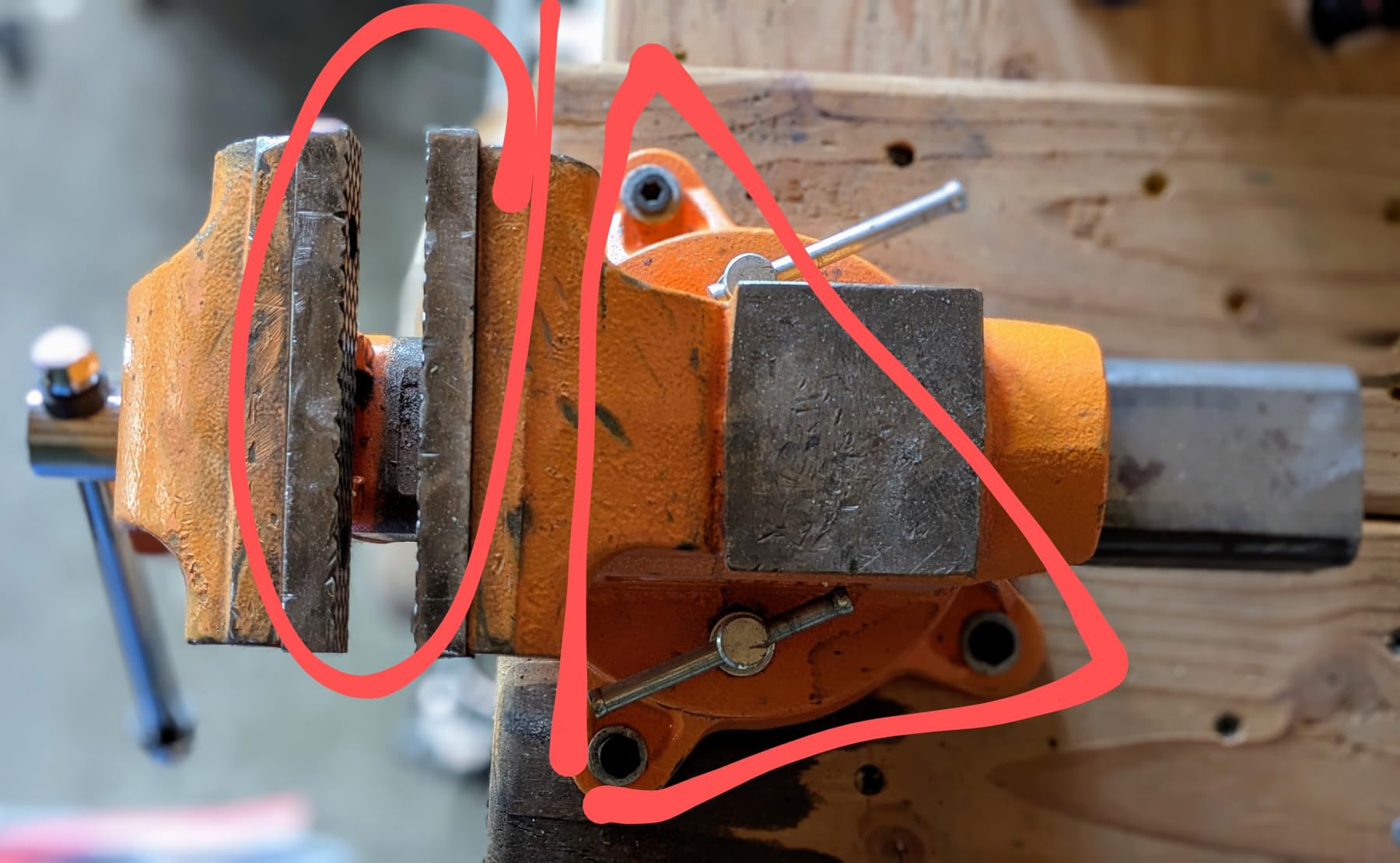

What to watch out for

The swivel base sits on serrations, so the lockdown bolts need backing out well before it will rotate. If you swivel constantly, that friction adds up. The jaw teeth are also very aggressive, and a 33 lb-plus class vise on a light bench will need reinforcement underneath before you start hammering.

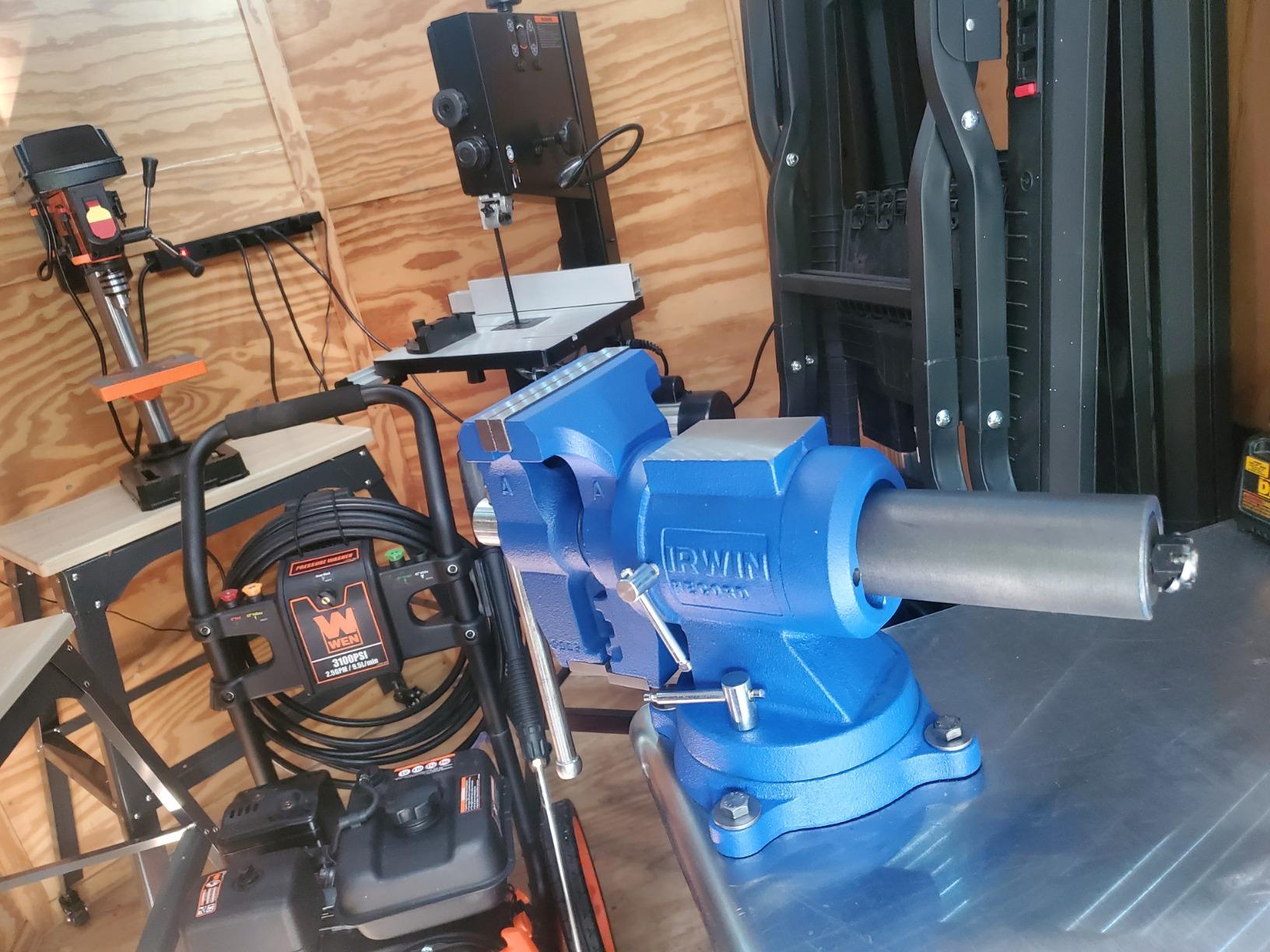

5. IRWIN Multi-Purpose 5 Inch Bench Vise – Best for Pipe, Tube and Two-Plane Work

Best for: plumbers, HVAC technicians, frame builders and anyone cutting tube or pipe. No other vise in this roundup swings in two axes or carries a gripper that rotates with the part.

The head rotates horizontally and vertically, so you can bring a pipe up to a vertical position or lay a bracket flat without unbolting anything. The rotating pipe jaws turn with the work, meaning the grip stays square on a round tube instead of fighting the clamp. That combination is rare outside machinist-grade vises.

At 33.1 lbs of cast iron, this is a solidly built body, and several owners describe the casting quality as noticeably better finished than lower priced alternatives. One owner reports a decade of abuse with the jaws still square. The fused steel handle makes adjustment quick, and the incorporated anvil keeps the vise steady while you work.

Plenty of shops would rank this first for pipe work on capability alone. The versatility is genuine, not marketing.

Best use cases

Cutting and threading pipe, holding tube for welding fit-up, gripping long bar for sawing, and any job where the workpiece needs to be at an awkward angle. If your work is more automotive or structural than precision, the forgiveness of a heavy casting works in your favour.

Where it falls short

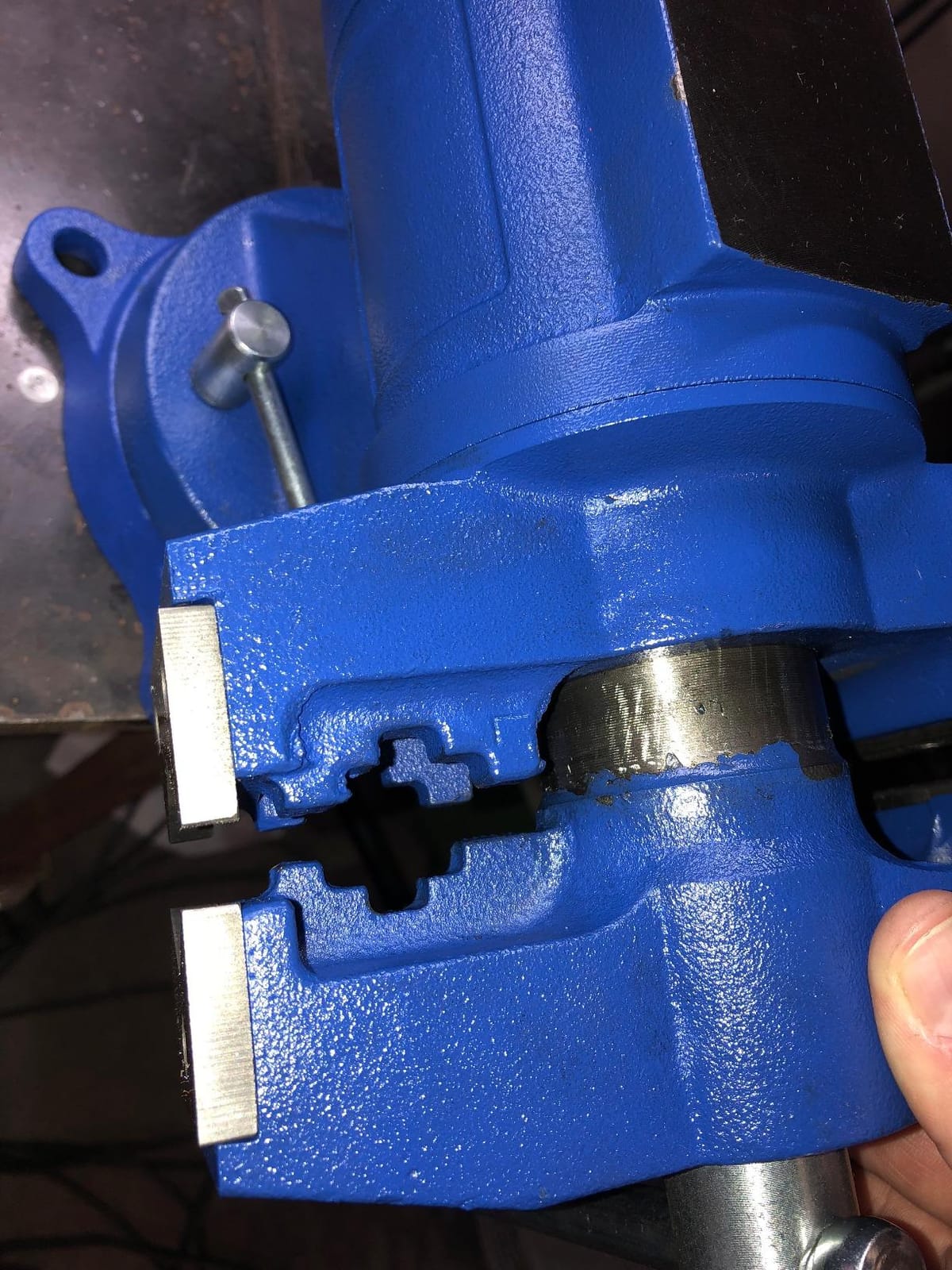

The machined steel pipe clamp has limited depth because the blue casting obstructs deeper insertion, and rotating the vise on its second axis recovers most of that function. The action is also described by some owners as a little sloppy next to a true machinist vise, and clamping hard enough to thread can leave a faint dent in the workpiece.

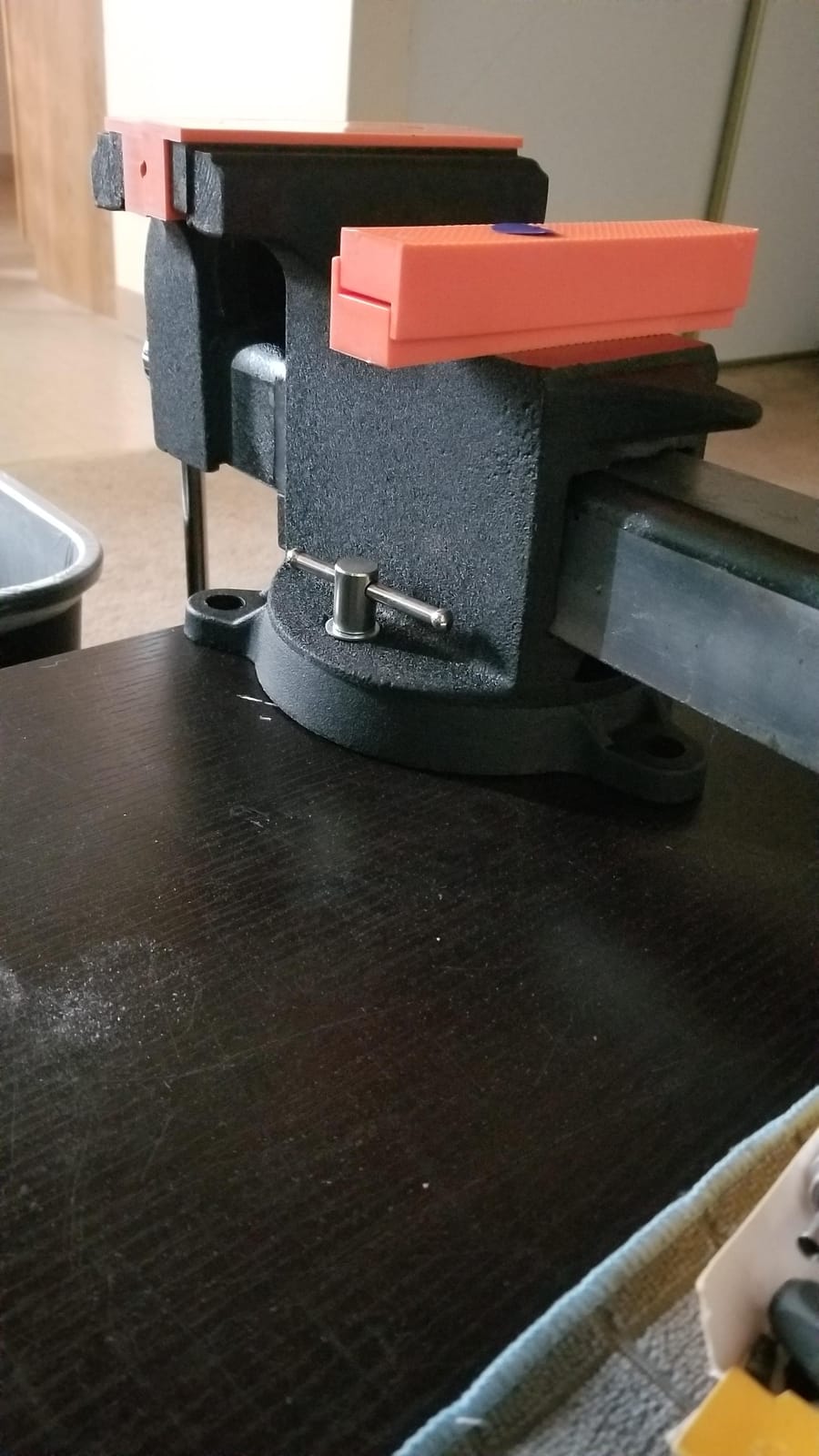

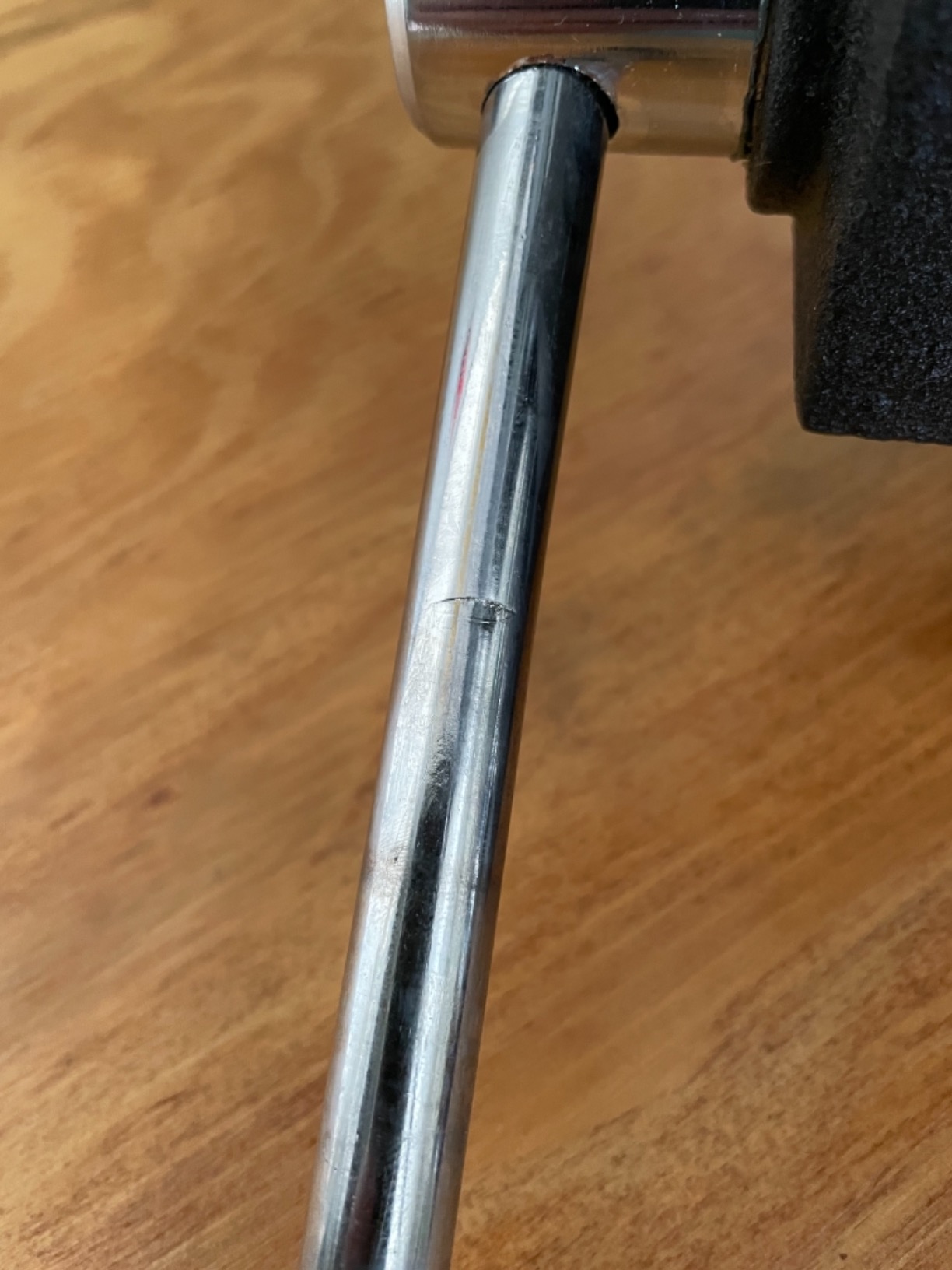

6. Yost 905-AS 5 Inch Bench Vise – Best for a Small or Light Bench

Best for: a first shop with a modest bench, or anyone who wants cast steel shock resistance without carrying a 40 lb vise. Cast steel is a different failure mode from cast iron, and it matters.

That difference is the whole argument. Cast iron is rigid and strong in compression but brittle in shock, so it cracks. Cast steel is tougher and absorbs impact, which is why this body is 24 lbs rather than 33 but still handles work that would chip a lighter iron casting. The 5 inch nominal jaw with pipe capacity from 1/2 inch to 1-1/2 inch covers most hobby and repair work.

The 360-degree swivel base has a lock lever on each side, which is a real convenience when you are repositioning constantly. The main screw is covered by a protective bar so it does not get dinged. Jaws align cleanly and the acme spindle runs smoothly once it is greased.

Yost publishes replacement lead screws and nuts as spare parts, and that is worth more than people realise. A seized screw on a sealed unit is a dead vise, and this one can be rebuilt.

Where it fits best

A four foot bench, a garage wall bench, a small apartment workshop. If you are worried about overwhelming a lighter bench, this is a sensible middle ground. It is also a good match for a mixed hobby workload of filing, threading, gripping and light forming.

Honest limits

The anvil surface dents and marks easily under hammering, so treat it as a holding surface, not a striking surface. The screw can bind near full extension and has no stop, meaning it can back all the way out. The stated jaw load also limits heavy pressing work. Grease the spindle threads on arrival, which several owners say transforms the feel.

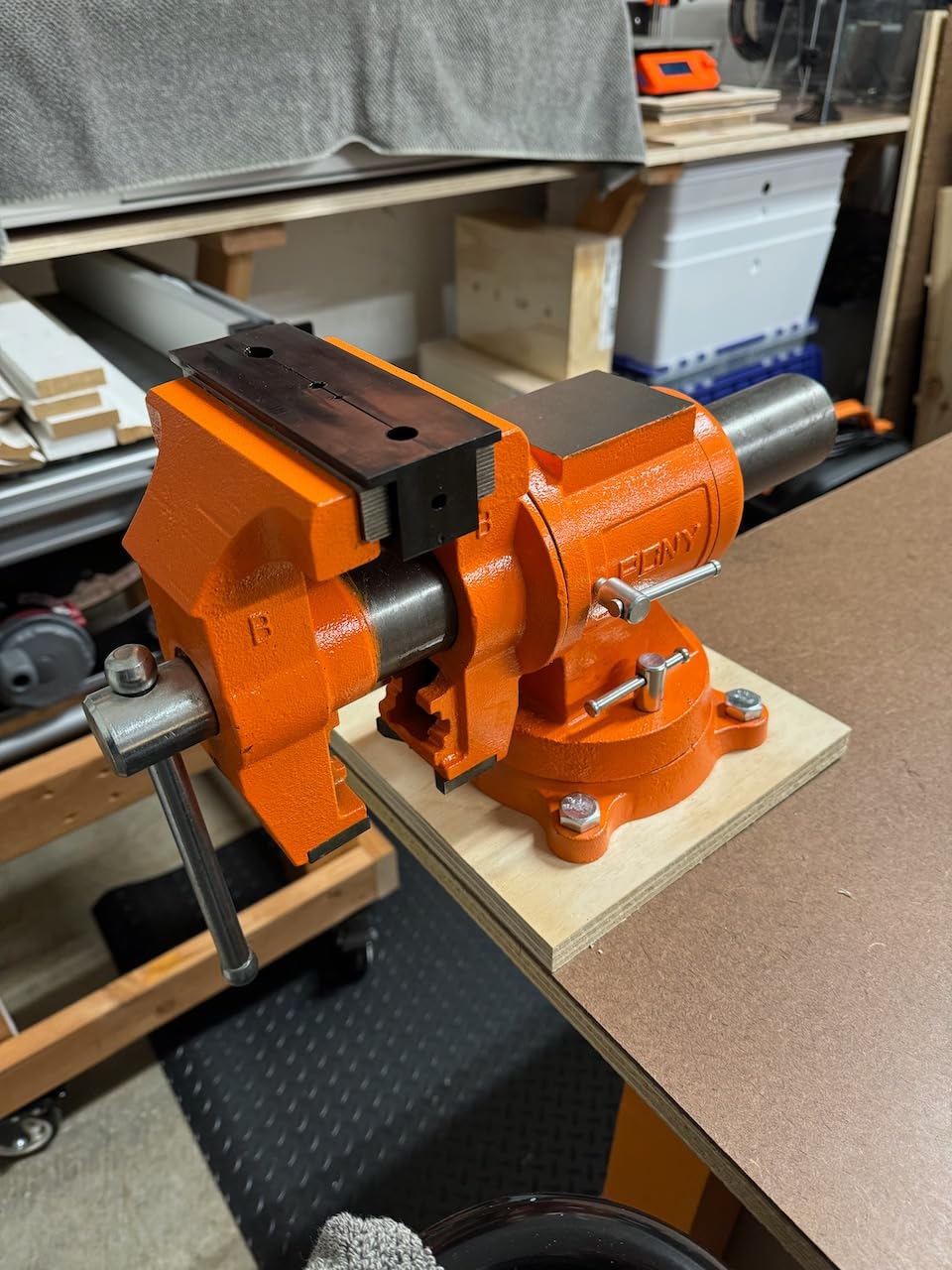

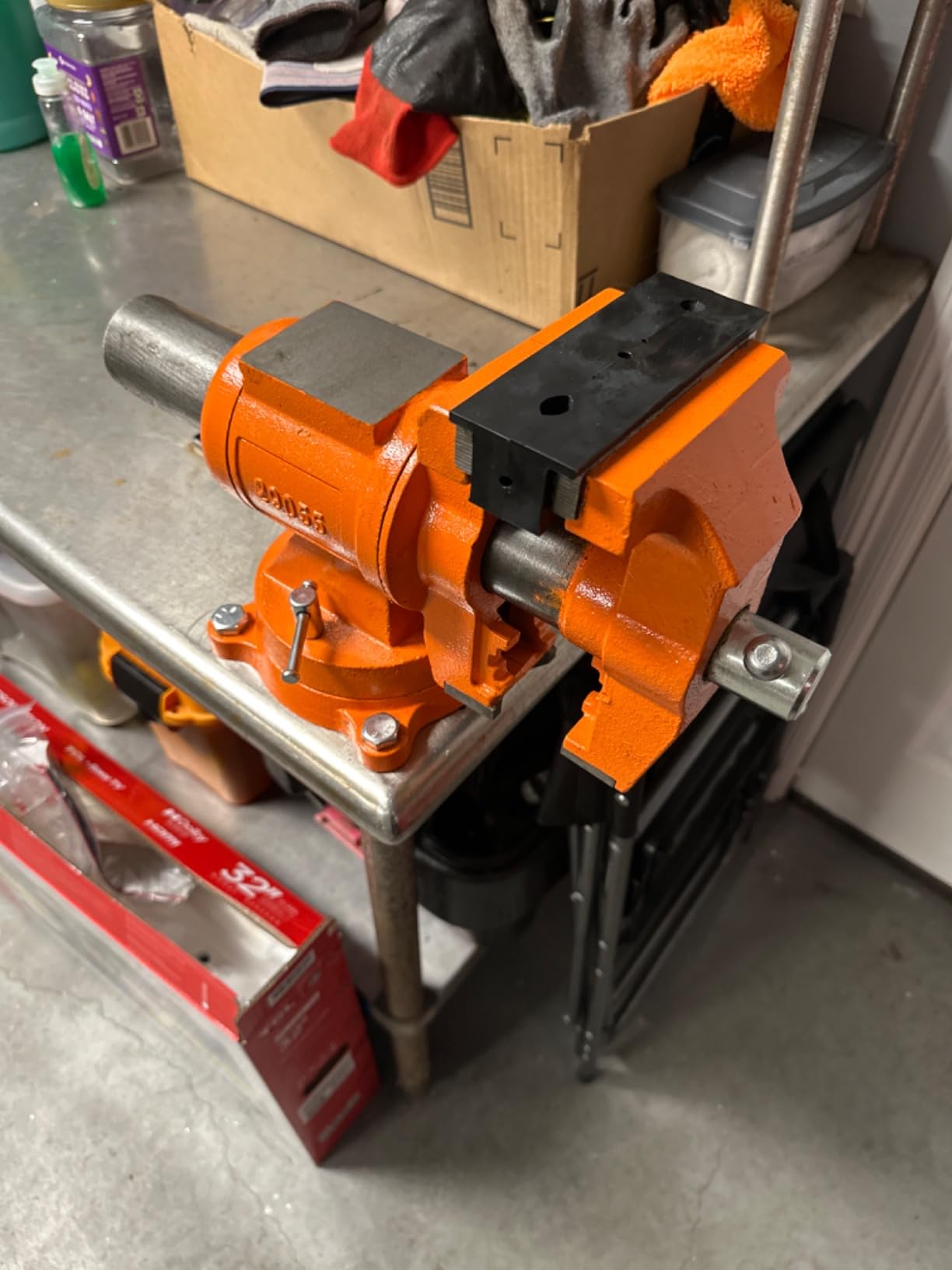

7. PONY 5 Inch Heavy Duty Bench Vise – Best for Two-Plane 360 Degree Swivel

Best for: angle work and fabrication where you need the workpiece vertical one minute and horizontal the next. The two-plane swivel is the headline feature, and unlike a simple base swivel it moves the head as well.

Most 360-degree vises rotate the whole assembly. This one also swings the head, so you can bring a part up to a vertical position for tapping or drilling without re-clamping. The cold-formed steel channel beams over the screws protect the mechanism from stray hammer blows and dropped tools, which is a real longevity feature.

Clamping force is rated at 5,512 lbs on a 5 inch jaw, with a 2-5/8 inch throat and a 5 inch opening. Permanent pipe jaws and large forming horns are cast into the body, so you have a V support for bending without buying inserts.

A pair of soft jaw pads is included, which is worth more than it sounds because the hardened serrated faces will mark finished work otherwise.

Best for specific jobs

Angle grinding, drilling into a part held at 90 degrees, bending round bar on the forming horns and any clamping where a single-axis swivel leaves you at the wrong angle. It handles all of that with one set of hardware.

What to know before buying

The anvil surface is only about 3-5/32 inch by 2-9/16 inch, which limits it to light striking, so pick a different vise if forming is your main task. This listing also carries a smaller review base than the rest of the roundup, so the long-term consensus picture is thinner. The 4.6 rating sits just below the leaders.

8. HFS 5 Inch Bench Vise Desktop Clamp – Budget Pick for Light Hobby Work

Best for: a first vise, a small desk, or occasional light work where a heavy bolted vise would be overkill. It is the entry-level way to get a real bench vise with a swivel base and an anvil.

The body is cast steel with replaceable hardened forged steel jaws, and the base locks in two directions for a double-locking 360-degree swivel. A large flat anvil top handles light hammering and shaping, and the power-serrated jaws give a secure grip on small stock.

At 16 lbs it is a different category of tool from the 33 to 45 lb vises above it. It fits a small bench or a portable setup, and it is the one to try if you are unsure whether a vise is something you will use.

Its review count is the highest in this roundup, which tells you a lot of people have bought one and shared an opinion. The consensus is that the promised function is delivered at a modest outlay.

Where it does the job

Clamping small bar, holding drill bits, light filing and grinding, and general hobby metalworking on a compact bench. If your work rarely needs more than light pressure, the 5 inch jaw is adequate.

Why it scores lowest here

At 4.4 with a wider spread of ratings than the rest of the field, the feedback is more mixed. Sixteen pounds of cast steel is simply less rigid under hammering than the 24 to 45 lb vises listed here, and it shifts under real load. It is a desktop clamp, not a heavy bench vise, and it is not a place to press or strike hard.

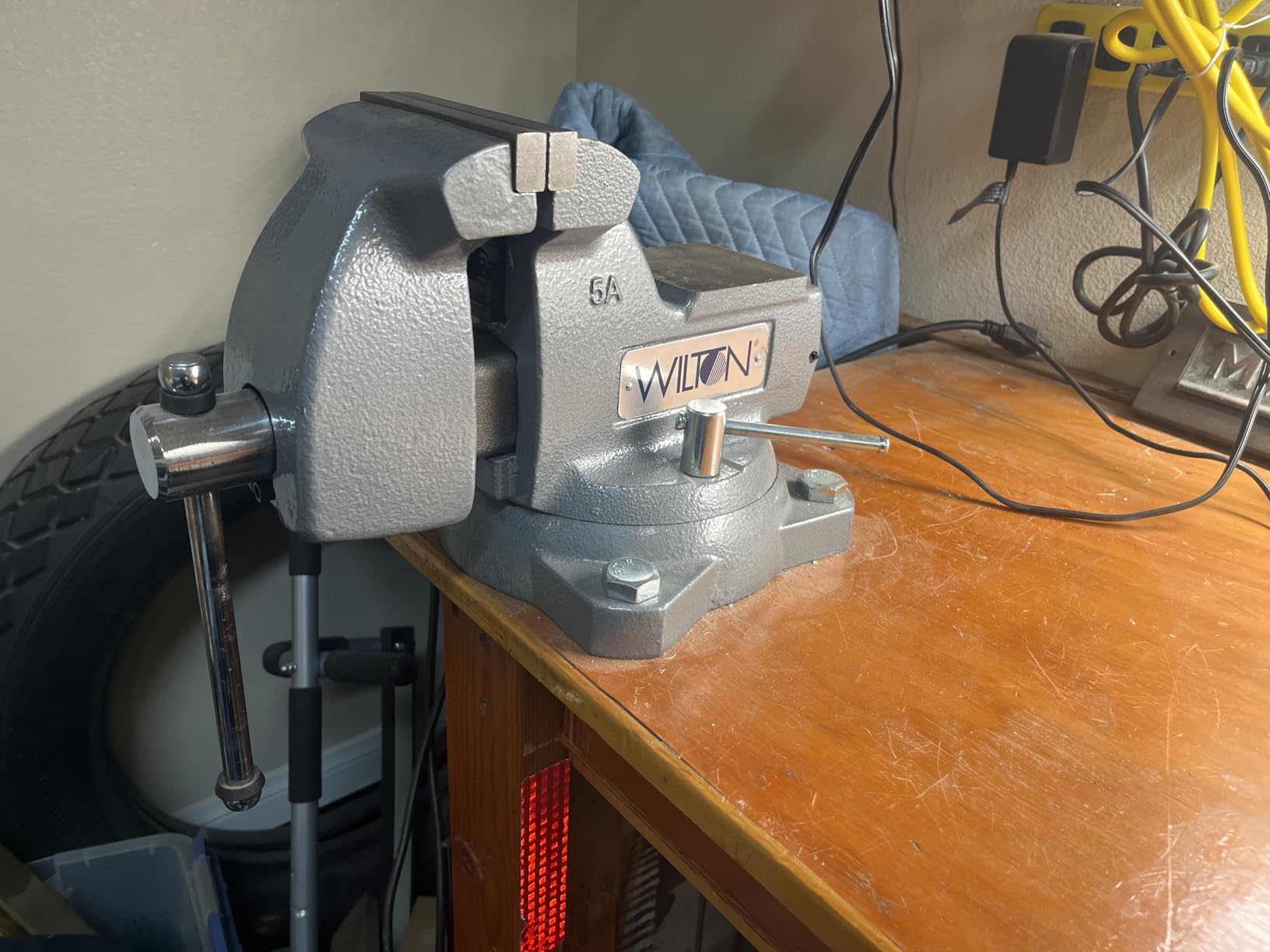

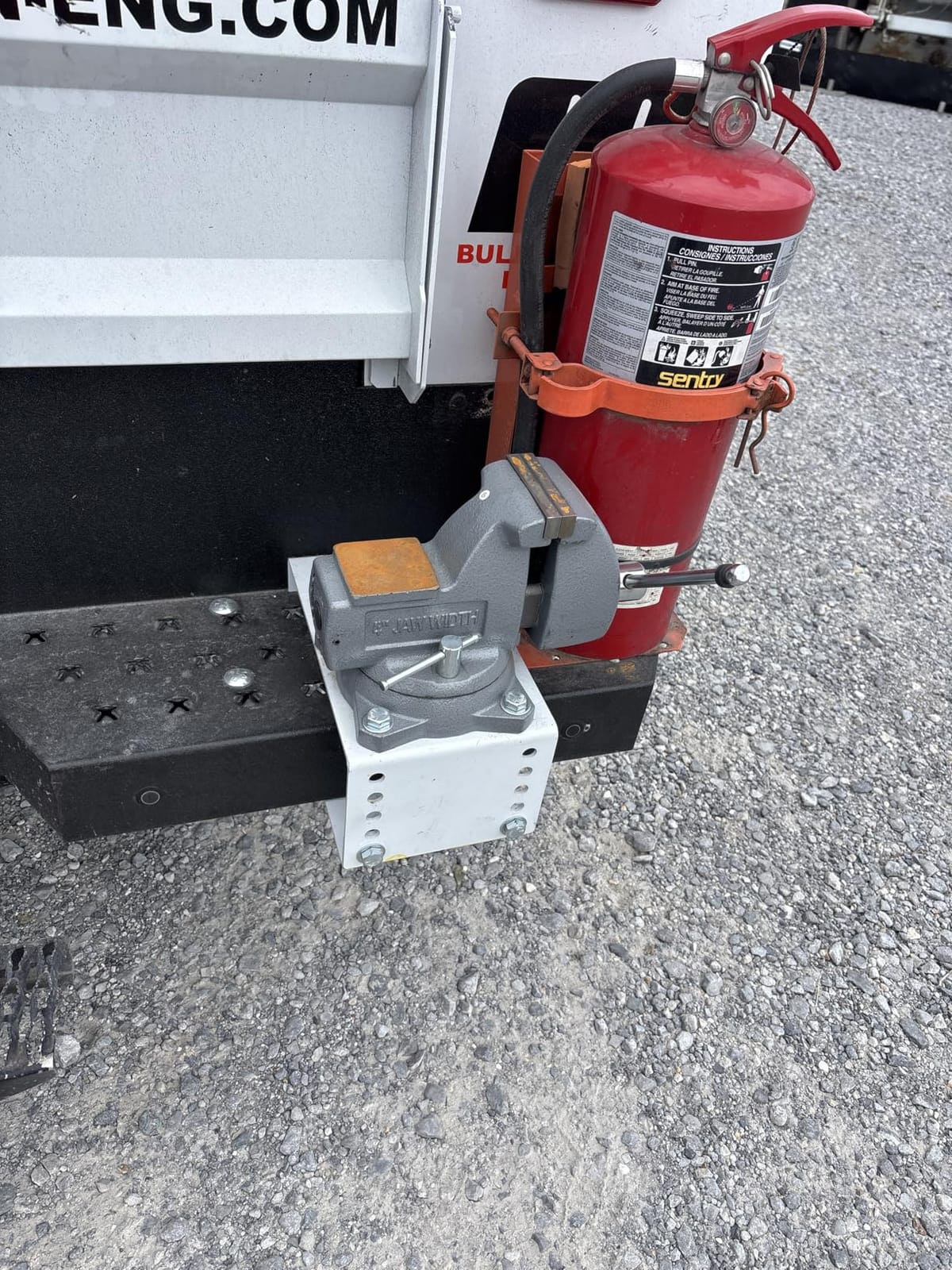

9. Wilton 745 Mechanics Bench Vise – Best for Shops That Want One Vise for Life

Best for: a shop that already has a serious bench and intends to do serious metalworking. At 45.6 lbs this is the heaviest and most rigid vise in the roundup, and rigidity is what a mechanic-grade vise is actually for.

The 3-3/4 inch throat is the deepest of the 5 inch jaw vises listed, so long bar reaches further in before it hits the body. The body is 30,000 PSI gray cast iron on a ductile iron swivel base that rotates 360 degrees with double lockdowns, and the fully enclosed spindle and nut keep grease in and dirt out, which is the single best thing you can do for long screw life.

Replaceable hardened steel top and pipe jaws mean wear is an insert swap, and the powder coat finish resists the scratches that come from a working shop. Owners report years of trouble-free service and recommend removing and regreasing the mechanism on arrival.

That arrival note is worth repeating. Some examples arrive with debris in the joints and threads and little or no grease in the screw, and a few owners report jaws slightly out of parallel that a small dressing fixes. Take twenty minutes with a brush and grease before first use.

Why mechanics choose this one

Mass. When you hit a part with a hammer or press on the handle, a heavy rigid body does not move, and that is what keeps the work accurate. The enclosed spindle is the second reason, because exposed screws seize and enclosed ones do not. The lifetime warranty is the third.

What we would flag

This vise needs a substantial bench and serious bolts, and it is not suited to a flimsy table. Phillips-head fasteners on the jaws are a serviceability annoyance where hex would be better, and there is no stamped model number on the body, which can complicate warranty service. One reviewer also found the mounting hole diameter smaller than the published drawing.

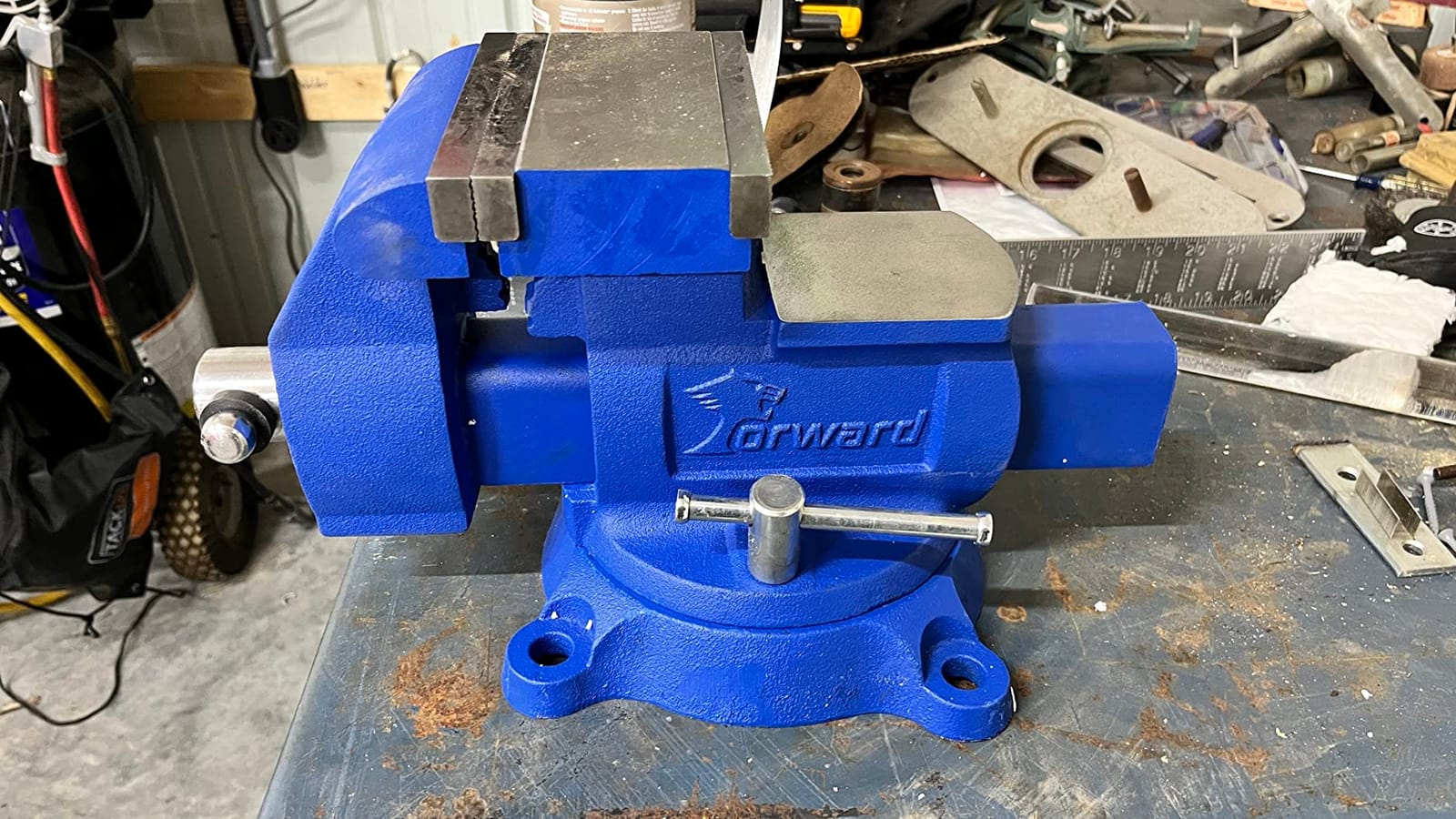

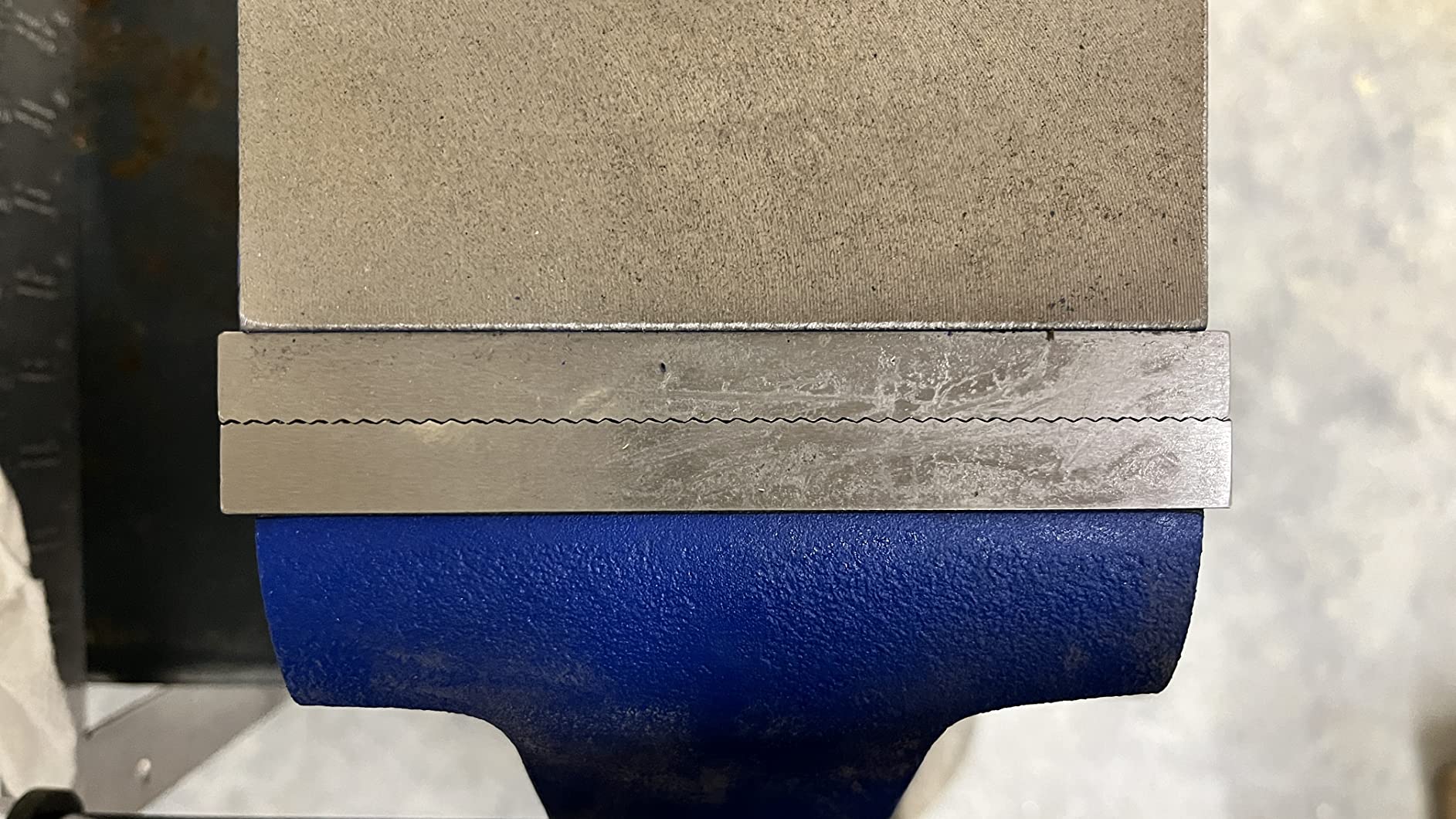

10. Forward CR50A 5.5 Inch Bench Vise – Best for Anvil and Pipe Work

Best for: mixed shops that need real clamping force and a genuine anvil without moving to a 6 or 8 inch frame. At 7,700 lbs it is the second strongest vise here, behind only the Forward 8 Inch.

The 5.5 inch jaw with a 6 inch opening is an unusual and useful combination. You get an opening wider than the jaw itself, which means you can clamp a workpiece with more wrap than most vises of this size, and the 3.1 inch throat swallows longer bar than anything else in the 5 inch class. Built-in pipe jaws cover 1/2 inch through 3-1/2 inch diameter, the widest pipe range in the roundup.

The body is 60,000 PSI ductile iron, described as more durable and pliable than ordinary cast iron, and it carries a large reinforced anvil for grinding, cutting and tapping. Two sets of jaws come standard: replaceable flat jaws with slot jaws, plus the built-in pipe jaws.

This model sits near the top of its category in search demand, which usually tracks with how many shops buy one for daily work rather than occasional use.

Best for anvil and pipe tasks

Tapping, light striking, grinding flat work against the anvil face, and holding round bar and pipe across a wide diameter range. If you fabricate brackets and frames from tube, the 3-1/2 inch pipe capacity removes a separate pipe vise from the shopping list.

Where it gives something up

The 210-degree swivel is less working range than the full 360-degree bases on the HFS, PONY, VEVOR and IRWIN models in this list, and if you regularly work at odd angles you will feel that. You also get two jaw sets rather than three, with no V-jaws, so plan on buying soft jaw pads for finished work.

How to Choose a Bench Vise for Metalworking in 2026

Jaw width is the first number to settle. It is the width of the gripping surface, and it dictates the largest diameter of round bar you can clamp flat. A 3 inch jaw is a hobby vise. A 4 inch jaw is the minimum sensible size for metalwork. A 5 inch jaw is the all-rounder and covers most home shops. A 6 inch jaw handles real structural work, and 8 inch belongs to professional shops that bend and form heavy material. Most enthusiasts we checked treat the jump from 5 to 6 inch as the one size upgrade they would never go back from.

Throat depth matters just as much and is almost always oversold in favour of jaw width. It is how far a workpiece reaches back from the jaw face before it hits the body, and it determines whether the vise can hold a long bar without leaving only a sliver gripped. On the Wilton 745 the throat is 3-3/4 inch, which is why it handles long bar better than a comparable 5 inch vise with a 2-1/2 inch throat.

Body material determines how the vise fails, which is the thing no competitor explains. Gray cast iron is rigid and stable but brittle in shock, so it can crack if you hammer it or drop something on it. Ductile iron is tougher and pliant, so it dents rather than cracking, which is why the Forward models and the VEVOR are forgiving. Cast steel absorbs shock best of the three but is heavier for the same strength. Forged steel is a different category entirely and resists breakage, but none of the vises in this roundup are drop-forged. The common question on metalworking forums about which alloy to use maps onto exactly this decision.

Swivel range is the feature that gets overlooked. A fixed vise forces you to reposition the work or the bench. A swivel base rotates the whole vise and needs a double lockdown so it cannot walk under load. A rotating head swings the jaws themselves, which lets you bring a part to a vertical position without re-clamping. Look for 360 degrees if you do angle work, and 120 to 210 degrees if your work is mostly flat.

Jaw type is where most buyers get caught. Serrated or cross-cut faces grip hard but mark soft metal and finished surfaces. Pipe jaws hold round material without crushing it. V-jaws are for odd shapes. Soft jaws, which are aluminum or copper inserts that bolt over the serrated plates, are the single best upgrade for anyone doing visible work, and two of the picks here include a pair. For the time you spend holding work at the bench, our bench cushion picks cover the other half of that equation.

Finally, mounting beats clamping for metal. A clamp-on vise is fine for a light bench and light work, but a bolt-on vise with three proper bolts transmits shock load into the bench frame instead of into the bench top, which is what keeps a heavy vise rigid when you hit it. Make sure the bench itself is heavy enough to carry the vise, and consider a milling vise as a separate purchase. Hobby metalworkers discussing milling vises on forums treat them as a distinct category, with dedicated low-profile pull-down designs for mill work rather than general bench duty.

One safety note worth stating plainly. Do not over-tighten. The screw is not the weak point, the workpiece is, and hardened steel gripped too hard can be dented or even cracked by the jaws. Never use a vise to hold a pressure vessel, and always clamp the workpiece so the force goes into the anvil or a solid surface rather than across the part.

Frequently Asked Questions

Our Top Bench Vise Pick for Metalworking in 2026

After comparing ten of the most-reviewed bench vises on the market, the Forward DT08125A is our pick for the best bench vise for metalworking in 2026. It has the highest rating and the largest review base in the group, it includes three jaw sets in the box, and its 360-degree rotating head is a feature normally reserved for the professional end of the market.

If your bench is light or your budget is tight, the VEVOR 6 Inch gives you a 6 inch jaw and magnetic soft jaw pads in the box. If you hammer for a living, go to the Forward 8 Inch for its 8,800 lb clamping force and reinforced ductile iron body. And if your bench can carry 45 lbs of cast iron, the Wilton 745 Mechanics Vise is the last bench vise most shops need to buy.

Whichever you choose, bolt it to something heavy, grease the spindle before first use, and pick up a set of soft jaw pads before you clamp anything you want to keep looking new.
